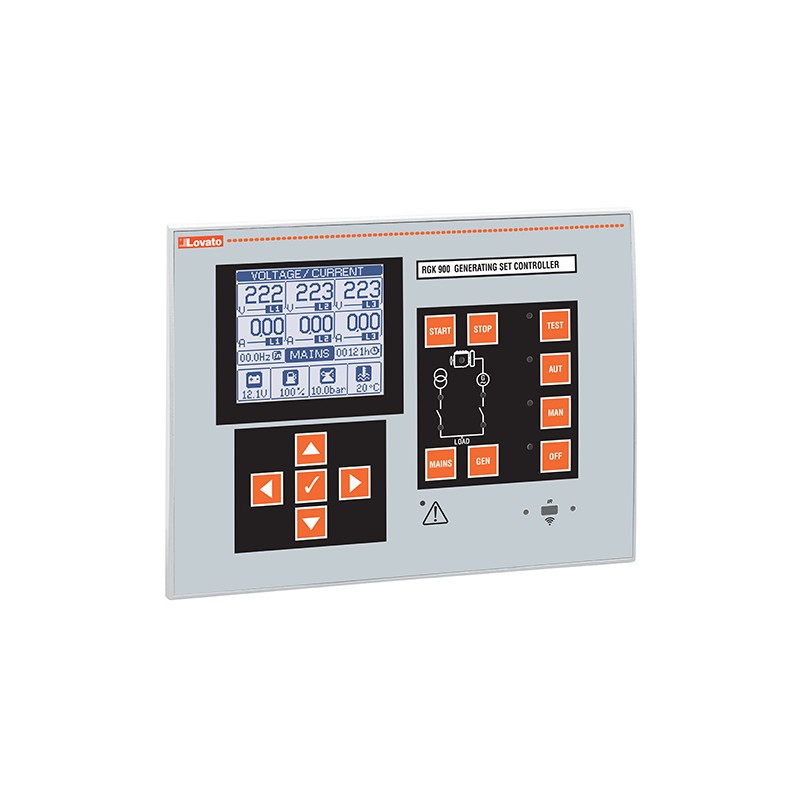

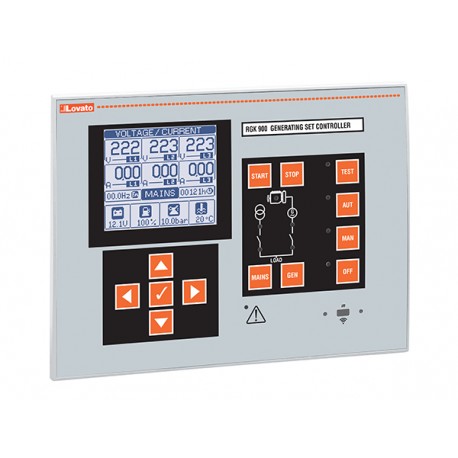

RGK900 LOVATO MAINS-GENERATOR PARALLELING CONTROL. 12/24VDC, GRAPHIC LCD, WITH RS485 PORT, USB/OPTICAL AND W..
RGK900
LOVATO ELECTRIC
MAINS-GENERATOR PARALLELING CONTROL. 12/24VDC, GRAPHIC LCD, WITH RS485 PORT, USB/OPTICAL AND WI-FI POINT PROGRAMMING PORT ON FRONT. EXPANDABLE WITH EXP... MODULES
MAINS-GEN PARALLELING CONTROLLER
Mains-generator paralleling control. 12/24VDC, graphic LCD, with RS485 port, USB/optical and Wi-Fi point programming port on front. Expandable with EXP... modules
Low-voltage switchgear and control gear > Energy management controller
Controllers for generator sets and motors
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Related products
▲Best sellers
▲More info
▲RGK900
Mains-generator paralleling control. 12/24VDC, graphic LCD, with RS485 port, USB/optical and Wi-Fi point programming port on front. Expandable with EXP... modules
Technical specifications
- Type of product:
- Engine and generator controllers
- Functions:
- Paralleling controllers
- Front dimension [mm]:
- 240x180
- Display:
- Graphic
- Max I/O number:
- 12+9 up to 20+17 with EXP modules
| Order code | RGK900 |
|---|---|
| Weight [g] | 1040 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 315X190X060 |
| Volume [cm³] | 3591 |
| Bar code [EAN13] | 8013975205211 |
| HS Code | 85389091 |
2804.87 £
| Feature Name | Feature Value |
|---|---|
| Voltage type (supply voltage) (EF002991) | DC |
| Application (EF000041) | Other |
| Supply voltage (EF004127) | 7 V |
| With communication interface RS-485 (EF007314) | Yes |
| With communication interface RS-232 (EF007312) | No |
| With communication interface Ethernet (EF007309) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for CAN (EF003053) | Yes |
| Number of phases (EF000351) | 3 |
| Depth (EF000049) | 45 mm |
| Height (EF000040) | 180 mm |
| Width (EF000008) | 240 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| RGK900 RGK900 27-Engine-and-generator-controllers-27-January-2018_EN.pdf | 1 Mbytes |
|
