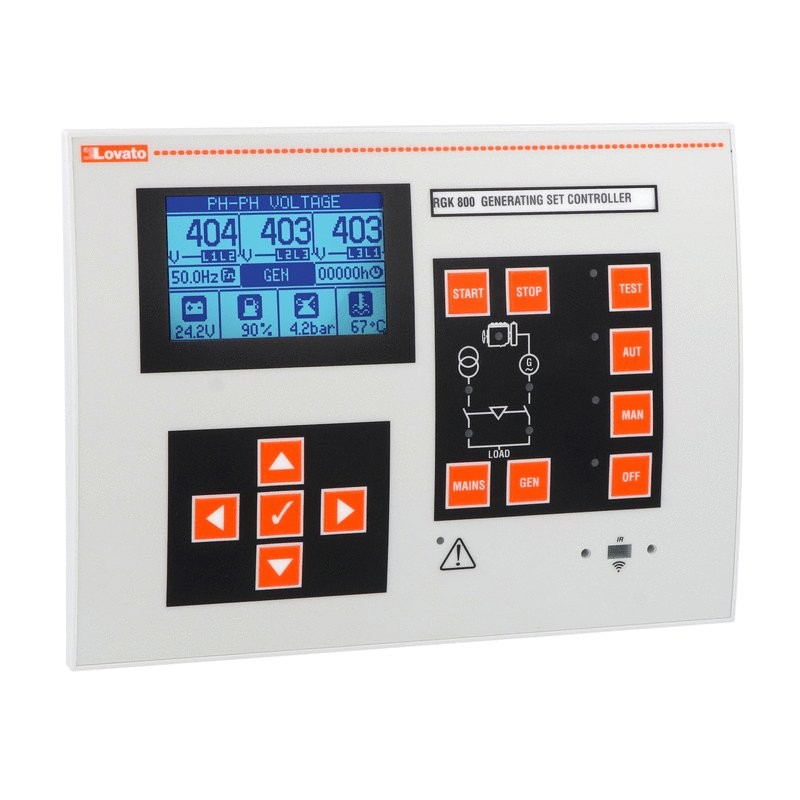

RGK800 LOVATO AUTOMATIC MAINS FAILURE (AMF) GEN-SET CONTROLLER, 12/24VDC, GRAPHIC LCD WITH RS485 PORT AND US..
RGK800
LOVATO ELECTRIC
AUTOMATIC MAINS FAILURE (AMF) GEN-SET CONTROLLER, 12/24VDC, GRAPHIC LCD WITH RS485 PORT AND USB/OPTICAL AND WI-FI POINT PROGRAMMING PORT ON FRONT, CANBUS PORT, IP65. EXPANDIBLE WITH EXP… MODULES
AMF GEN-SET CONTROLLER
Automatic mains failure (AMF) gen-set controller, 12/24VDC, with RS485 port and USB/optical and Wi-Fi point programming port on front, Canbus port, IP65, expandable with EXP... modules
GENERATOR SET CONTROLLERS WITH AUTOMATIC NETWORK CONTROL (AMF) FUNCTION
Low-voltage switchgear and control gear > Energy management controller
Controllers for generator sets and motors
Brand new product in its original packaging covered by the warranties and certifications provided by LOVATO ELECTRIC
Related products
▲Best sellers
▲More info
▲RGK800
Automatic mains failure (AMF) gen-set controller, 12/24VDC, with RS485 port and USB/optical and Wi-Fi point programming port on front, Canbus port, IP65, expandable with EXP... modules
Technical specifications
- Type of product:
- Engine and generator controllers
- Functions:
- Automatic mains failure (AMF)
- Front dimension [mm]:
- 240x180
- Display:
- Graphic
- Max I/O number:
- 8+9 up to 14+15 with EXP modules
| Order code | RGK800 |
|---|---|
| Weight [g] | 960 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 315X190X060 |
| Volume [cm³] | 3591 |
| Bar code [EAN13] | 8013975191903 |
| HS Code | 85389091 |
595.93 £
| Feature Name | Feature Value |
|---|---|
| Voltage type (supply voltage) (EF002991) | DC |
| Application (EF000041) | Other |
| Supply voltage (EF004127) | 7 V |
| With communication interface RS-485 (EF007314) | Yes |
| With communication interface RS-232 (EF007312) | No |
| With communication interface Ethernet (EF007309) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for CAN (EF003053) | Yes |
| Number of phases (EF000351) | 3 |
| Depth (EF000049) | 45 mm |
| Height (EF000040) | 180 mm |
| Width (EF000008) | 240 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LOVATO EN.pdf | 99 Mbytes |
|
| RGK800 RGK800 27-Engine-and-generator-controllers-27-January-2018_EN.pdf | 1 Mbytes |
|
