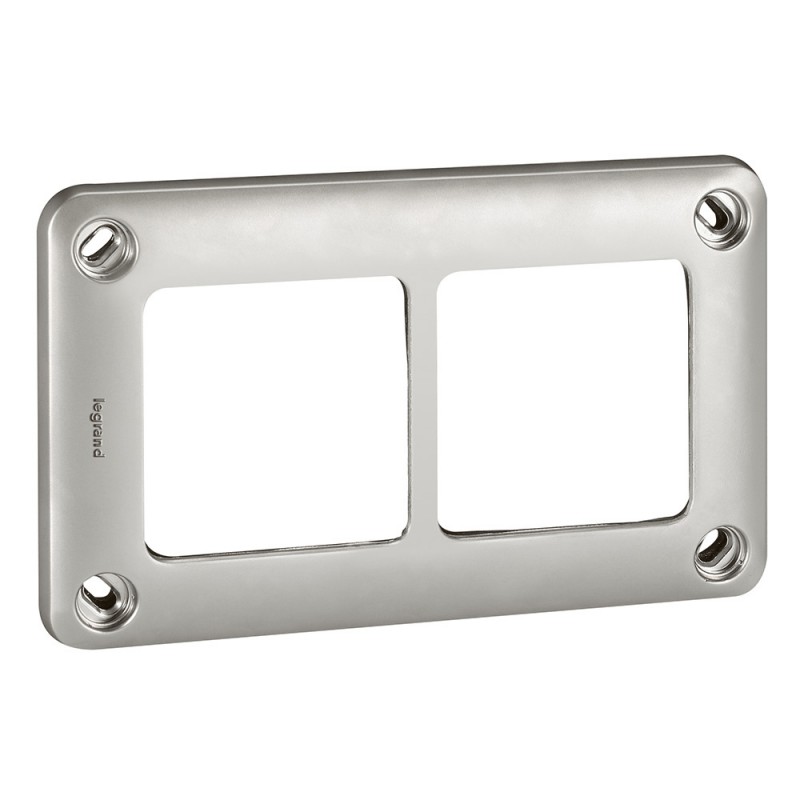

077852 LEGRAND SL-PLATE 2ELE
077852
LEGRAND
SL-PLATE 2ELE
Plate Soliroc - 2 gang - 110 x 181 mm - horizontal or vertical - IK10
Plate- IK10 from the Soliroc series - 2 elements - 110x181mm
Domestic switching devices > Cover frame for domestic switching devices
SOLIROCO MECHANISMS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)1.189
- Weight (g)298.00
- 2-gang plate
- 110 x 181 mm
- Horizontal or vertical mounting
- 71 mm fixing centres
- Suitable for public buildings, unsupervised passageways, car parks, communal areas in buildings
- High resistance to IK 10 impacts and humidity
- 4 fixing points by plugging the plate directly on the wall and 4 blanking plates to be force-mounted on the plate (can only be removed by drilling)
- Mechanisms supplied complete with cover plates
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 110 mm |
| Degree of protection (IP) (EF005474) | IP55 |
| Label space/information surface (EF001035) | No |
| Material (EF002169) | Metal |
| Suitable for built-in installation (EF006745) | No |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Screw mounting |
| Material quality (EF001257) | Other |
| Halogen free (EF000025) | Yes |
| Transparent (EF006243) | No |
| Number of modules vertical (module system) (EF009572) | 1 |
| Number of modules horizontal (module system) (EF009571) | 4 |
| Mounting direction (EF003824) | Horizontal and vertical |
| With hinged lid (EF000117) | No |
| Surface protection (EF000139) | Other |
| Number of units vertical (EF008859) | 1 |
| Number of units (EF000074) | 2 |
| Number of units horizontal (EF008858) | 2 |
| Suitable for subfloor installation duct box (EF005864) | No |
| Built-in height (EF000332) | 0 mm |
| With mounting grid (EF012039) | No |
| Suitable for wall duct (EF006572) | No |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK10 |
| Depth (EF000049) | 13.5 mm |
| Colour (EF000007) | Grey |
| Flush-mounted installation (EF007517) | Yes |
| Width (EF000008) | 181 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 077852 EN_077851.pdf | 689 Kbytes |
 |
