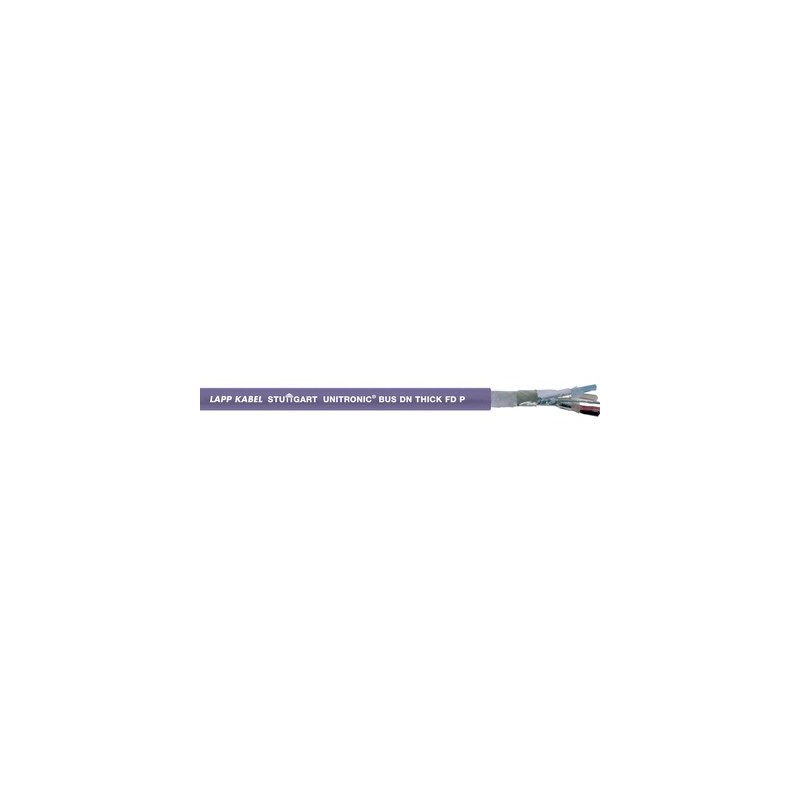

2170344 UNITRONIC BUS DN THICK FD P LAPP UNITRONIC BUS DN THICK FD P View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

2170344 UNITRONIC BUS DN THICK FD P LAPP UNITRONIC BUS DN THICK FD P

2170344

UNITRONIC BUS DN THICK FD P

LAPP

UNITRONIC BUS DN THICK FD P

UNITRONIC® DeviceNet FD THICK+THIN

More details


Cables > Data and communication cable

UNITRONIC BUS cabling

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $11.91
Unit price: $11.91

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


DeviceNet connects sensors, drives and PLCs. Based on technology. UL/CSA-approved. Temperature range from -40°C bis +80°C

Application range

  • For highly flexible applications
  • DeviceNet™ connects industrial devices e.g. limit switches, photoelectric switches, valve islands, motor starters, drives, PLCs, etc.

Product features

  • Based on proven CAN (Controller Area Network) technology.
  • Permissible cable lengths vary with the data rate and the cable thickness
  • Refer to data sheet for more details
  • PUR (P) Version: Halogene free
    PVC (Y) Version: Flame retardant (UL FT4)
  • UV-resistant (but colour may change after some time)

Norm references / Approvals

  • PUR: UL/CSA-certified (CMX)
  • PVC: UL/CSA CMG 75°C FT4 Sun Res Oil Res, at 2170346 also PLTC

Product Make-up

  • Core insulation: PE
  • Outer sheath of Polyurethan (PUR) or Polyvinylchlorid (PVC)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000830
  • ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000830
  • ETIM 6.0 Class-Description: Data cable

Core identification code

  • Data pair: light blue + white
  • Power supply: red + black

Mutual capacitance

  • (800 Hz): max. 39.8 nF/km

Peak operating voltage

  • 300 V (not for power applications)

Conductor resistance

  • Thick (loop): max. 45 ohm/km
  • Thin (loop): max. 180 ohm/km

Minimum bending radius

  • Fixed installation: 7.5 x outer diameter
  • Flexing: 15 x outer diameter

Test voltage

  • Core/core: 2000 V

Characteristic impedance

  • 120 ohm

Temperature range

  • PUR: -40°C to +80°C
  • PVC: -10°C to +80°C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE LAPP EN.pdf 58 Mbytes
2170344 UNITRONIC BUS DN THICK FD P 2170344 EN_2170344.pdf 201 Kbytes 2170344 UNITRONIC BUS DN THICK FD P 2170344 EN_2170344.pdf
