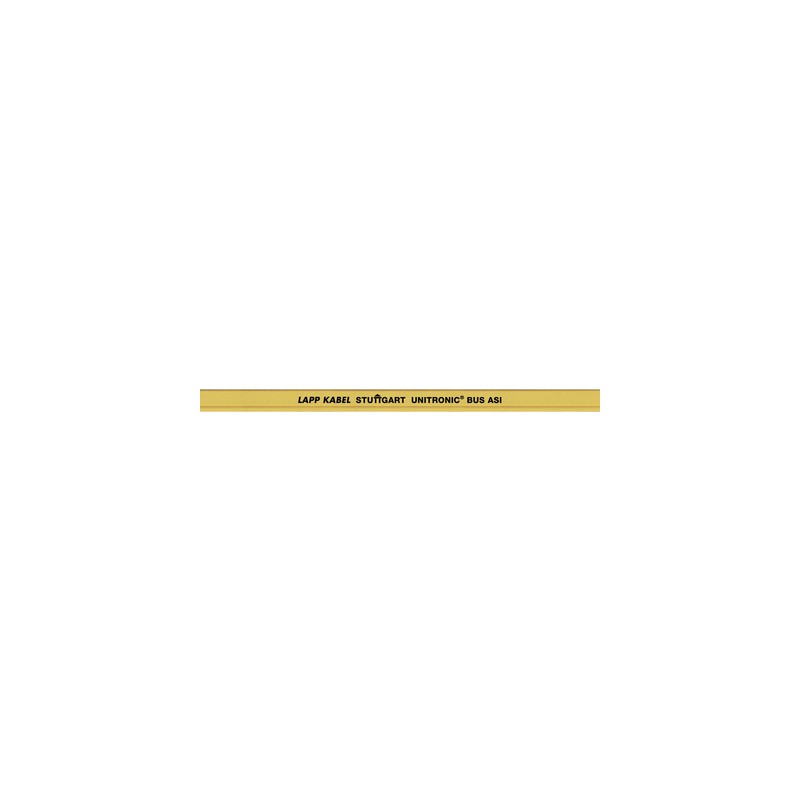

2170231 UNITRONIC BUS ASI (TPE) 2x1,5 BK LAPP AS-INTERFACE cables for networking systems in the field

Benefits

• The new BUS ASI LD 2 x 2.5 (Long Distance) allows even modules located further away to be connected.
  AS-I power supplies can be reduced. The BUS ASI LD is downwards-compatible with version 1.5.
• The rubber versions are halogen-free

Application range

• Communication at sensor/actuator level
• Sensor-/actuator wiring
• For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
• The TPE version has an oil-resistant outer sheath. It is suitable for wet areas, in particular in conjunction with water-soluble cooling lubricants.

Product features

• Data and power are transmitted via an unscreened, geometrically coded two-core flat cable (protection against polarity reversal).
• The conductor is contacted by "piercing technology" within the ASI modules.
• The sensors are connected to the ASI modules (coupling modules) using round cables (connection cables).

Norm references / Approvals

• ASI is standardised Europe-wide in EN 50295 and internationally in IEC 62026-2.
• PVC A version with UL/CSA (CMX) certification
• UL/CSA version: CMG c(UL)us or (UL)CL2 or AWM 300V FT4 certified

Product Make-up

• Conductor: fine-wire tinned-copper strands
• Core insulation: blue and brown
• Outer sheath:
  rubber (G), halogenfree
  thermoplastic elastomers (TPE)
  PVC
• Outer sheath: yellow (RAL 1023), black (RAL 9005), red (RAL 3000)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000830
• ETIM 5.0 Class-Description: Data cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000830
• ETIM 6.0 Class-Description: Data cable

Peak operating voltage

• Yellow: 300 V (not for power applications)
  Black: 300 V (not for power applications)
  Red: 300 V

Conductor resistance

• 1.5 mm²: max. 13.7 Ohm/km
• 2.5 mm²: max. 8.21 Ohm/km

Minimum bending radius

• Fixed installation: 12 mm
• Flexible use 24 mm

Test voltage

• Core/core: 2000 V

Temperature range

• Dependent on outer sheath material:
  PVC: -30°C to +90°C
  Other materials: -40°C to +85°C
• During installation:
  PVC -20 °C to +90 °C
  Other materials:
  -30 °C to +85 °C
