18520099 ÖLFLEX SMART 108 2X1 LAPP ÖLFLEX SMART 108 2X1
18520099
ÖLFLEX SMART 108 2X1
LAPP
1 m.
ÖLFLEX SMART 108 2X1

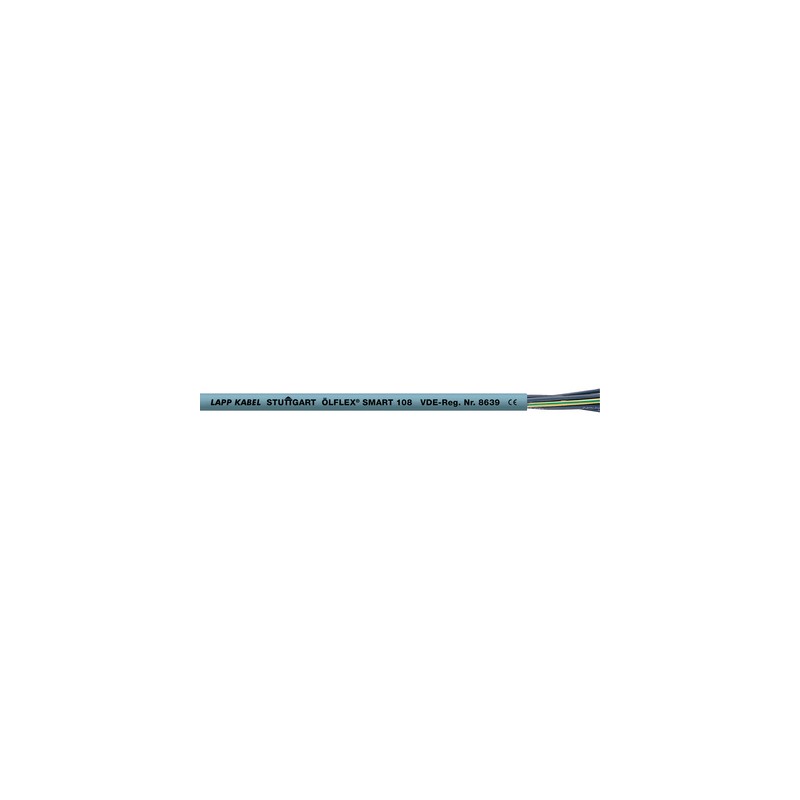

ÖLFLEX® SMART 108
Cables > Power cable less 1 kV, for moving application
ÖLFLEX PVC, numbered cores
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲ÖLFLEX® SMART 108 - VDE-registered PVC control cable, flexible and numbered for various applications, 300/500V, also for YSLY or YY
- CPR: Article number choice under www.lappkabel.com/cpr
- VDE certificate of conformity with
factory surveillance - Only available in standard lengths and standard packagings
Benefits
- SMART: good price/performance ratio – the ÖLFLEX® SMART 108 has everything a flexible control cable needs
- SMART: environmentally friendly – internal sheath layer made from recycled PVC with the same high quality of the TM2 model
Application range
- For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
- Dry or damp rooms that are subject to medium mechanical loads
- Main dimensions available, further dimensions see ÖLFLEX® CLASSIC 110
- For extended applications and individual lengths, see ÖLFLEX® CLASSIC 110
Product features
- Flame-retardant according IEC 60332-1-2
- Good chemical resistance, see catalogue appendix T1
- Oil resistance: see data sheet
Norm references / Approvals
- VDE reg. no. 8639
Product Make-up
- Fine-wire strand made of bare copper wires
- PVC insulation, TI2
- Two-layer PVC outer sheath, TM2; outside silvergrey
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-334
Conductor stranding
- Fine wire according to DIN EN 60228 (VDE 0295), class 5 / IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
