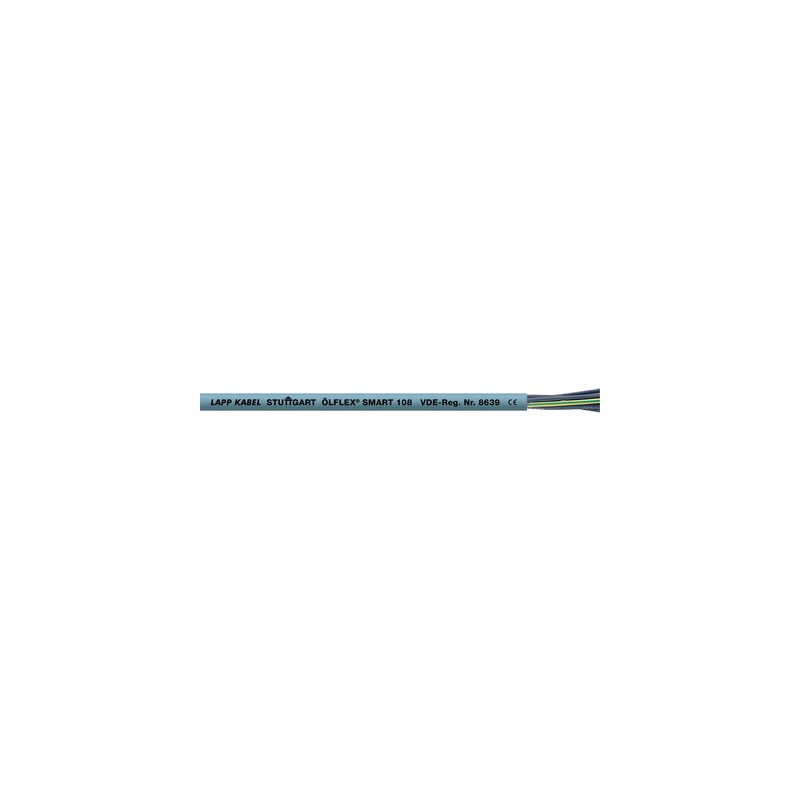

18040099 ÖLFLEX SMART 108 4X0,75 LAPP VDE-registered PVC control cable

Benefits

• SMART: good price/performance ratio – the ÖLFLEX® SMART 108 has everything a flexible control cable needs
• SMART: environmentally friendly – internal sheath layer made from recycled PVC with the same high quality of the TM2 model

Application range

• For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
• Dry or damp rooms that are subject to medium mechanical loads
• Main dimensions available, further dimensions see ÖLFLEX® CLASSIC 110
• For extended applications and individual lengths, see ÖLFLEX® CLASSIC 110

Product features

• Flame-retardant according IEC 60332-1-2
• Good chemical resistance, see catalogue appendix T1
• Oil resistance: see data sheet

Norm references / Approvals

• VDE reg. no. 8639

Product Make-up

• Fine-wire strand made of bare copper wires
• PVC insulation, TI2
• Two-layer PVC outer sheath, TM2; outside silvergrey

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• Black with white numbers acc. to VDE 0293-334

Conductor stranding

• Fine wire according to DIN EN 60228 (VDE 0295), class 5 / IEC 60228 class 5

Minimum bending radius

• Occasional flexing: 15 x outer diameter
• Fixed installation: 4 x outer diameter

Nominal voltage

• U0/U: 300/500 V

Test voltage

• 4000 V

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Temperature range

• Occasional flexing: -5°C to +70°C
• Fixed installation: -40°C to +80°C
