LAPPÖLFLEX PVC, numbered cores17520099 ÖLFLEX SMART 108 2X0,5 LAPP ÖLFLEX SMART 108 2X0,5

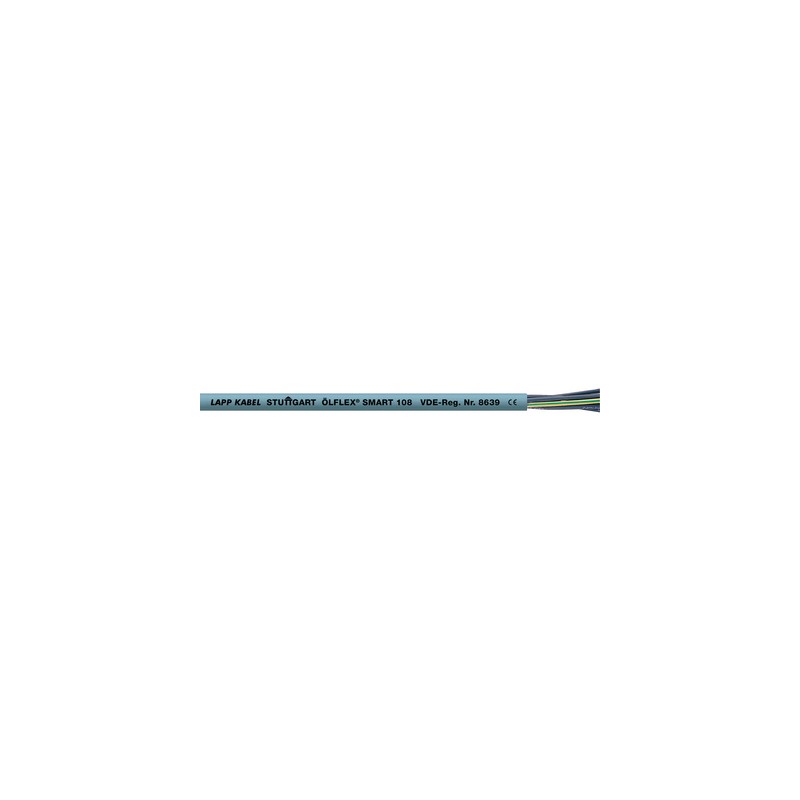

LAPP 17520099 17520099 ÖLFLEX SMART 108 2X0,5 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

17520099 ÖLFLEX SMART 108 2X0,5 LAPP ÖLFLEX SMART 108 2X0,5

Reference: 17520099

Catalog Number: ÖLFLEX SMART 108 2X0,5

Manufacturer: LAPP

Description:

ÖLFLEX SMART 108 2X0,5
ÖLFLEX® SMART 108

Categories:

  • Cables > Power cable less 1 kV, for moving application
  • LAPP > ÖLFLEX PVC, numbered cores

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 0,66 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ÖLFLEX® SMART 108 - VDE-registered PVC control cable, flexible and numbered for various applications, 300/500V, also for YSLY or YY

  • CPR: Article number choice under www.lappkabel.com/cpr
  • VDE certificate of conformity with
    factory surveillance
  • Only available in standard lengths and standard packagings

Benefits

  • SMART: good price/performance ratio – the ÖLFLEX® SMART 108 has everything a flexible control cable needs
  • SMART: environmentally friendly – internal sheath layer made from recycled PVC with the same high quality of the TM2 model

Application range

  • For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
  • Dry or damp rooms that are subject to medium mechanical loads
  • Main dimensions available, further dimensions see ÖLFLEX® CLASSIC 110
  • For extended applications and individual lengths, see ÖLFLEX® CLASSIC 110

Product features

  • Flame-retardant according IEC 60332-1-2
  • Good chemical resistance, see catalogue appendix T1
  • Oil resistance: see data sheet

Norm references / Approvals

  • VDE reg. no. 8639

Product Make-up

  • Fine-wire strand made of bare copper wires
  • PVC insulation, TI2
  • Two-layer PVC outer sheath, TM2; outside silvergrey

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000104
  • ETIM 6.0 Class-Description: Control cable

Core identification code

  • Black with white numbers acc. to VDE 0293-334

Conductor stranding

  • Fine wire according to DIN EN 60228 (VDE 0295), class 5 / IEC 60228 class 5

Minimum bending radius

  • Occasional flexing: 15 x outer diameter
  • Fixed installation: 4 x outer diameter

Nominal voltage

  • U0/U: 300/500 V

Test voltage

  • 4000 V

Protective conductor

  • G = with GN-YE protective conductor
  • X = without protective conductor

Temperature range

  • Occasional flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C

DATASHEET - PDF

Title
Size
Type
17520099 ÖLFLEX SMART 108 2X0,5 17520099 EN_12040099.pdf
356 Kbytes
PDF CATALOGUE LAPP EN
69 Mbytes
