LAPPEPIC rectangular10345100 EPIC MCB-HC 2 B LAPP EPIC MCB-HC 2 B FEMALE MODULE

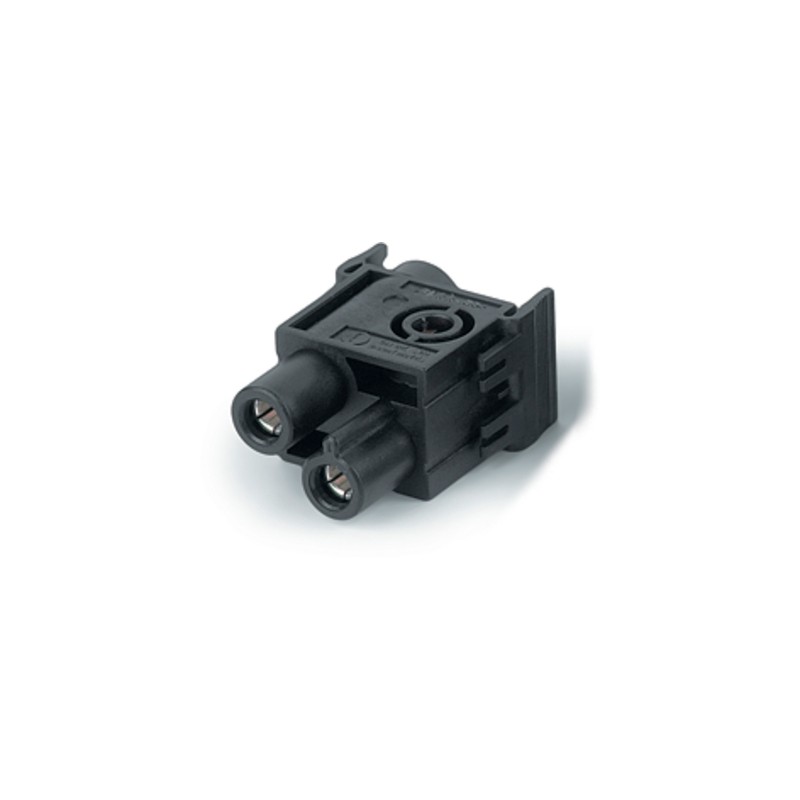

LAPP 10345100 10345100 EPIC MCB-HC 2 B - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

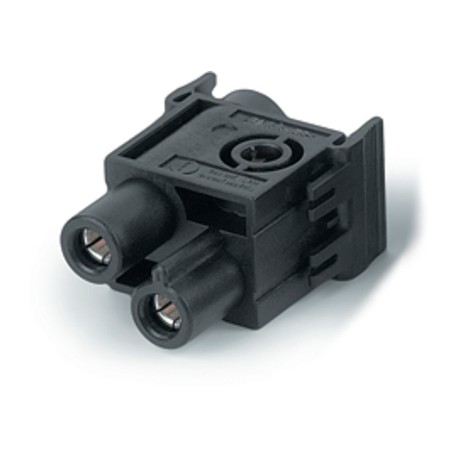

10345100 EPIC MCB-HC 2 B LAPP EPIC MCB-HC 2 B FEMALE MODULE

Reference: 10345100

Catalog Number: EPIC MCB-HC 2 B

Manufacturer: LAPP

Description:

EPIC MCB-HC 2 B FEMALE MODULE
EPIC® MC module: HC2

Categories:

  • Connectors > Modular connector (industrial connector)
  • LAPP > EPIC rectangular

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 66,24 €

Unit Price: 13,247 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

The high-power module with 2-pole screw termination ensures high flexibility thanks to the combination of various functions within a single product.

  • High power module 2pole with screw connection
  • Lever for rapid removal of the module

Benefits

  • The mix of different functions in one plug guarantees high flexibility
  • Screw connection up to 25mm² for easy assembly without speciall tools

Application range

  • Plant engineering
  • Printing machines
  • Control engineering

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002641
  • ETIM 5.0 Class-Description: Modular connector (industrial connector)

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002641
  • ETIM 6.0 Class-Description: Modular connector (industrial connector)

Rated voltage (V)

  • IEC: 1000 V
    UL: 600 V
    CSA: 600 V

Rated current (A)

  • 82 A

Pollution degree

  • 3

Contact resistance

  • < 2 mOhm

Contacts

  • Copper alloy, hard silver-plated

Number of contacts

  • 2

Termination methods

  • Screw termination: 10 - 25 mm²

Stripping length (mm)

  • 15

Cycle of mechanical operation

  • 100

VDE-tested

  • Certified production control: VDE-REG. no. A870
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

DATASHEET - PDF

Title
Size
Type
10345100 EPIC MCB-HC 2 B 10345100 EN_10345100.pdf
402 Kbytes
PDF CATALOGUE LAPP EN
69 Mbytes
