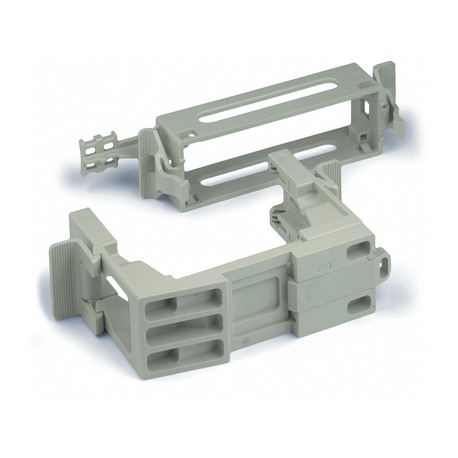

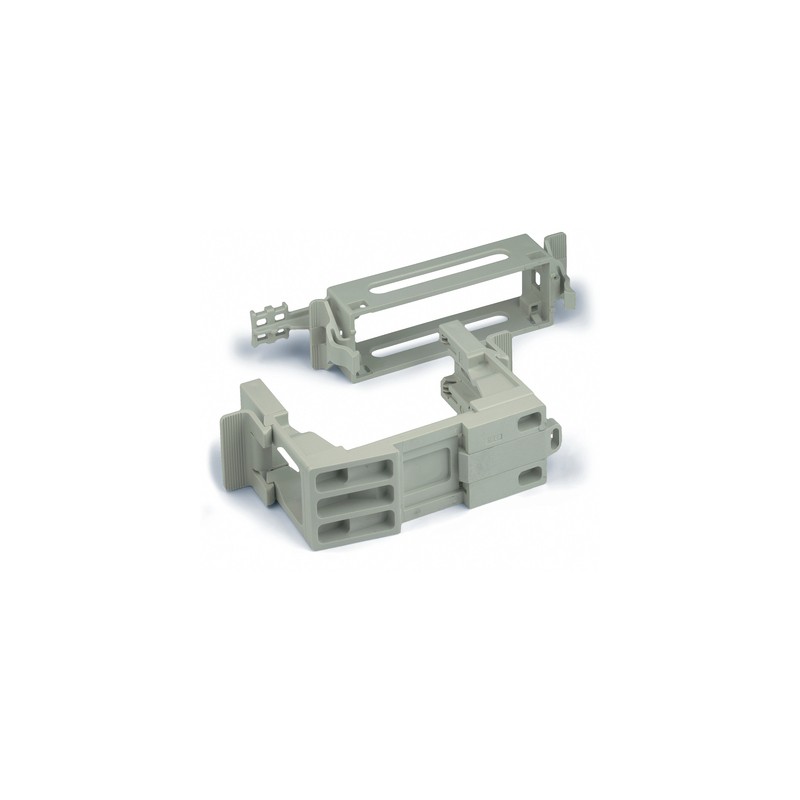

10027710 H-B 24 Q+E TOP PART LAPP H-B 24 Q+E MOUNTING SYSTEM TOP PART View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

10027710 H-B 24 Q+E TOP PART LAPP H-B 24 Q+E MOUNTING SYSTEM TOP PART

10027710

H-B 24 Q+E TOP PART

LAPP

10

H-B 24 Q+E MOUNTING SYSTEM TOP PART

EPIC® QUICK & EASY Mounting system

More details


Connectors > Module carrier frame for industrial connectors

EPIC rectangular

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $49.17
Unit price: $4.92

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


The installation system for control cabinets is available as a set or as single components (upper part for the cable connector, lower part for installation to DIN rail).

Mounting system for control cabinets

Application range

  • Control cabinet manufacturing

Product features

  • For mounting inserts on top-hat rails according to DIN EN 50022
  • Available as a complete set or as single parts (top part for use as a cable connector, bottom part for mounting on a top-hat rail)
  • QUICK & EASY top parts are available in housing types H-B 6, H-B 10, H-B 16, H-B 24. The suitable size (number of contacts) of the different insert types are listed at the connector housings (H-B 6 ..H-B 24)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC002312
  • ETIM 5.0 Class-Description: Contact insert holder for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC002312
  • ETIM 6.0 Class-Description: Contact insert holder for industrial connectors

Flammability

  • UL94 V-0

Cycle of mechanical operation

  • 50

Datasheet - PDF

▲
Title: Size: Type:
10027710 H-B 24 Q+E TOP PART 10027710 EN_10027410.pdf 284 Kbytes 10027710 H-B 24 Q+E TOP PART 10027710 EN_10027410.pdf
