Wall mounted, 300x600x300
Control Cabinets Switch Boxes Distribution Enclosures
Wall Mounting Enclosures - ELDON
Mild steel panel. MAP - ELDON
* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

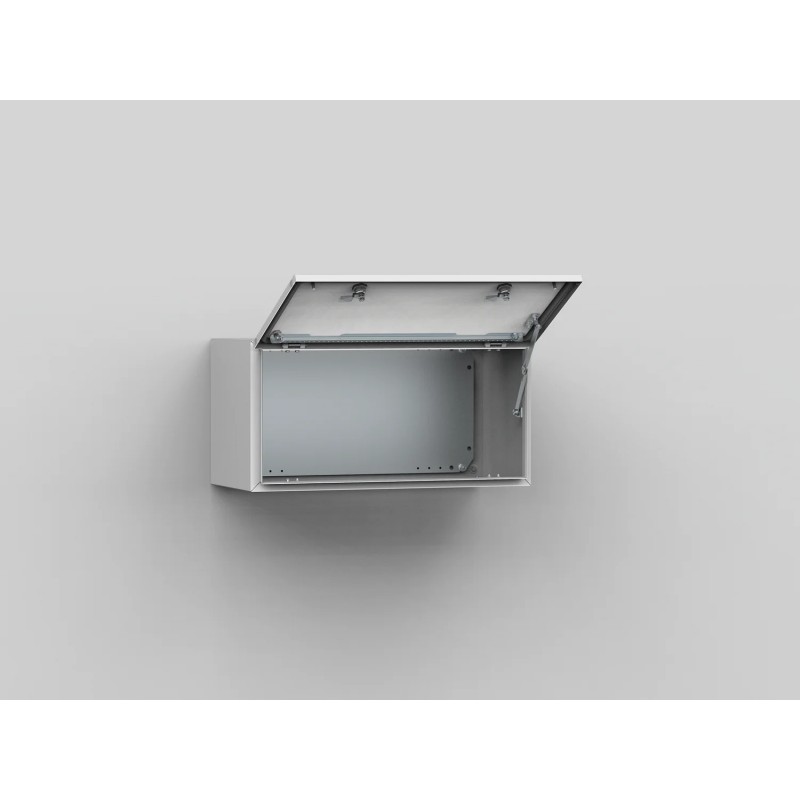

The MAP is an incredibly versatile enclosure, for use in either stand alone applications, or in conjunction with MAS/MAD as a cableway.
|Note||Without mounting plate|
|Gland Plate |
|No. of Gland Plate |
Body: 1.5 mm mild steel. Gland plate: 1.4 mm mild steel. Door: 1.5 mm mild steel MAP0306030R5 / 2 mm MAP0308030R5 and above. Mounting plate: 2 mm galvanized steel.
Folded and seam welded. Four 8.5 mm diameter holes for wall fixing pressed out in 20.4 mm diameter x 2 mm depressions to allow air circulation around the rear part of the enclosure.
Surface mounted with 130° opening. Concealed removable hinges with captive pin. Hinges can be mounted to allow top or bottom opening. Mechanical door stop keeps the panel open. One removable mounting profile on the hinge side. Sealing is ensured by an extruded one piece polyurethane gasket.
Customised lock with double grip for easy opening of the panel. Double-bit 3 mm insert and 90° movement. Other inserts are available as an accessory.
The mounting plate is marked vertically at 10 mm intervals for easy horizontal positioning of equipment. On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides from 800 mm and above are strengthened by folded edges.
Gland Plate Opening:
In top and bottom. Situated at the far rear of the enclosure to make cabling onto the mounting plate easier. Gland plates (AF) and gaskets (AG) are not included. If the MAP panel is to be combined to an MAS or MAD enclosure, then the gland plate from the MAS/MAD enclosure can be used with the MAP panel.
Mounted stand alone complies with IP 66 | TYPE 4, 12, 13 | IK 10, as long as you mount the gland plate(s) and gasket(s), supplied as an accessory. Combined with MAS or MAD complies with IP 55 | TYPE 12.
RAL 7035 structured powder coating.
Enclosure with panel and one panel mounting profile. Plastic double-bit 3 mm key and mounting accessories. Earthing facilities.
