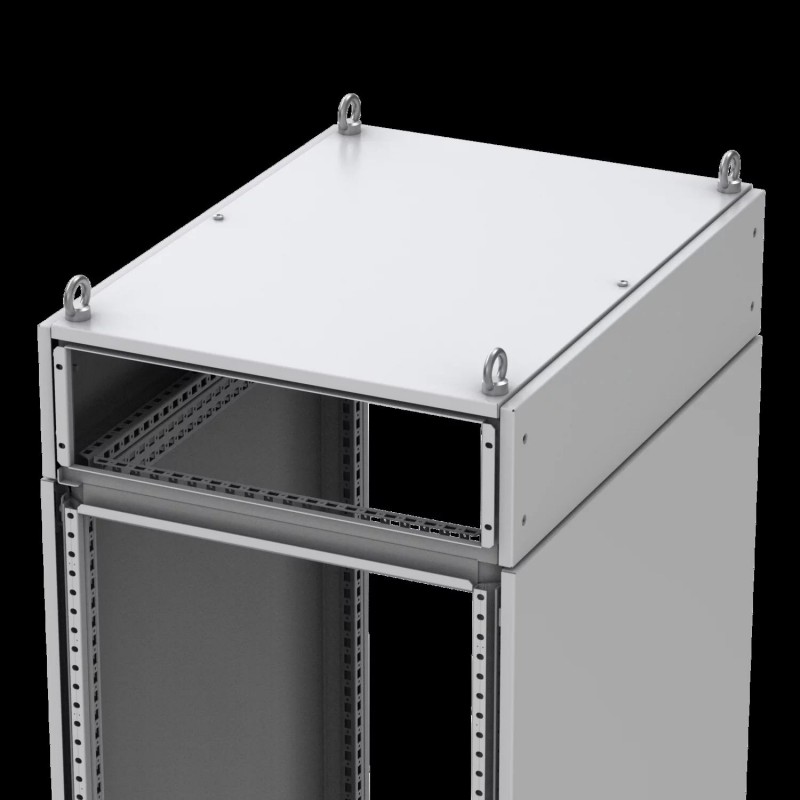

MCU2066R5 ELDON Top cable frame, 200x600x600
MCU2066R5
ELDON
Top cable frame, 200x600x600
Framework sup. cables,200x600x600, combinable
Front/Rear Top Frames, MCU, 200x600x600mm, Light Gray, Steel
Top cable frame, 200x600x600, Combinable
Cabinet enclosures > Base/base element (switchgear cabinet)
Power and distribution
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Best sellers
▲More info
▲Features
- Description: For cable entry and routing or for installation of a power distribution system. Fixed to the top of the enclosure by four M12 screws. Available in 200 mm and 300 mm heights. The enclosure roof plate CCR can be used to close the top. For lifting MCU together with an enclosure a separate lifting kit MCUK is needed.
- Side panels: MCUP supplied as an accessory.
- Material: Frame in 1.75 mm steel plate, panels in 1.35 mm steel plate.
- Finish: RAL 7035 structured powder coating.
- Protection: Complies with IP55.
- Pack quantity: 1 piece with front and back panels including mounting accessories (without roof plate).
| Atributo del producto | Valor |
|---|---|
| Height | 200mm |
| Width | 600mm |
| Depth | 600mm |
| Enclosure Material | Stainless Steel |
| Material | Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| UPC | 783510500849 |
| EAN | 8713574126275 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | |
| Material (EF002169) | |
| Colour (EF000007) | |
| Max. load capacity (EF000258) | None kg |
| Width (EF000008) | None mm |
| Height (EF000040) | None mm |
| Depth (EF000049) | None mm |
| Suitable for enclosure building width (EF000326) | None mm |
| Suitable for enclosure building depth (EF000327) | None mm |
| Suitable for aeration/de-aeration (EF000324) | |
| Suitable for cable patch (EF007251) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| MCU2066R5 MCU2066R5 EN_MCU2046R5.pdf | 120 Kbytes |
|
