ELDONSFC456 ELDON Swing frame, 2200 SFC456

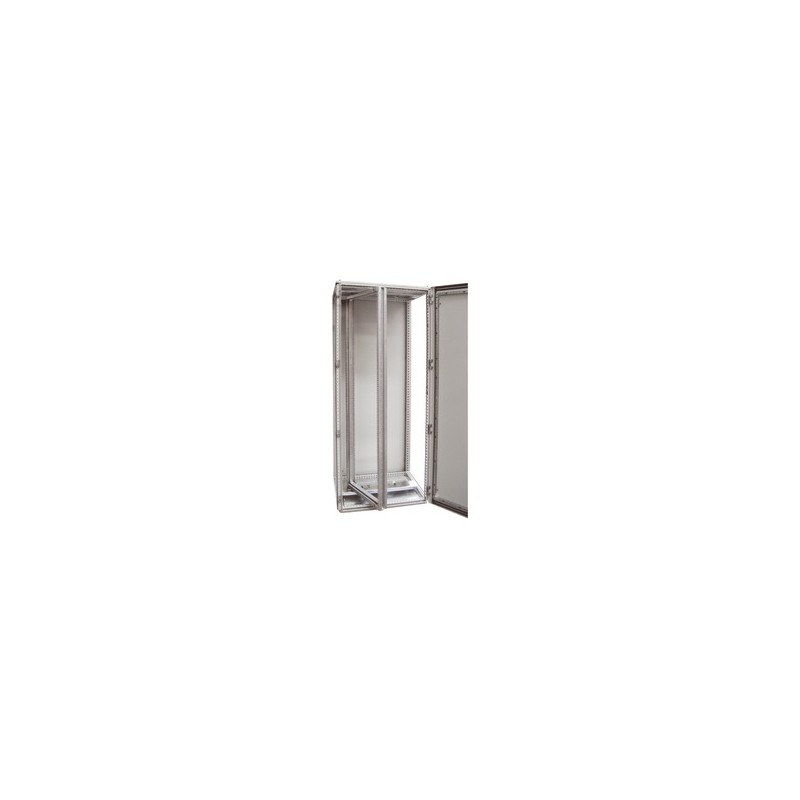

ELDON SFC456 SFC456 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

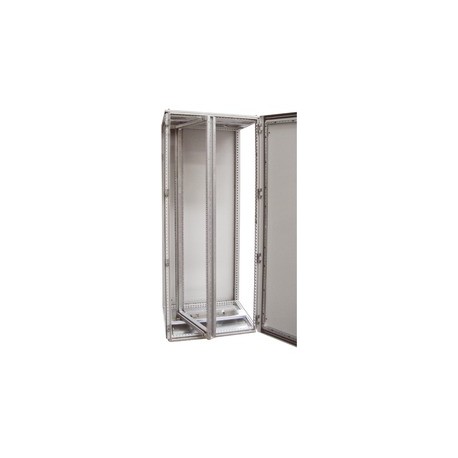

SFC456 ELDON Swing frame, 2200 SFC456

Reference: SFC456

Manufacturer: ELDON

Description:

Swing frame, 2200 SFC456
For mounting equipment in an enclosure while having easy access to the back and side by use of swing frame.

Categories:

  • ELDON

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical data

Description:

Full height swing frame for 19" components allowing left and right hand opening. Can be used in MultiFlex enclosures. Hinges designed to give extra build-in depth. Adjustable top hinge for square mounting of the swing frame. Rigid W-shaped frame profile for heavy equipment. Zinc plated frame for direct earthing of the mounted components. Standard equipped with 130° hinges (180° hinges not applicable for 600mm wide enclosures). Can also be mounted on the side of 600mm deep floor standing enclosures. For MultiFlex use transversal support bars SFB in combination with VBD if required. Adjustable in depth by steps of 12.5mm. Vertical profiles, 2mm and horizontal profiles, 3mm.

Lock:

Two 3mm double-bit locks.

Material:

Zinc plated steel.

Pack quantity:

1 swing frame with hinges.

Mounting requirements:

SFC for 600mm, 800mm, 1000mm, 1200mm wide MultiFlex enclosures. Add SFB for mounting in a MultiFlex enclosure.

DATASHEET - PDF

Title
Size
Type
SFC456 SFC456 ES_SFC366.pdf
206 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
