ELDONSteel Wall Mounting EnclosuresARF03015R5 ELDON Rain hood, 300x155 ARF03015R5

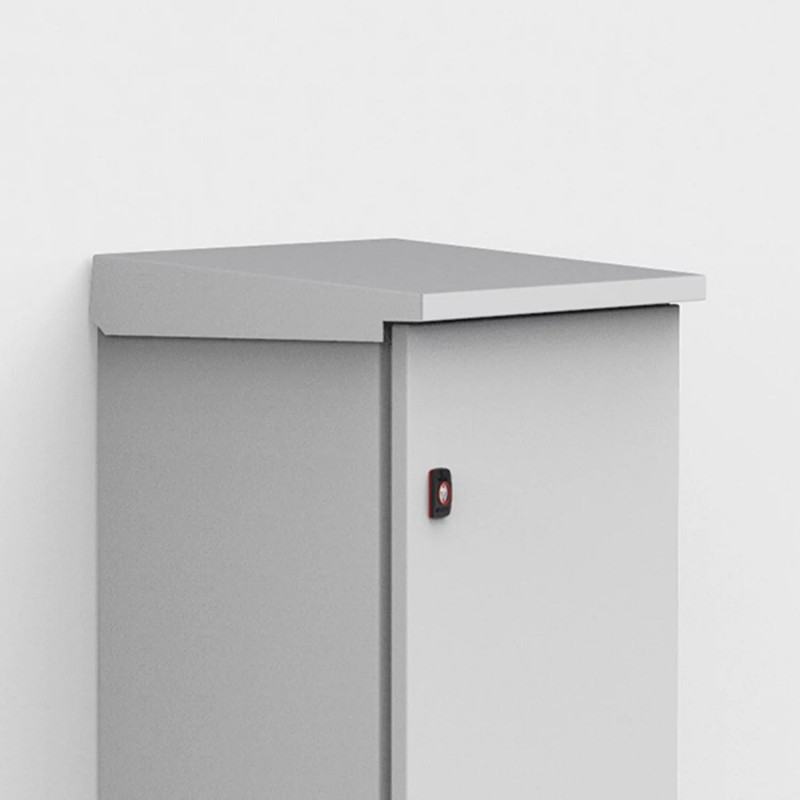

ELDON ARF03015R5 ARF03015R5 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ARF03015R5 ELDON Rain hood, 300x155 ARF03015R5

Reference: ARF03015R5

Manufacturer: ELDON

Description:

Rain hood, 300x155 ARF03015R5
Tejadillo, 300x155, steel sheet
Rain Hood, ARF, 55x300x155mm, Light Gray, Mild Steel

Categories:

  • Cabinet enclosures > Top-/floor cover element (enclosure/switchgear cabinet)
  • ELDON > Steel Wall Mounting Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 33,53 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: To be fitted as an outdoor shelter on single mounted enclosures. The roof is slightly sloped and has a dripstrip. Machining is required. It increases the enclosure dimension in H:60 mm, D:20 mm and W:20 mm.
  • Material: 1.5 mm mild steel.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: 1 rain hood with mounting accessories.
  • Additional information: For exposure to high levels of UV radiation, the ARF should be ordered with 100% polyester paint coating. An additional corrosion protection primer coating is recommended for humid environments. Resistance to corrosion must be taken into consideration for outdoor and indoor applications. The ARF is not compatible with 180º MMH hinges.
Atributo del producto Valor
Height55mm
Width300mm
Depth155mm
Weight1.4kg
Enclosure MaterialMild Steel
Product FamilyWall Mounted
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.5mm
Package Quantity1
UPC783510126889
EAN8713574125971
Standard Packaging Quantity1
Packing Quantity1

ETIM for ARF03015R5 Cabinets and enclosures (EC000744)

Feature nameSuitable for roof planking (EF009584)
Feature value
Feature nameSuitable for bottom planking (EF009585)
Feature value
Feature nameWidth (EF000008)
Feature valueNone mm
Feature nameHeight (EF000040)
Feature valueNone mm
Feature nameDepth (EF000049)
Feature valueNone mm
Feature nameSuitable for enclosure building width (EF000326)
Feature valueNone mm
Feature nameSuitable for enclosure building depth (EF000327)
Feature valueNone mm
Feature nameMaterial (EF002169)
Feature value
Feature nameSurface finishing (EF006569)
Feature value
Feature nameColour (EF000007)
Feature value
Feature nameRAL-number (EF000116)
Feature value
Feature nameWith de-aeration (EF001161)
Feature value
Feature nameSuitable for outdoor set-up (EF005774)
Feature value
Feature nameWith cable entry (EF000325)
Feature value

DATASHEET - PDF

Title
Size
Type
ARF03015R5 ARF03015R5 EN_ARF02515R5.pdf
104 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
