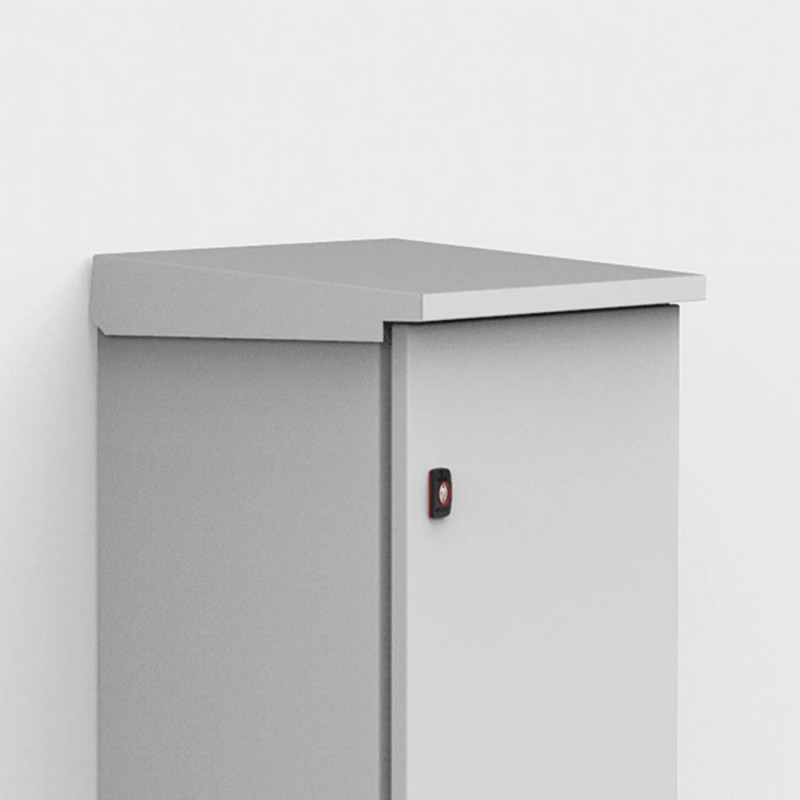

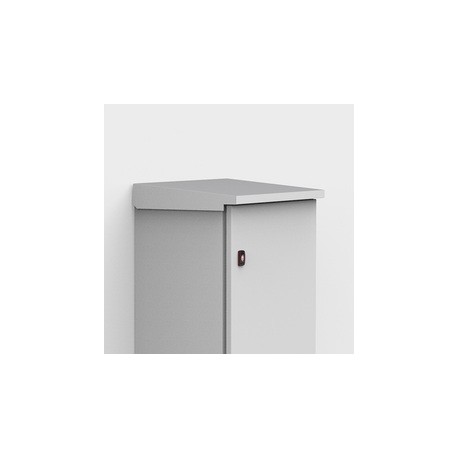

ARF02521R5 ELDON Rain hood, 250x210 ARF02521R5
ARF02521R5
ELDON
Rain hood, 250x210 ARF02521R5
Tejadillo, 250x210, steel sheet
Rain Hood, ARF, 60x250x210mm, Light Gray, Mild Steel
Cabinet enclosures > Top-/floor cover element (enclosure/switchgear cabinet)
Steel Wall Mounting Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Related products
▲Best sellers
▲More info
▲Features
- Description: To be fitted as an outdoor shelter on single mounted enclosures. The roof is slightly sloped and has a dripstrip. Machining is required. It increases the enclosure dimension in H:60 mm, D:20 mm and W:20 mm.
- Material: 1.5 mm mild steel.
- Finish: RAL 7035 structured powder coating.
- Pack quantity: 1 rain hood with mounting accessories.
- Additional information: For exposure to high levels of UV radiation, the ARF should be ordered with 100% polyester paint coating. An additional corrosion protection primer coating is recommended for humid environments. Resistance to corrosion must be taken into consideration for outdoor and indoor applications. The ARF is not compatible with 180º MMH hinges.
| Atributo del producto | Valor |
|---|---|
| Height | 60mm |
| Width | 250mm |
| Depth | 210mm |
| Weight | 1.6kg |
| Enclosure Material | Mild Steel |
| Product Family | Wall Mounted |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 1.5mm |
| Package Quantity | 1 |
| UPC | 783510126858 |
| EAN | 8713574125278 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Suitable for roof planking (EF009584) | |
| Suitable for bottom planking (EF009585) | |
| Width (EF000008) | None mm |
| Height (EF000040) | None mm |
| Depth (EF000049) | None mm |
| Suitable for enclosure building width (EF000326) | None mm |
| Suitable for enclosure building depth (EF000327) | None mm |
| Material (EF002169) | |
| Surface finishing (EF006569) | |
| Colour (EF000007) | |
| RAL-number (EF000116) | |
| With de-aeration (EF001161) | |
| Suitable for outdoor set-up (EF005774) | |
| With cable entry (EF000325) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| ARF02521R5 ARF02521R5 EN_ARF02515R5.pdf | 104 Kbytes |
|
