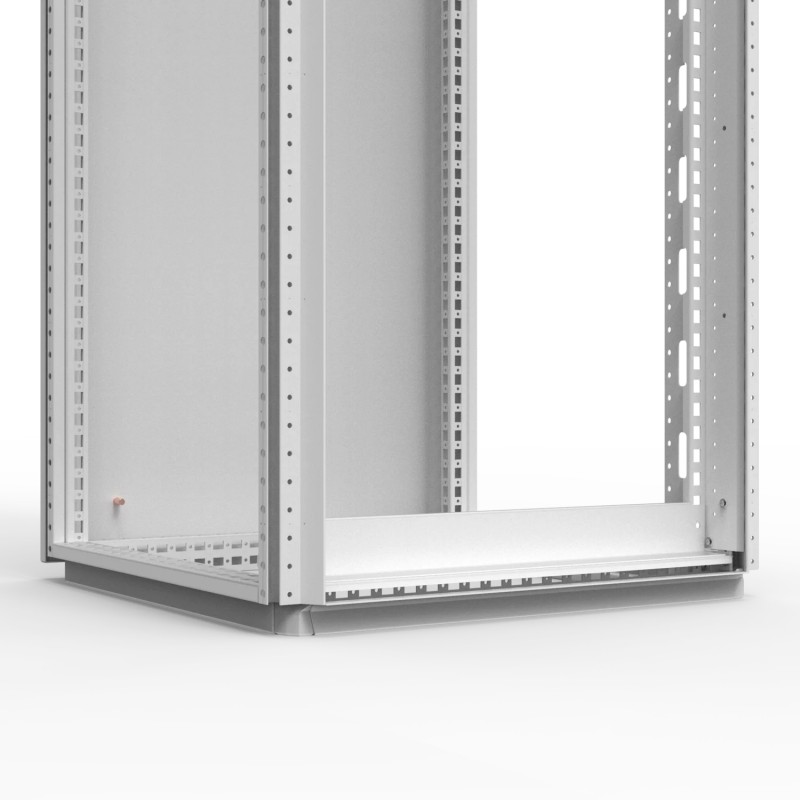

MSMSF1806 ELDON Modular frame, 1800x600, for self-supporting
MSMSF1806
ELDON
Modular frame, 1800x600, for self-supporting
Modular system frame, 1800x600, for Floor Standing enclosures
Cabinet enclosures > Mounting accessories (switchgear cabinet)
Power and distribution
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Often bought together
▲Best sellers
▲More info
▲Features
- Description: Two single vertical profiles, which can be used both for front covers and assembly of components. A cost effective solution for panel builders, reducing assembly time, which also enables assembly outside the enclosure. Useful height for front covers is, Height – 150 mm.
- Material: 2 mm steel.
- Finish: RAL 7035.
- Pack quantity: 1 kit.
- The frame provides customers with a cost effective solution for small and medium sized power distribution panels
- The frame ensures that both modular and non-modular components can be installed into the same enclosure
- Customers can assembly the frame outside of the enclosure, if required, which saves installation time as well as labour cost
| Atributo del producto | Valor |
|---|---|
| Height | 1800mm |
| Width | 600mm |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 2mm |
| Enclosure Material | Mild Steel |
| UPC | 783510520427 |
| EAN | 8713574222823 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 600.00 mm |
| Height (EF000040) | 1.80 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| MSMSF1806 MSMSF1806 EN_MSMSF1806.pdf | 129 Kbytes |
|
| Download general catalog |
|
