ELDONSteel Wall Mounting EnclosuresAC06060R5 ELDON Modular chassis, 600x600 AC06060R5

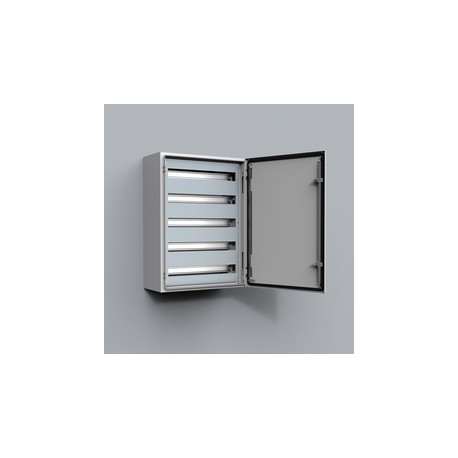

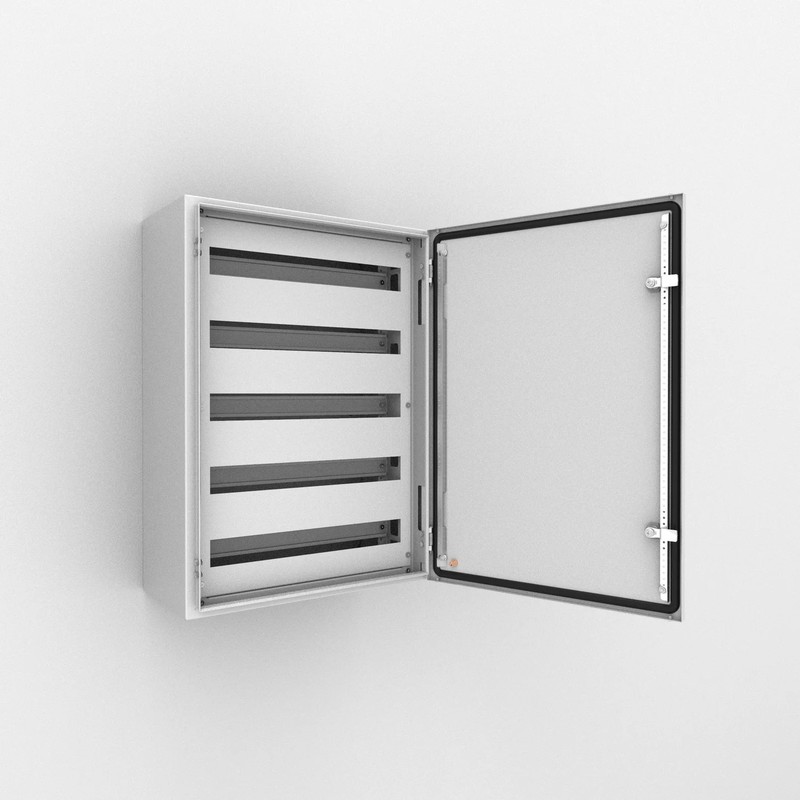

ELDON AC06060R5 AC06060R5 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

AC06060R5 ELDON Modular chassis, 600x600 AC06060R5

Reference: AC06060R5

Manufacturer: ELDON

Description:

Modular chassis, 600x600 AC06060R5
Modular chassis, 600x600, 108 modules, 4 rows
Modular Chassis, AC, 580x560x98mm, Light Gray, Mild Steel

Categories:

  • Cabinet enclosures > Profile (switchgear cabinet)
  • ELDON > Steel Wall Mounting Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 77,29 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: Used for easy mounting of DIN-rail components with a maximum height of 68 mm. Distance between rows 125 mm. If required, the standard enclosure door can be replaced with a glazed door. Usable depth between front cover and external door: 35 mm. In stainless steel enclosure machining is required.
  • Material: DIN-rails PP0735 made of 1.2 mm galvanized steel, vertical profiles 1.5 mm mild steel, and front cover 1.5 mm mild steel.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: Slotted front panel, two vertical profiles, top and bottom blank panels, one DIN-rail per row, and mounting accessories.
  • Mounting requirements: To be assembled on MAS and ASR enclosures.
Atributo del producto Valor
Height600mm
Width600mm
Depth98mm
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.2mm
Weight9.3kg
Enclosure MaterialMild Steel
Module Quantity108
Row Quantity4
UPC783510113728
EAN8713574124707
Standard Packaging Quantity1
Packing Quantity1

ETIM for AC06060R5 Cabinets and enclosures (EC002518)

Feature nameNumber of height units (EF003561)
Feature value
Feature nameModel (EF000010)
Feature value
Feature nameMaterial (EF002169)
Feature value
Feature nameSurface finishing (EF006569)
Feature value
Feature nameLength (EF001438)
Feature valueNone mm
Feature nameStepless mounting (EF001086)
Feature value
Feature nameMounting method (EF000003)
Feature value
Feature nameProfile height busbar (EF008269)
Feature valueNone mm
