AC06040R5 ELDON Modular chassis, 600x400 AC06040R5
AC06040R5
ELDON

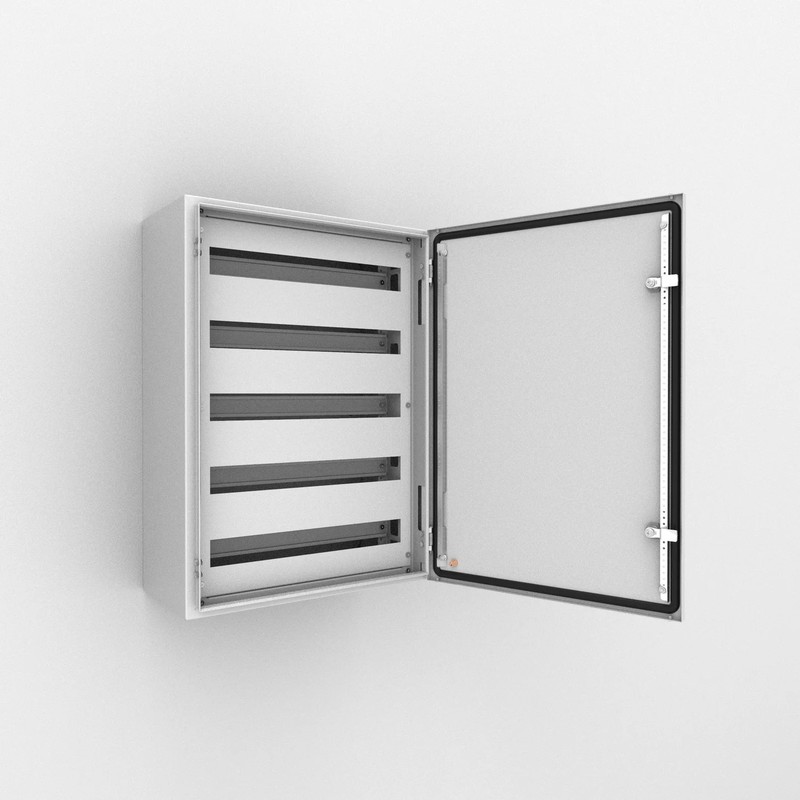

Modular chassis, 600x400 AC06040R5
Modular chassis, 600x400, 64 modules, 4 rows
Modular Chassis, AC, 580x360x98mm, Light Gray, Mild Steel
Cabinet enclosures > Profile (switchgear cabinet)
Steel Wall Mounting Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Related products
▲Often bought together
▲Best sellers
▲More info
▲Features
- Description: Used for easy mounting of DIN-rail components with a maximum height of 68 mm. Distance between rows 125 mm. If required, the standard enclosure door can be replaced with a glazed door. Usable depth between front cover and external door: 35 mm. In stainless steel enclosure machining is required.
- Material: DIN-rails PP0735 made of 1.2 mm galvanized steel, vertical profiles 1.5 mm mild steel, and front cover 1.5 mm mild steel.
- Finish: RAL 7035 structured powder coating.
- Pack quantity: Slotted front panel, two vertical profiles, top and bottom blank panels, one DIN-rail per row, and mounting accessories.
- Mounting requirements: To be assembled on MAS and ASR enclosures.
| Atributo del producto | Valor |
|---|---|
| Height | 600mm |
| Width | 400mm |
| Depth | 98mm |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Thickness | 1.2mm |
| Weight | 5.9kg |
| Enclosure Material | Mild Steel |
| Module Quantity | 64 |
| Row Quantity | 4 |
| UPC | 783510113650 |
| EAN | 8713574124714 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
| Feature Name | Feature Value |
|---|---|
| Number of height units (EF003561) | |
| Model (EF000010) | |
| Material (EF002169) | |
| Surface finishing (EF006569) | |
| Length (EF001438) | None mm |
| Stepless mounting (EF001086) | |
| Mounting method (EF000003) | |
| Profile height busbar (EF008269) | None mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| AC06040R5 AC06040R5 EN_AC06040R5.pdf | 146 Kbytes |
|
