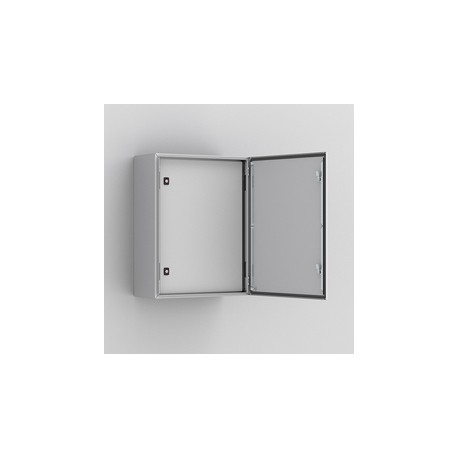

ELDONSteel Wall Mounting EnclosuresADI07050R5 ELDON Inner door, 700x500 ADI07050R5
ELDON ADI07050R5 ADI07050R5 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ADI07050R5 ELDON Inner door, 700x500 ADI07050R5

Reference: ADI07050R5

Manufacturer: ELDON

Description:

Inner door, 700x500 ADI07050R5
Interior door, 700x500, steel sheet, lock double-warded 3 mm
Inner Doors, ADI, 674x461x71mm, Light Gray, Mild Steel

Categories:

  • Cabinet enclosures > Door/operating panel (switchgear cabinet)
  • ELDON > Steel Wall Mounting Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 90,12 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Description: For controls, meters, lamps, etc. Hinges can be mounted to allow left or right hand opening. Lock double-bit 3 mm insert; 700 mm high doors and above have 2 locks. Usable depth between inner and external door: 35 mm. Adjustable depth position with AMG accessory. Workable area: H-55, W- 108. 19" version available on request. Machining is required for stainless steel enclosures.
  • Material: Door 1.5 mm mild steel, vertical top and bottom profiles 2 mm mild steel.
  • Finish: RAL 7035 structured powder coating.
  • Protection: IP 2XC.
  • Pack quantity: Inner door, two vertical profiles, top and bottom profiles and mounting accessories.
Atributo del producto Valor
Height674mm
Width461mm
Depth71mm
Door Size645 x 392mm
Latch Quantity2
Enclosure MaterialMild Steel
Product FamilyWall Mounted
MaterialMild Steel
FinishPowder Coated
ColorLight Gray
Color CodeRAL 7035
Thickness1.5mm
Package Quantity1
Weight6.7kg
UPC783510116514
EAN8713574124943
Standard Packaging Quantity1
Packing Quantity1

ETIM for ADI07050R5 Cabinets and enclosures (EC000747)

Feature nameModel (EF000010)
Feature valueInner door
Feature nameVersion as glazed door (EF006966)
Feature valueNo
Feature nameVersion as door for disconnecting switch interlocking (EF006967)
Feature valueNo
Feature nameWidth (EF000008)
Feature value461.00 mm
Feature nameHeight (EF000040)
Feature value674.00 mm
Feature nameDepth (EF000049)
Feature value71.00 mm
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface finishing (EF006569)
Feature valuePowder coated
Feature nameColour (EF000007)
Feature valueGrey
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP2X
Feature nameDegree of protection (NEMA) (EF011959)
Feature value1

DATASHEET - PDF

Title
Size
Type
ADI07050R5 ADI07050R5 EN_ADI04030R5.pdf
139 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
