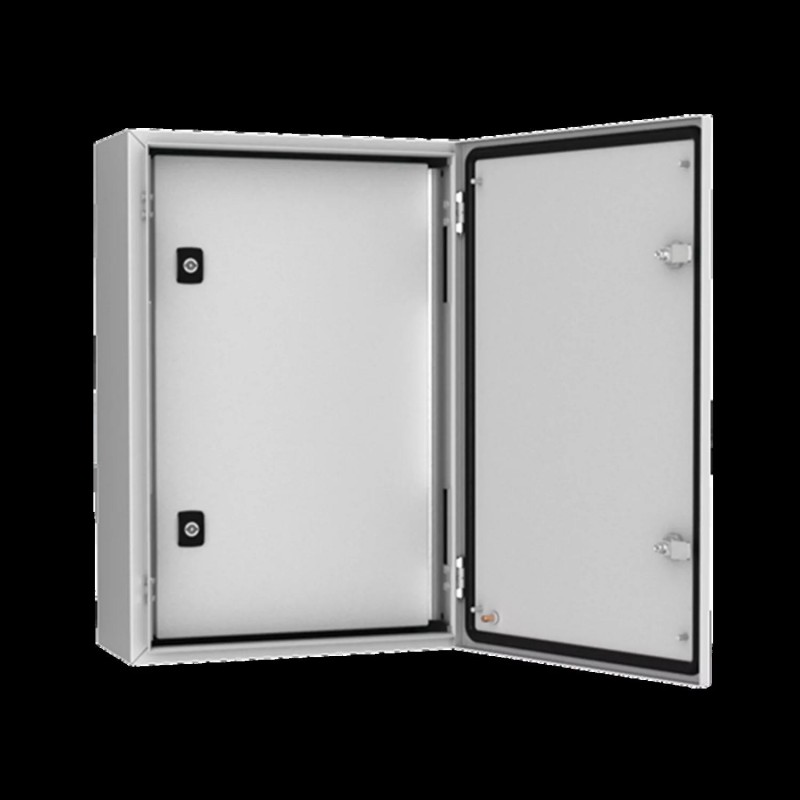

ADI05040R5 ELDON Inner door, 500x400 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

ADI05040R5 ELDON Inner door, 500x400

ADI05040R5

ELDON

Available Ship on today

Inner door, 500x400

More details


Control Cabinets Switch Boxes Distribution Enclosures

Wall Mounting Enclosures - ELDON

Wall Mounting Enclosures Accessories - ELDON

* Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

Quantity Price
1+$65.58
2+$63.36
*This price is per unit and is the net value (not including taxes if applicable).

Related products

More info



Aesthetic finish and safety.

Characteristics
Height500 mm
Width400 mm
Mounting Plate
Height
445 mm
Mounting Plate
Width
292 mm
No Locks1

Description:

For controls, meters, lamps, etc. Hinges can be mounted to allow left or right hand opening. Lock double-bit 3 mm insert; 700 mm high doors and above have 2 locks. Usable depth between inner and external door: 35 mm. Adjustable depth position with AMG accessory. Workable area: H-55, W- 108. 19" version available on request. Machining is required for stainless steel enclosures.

Material:

Door 1.5 mm mild steel, vertical top and bottom profiles 2 mm mild steel.

Finish:

RAL 7035 structured powder coating.

Protection:

IP 2X.

Pack quantity:

Inner door, two vertical profiles, top and bottom profiles and mounting accessories.

Datasheet - PDF

Title: Language: Size: Type:
Datasheet 1: ADI05040R5 English 182 Kbytes Datasheet 1: ADI05040R5
Complete catalogue 1: ADI05040R5 English 4 Mbytes Datasheet 1: ADI05040R5
