EL1200MS-CH ELDON Lumin. 1200lm Mov.+take corr., Sensor motion 120-230V 50/60Hz Type power outlet J
EL1200MS-CH
ELDON
Lumin. 1200lm Mov.+take corr., Sensor motion 120-230V 50/60Hz Type power outlet J

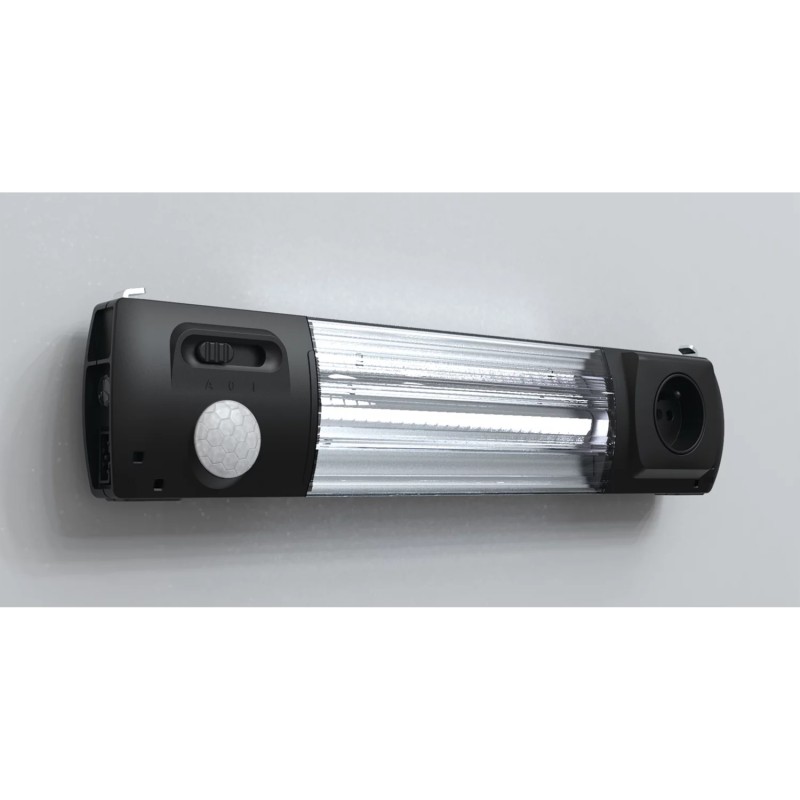

EL LED Light With Socket&Motion Sensor J, 100-240V, 76x364x48mm, Black, Plastic
Light 1200lm Motion + Socket
Cabinet enclosures > Luminaire (switchgear cabinet)
General Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Best sellers
▲More info
▲Features
| Atributo del producto | Valor |
|---|---|
| Height | 76 mm |
| Width | 364 mm |
| Depth | 48 mm |
| Material | Plastic |
| Finish | Smooth |
| Color | Black |
| Socket Type | Type J |
| Lamp Type | LED |
| Luminosity | 1200 lm |
| Color Temperature | 4000 K |
| Light Color | Neutral White |
| Power | 12 W |
| Nominal Voltage | 115 V |
| Input Voltage AC | 100 – 125 V |
| Hertz | 50/60 Hz |
| Connection | 3-Pole Infeed and Through Wiring |
| Operating Temperature | −20 to 55 °C |
| On-State Current | 120 s |
| Weight | 0.7 kg |
| Motion Sensor Included | Yes |
| Socket Included | Yes |
| UPC | 783510479053 |
| EAN | 8713574231474 |
| Standard Packaging Quantity | 1.0000 |
| Packing Quantity | 1.0000 |
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF003977) | None V |
| Voltage type (EF000187) | |
| Lamp power (EF000035) | None W |
| With socket outlet (EF000289) | |
| Type of electric connection (EF003961) | |
| Lamp type (EF002423) | |
| Length (EF001438) | None mm |
| With light sensor (EF001203) | |
| Material (EF002169) | |
| With on/off switch (EF000488) | |
| Degree of protection (IP) (EF005474) | |
| Degree of protection (NEMA) (EF011959) | |
| Mounting method (EF000003) | |
| Suitable for 19 inch mounting (EF003555) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| EL1200MS-CH EL1200MS-CH EN_EL1200MS.pdf | 133 Kbytes |
|
