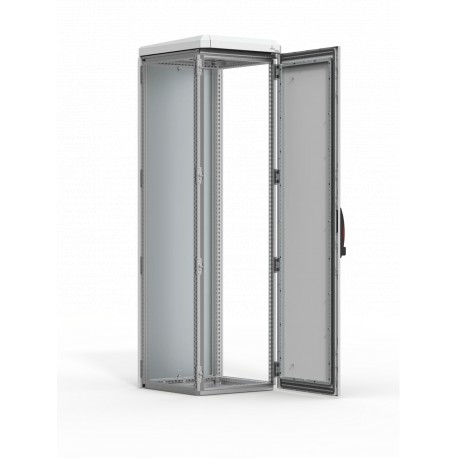

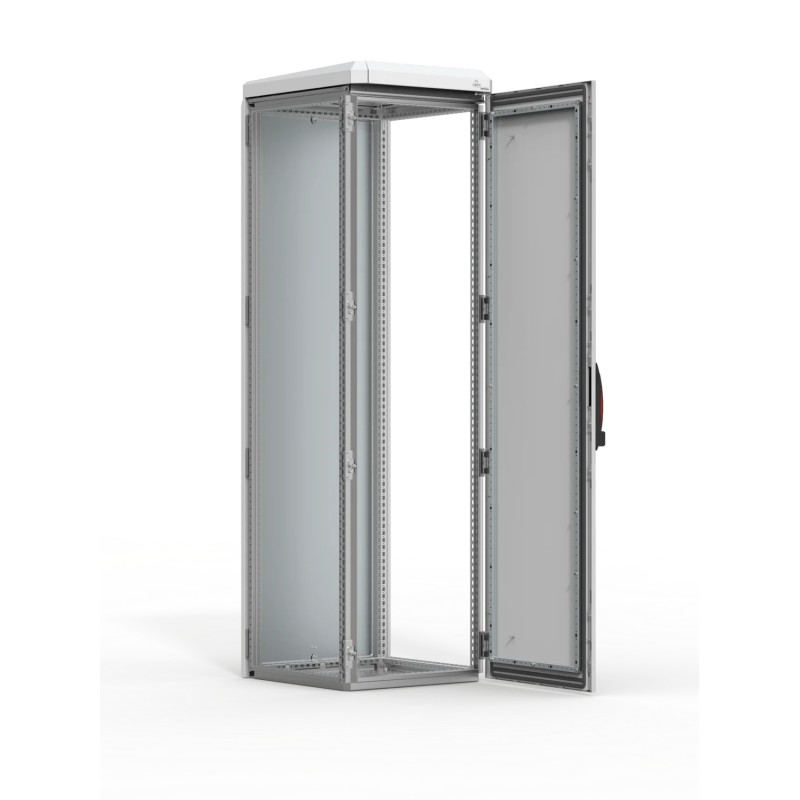

ELDONSteel Floor Standing EnclosuresECOM20066 ELDON Self-supporting, 2000x600x600, Wardrobe combinable, no plate, aluminium, IP66
ELDON ECOM20066 ECOM20066 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ECOM20066 ELDON Self-supporting, 2000x600x600, Wardrobe combinable, no plate, aluminium, IP66

Reference: ECOM20066

Manufacturer: ELDON

Description:

Self-supporting, 2000x600x600, Wardrobe combinable, no plate, aluminium, IP66
Floor standing, 2000x600x600, Combinable enclosure, no MP, aluminium, IP66

Categories:

  • Cabinet enclosures > Enclosure/switchgear cabinet (empty)
  • ELDON > Steel Floor Standing Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 3.805,55 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Material: Aluminium ALMg3. Door: 2 mm. Rear panel: 2 mm. Rain hood: 2 mm. Bottom plate: 2 mm.
  • Frame: AISI 304L pre-grained stainless steel. Frame: 1.5 mm. Seam welded reversed open profiles with 25 mm hole pattern according to DIN 43660.
  • Door: Double walled with top and bottom ventilation openings, allowing air flow. Mounted with concealed hinges, allowing left or right hand opening.
  • Rear panel: Double walled with top and bottom ventilation openings allowing air flow. Fastened from the inside. Standard facilities for rear door mounting.
  • Rainhood: Sloped rainhood with integrated rain gutter and ventilation channels around the perimeter.
  • Side panels: Supplied as an accessory.
  • Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing.
  • Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard lift handle with security lock.
  • Earthing: Internal panels are earthed through their fittings and are equipped with a separate earthing stud.
  • Finish: RAL 7035 structured powder coating 100% polyester.
  • Protection: Complies with IP 66 TYPE 4X, 12 IK 10, when bottom plate is fitted.
  • "Approvals: Climatic and Chemically active substances resistance according to EN61969-3 ""Mechanical structures for electronic equipment. Outdoor enclosures”."
  • Delivery: Frame with fitted door and lifthandle, rear panel and rain hood. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable. Mounting plate and side panels are not included in the standard delivery.
Atributo del producto Valor
Height (H)2000mm
Width (W)600mm
Depth (D)600mm
MaterialAluminum
FinishBrushed
Thickness (T)2mm
UPC783510474188
EAN8713574226111
Standard Packaging Quantity1
Packing Quantity1

ETIM for ECOM20066 Cabinets and enclosures (EC000261)

Feature nameWidth (EF000008)
Feature value600.00 mm
Feature nameHeight (EF000040)
Feature value2.00 mm
Feature nameDepth (EF000049)
Feature value600.00 mm
Feature nameMaterial (EF002169)
Feature valueAluminium
Feature nameMaterial quality (EF001257)
Feature value
Feature nameSurface finishing (EF006569)
Feature valuePowder coating
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRAL-number (EF000116)
Feature value7.04
Feature nameFreestanding (EF020363)
Feature value
Feature nameFloor standing wall model (EF015208)
Feature value
Feature nameSuitable for wall mounting (EF000664)
Feature value
Feature nameCorner model (EF020814)
Feature value
Feature nameIntermediate mounting (EF022994)
Feature value
Feature nameCouplable (EF001229)
Feature value
Feature nameWith mounting plate (EF000118)
Feature valuefalse
Feature nameMounting plate depth-adjustable (EF006054)
Feature valuefalse
Feature nameSuitable for wall built-in (EF007536)
Feature value
Feature namePole fastening (EF009582)
Feature valuefalse
Feature nameNumber of doors (EF000122)
Feature value1.00
Feature nameNumber of locks (EF000123)
Feature value1.00
Feature nameSuitable for metrical mounting (EF005823)
Feature value
Feature namePitched roof (EF009278)
Feature valuetrue
Feature nameEMC-version (EF001062)
Feature valuefalse
Feature nameWith glazed door (EF001089)
Feature valuefalse
Feature nameWith ventilation door (EF006279)
Feature valuetrue
Feature nameWith rear door (EF007381)
Feature valuefalse
Feature nameImpact strength (EF004293)
Feature valueIK10
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameDegree of protection (NEMA) (EF011959)
Feature value4X
Feature nameThermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986)
Feature valueNone W
Feature nameMax. permissible load of the enclosure according to IEC 62208 (EF014987)
Feature valueNone N
Feature nameMax. permissible load of the door(s) according to IEC 62208 (EF014988)
Feature valueNone N
Feature nameMax. permissible load of the mounting plate according to IEC 62208 (EF014989)
Feature valueNone N
