ELDONSteel Floor Standing EnclosuresECOM16086 ELDON Self-supporting, 1600x800x600, Wardrobe combinable, no plate, aluminium, IP66

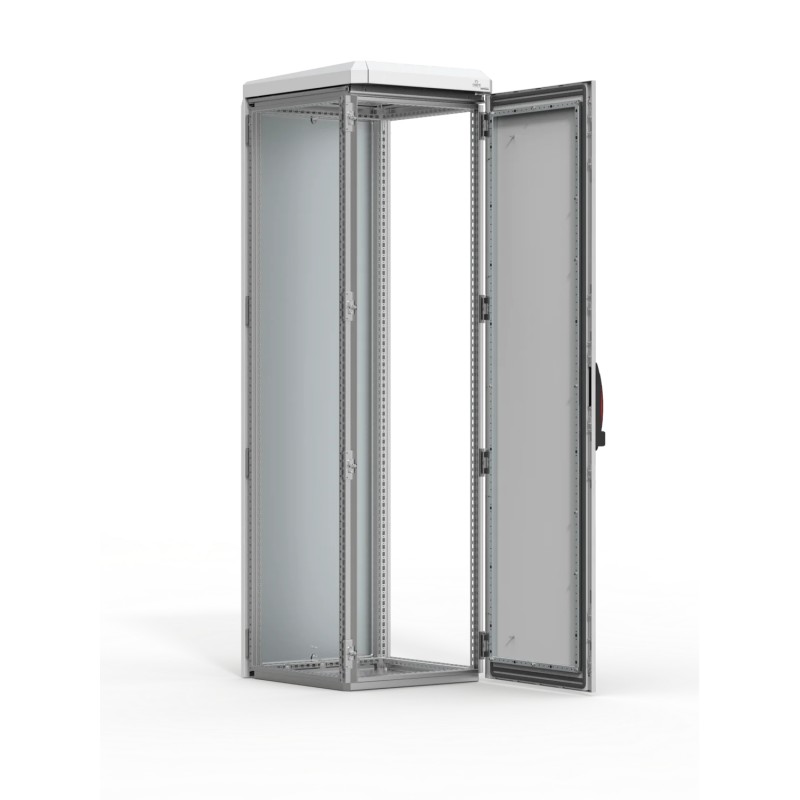

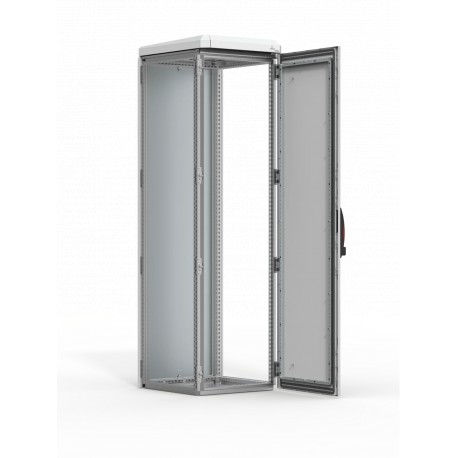

ELDON ECOM16086 ECOM16086 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ECOM16086 ELDON Self-supporting, 1600x800x600, Wardrobe combinable, no plate, aluminium, IP66

Reference: ECOM16086

Manufacturer: ELDON

Description:

Self-supporting, 1600x800x600, Wardrobe combinable, no plate, aluminium, IP66
Floor standing, 1600x800x600, Combinable enclosure, no MP, aluminium, IP66

Categories:

  • Cabinet enclosures > Enclosure/switchgear cabinet (empty)
  • ELDON > Steel Floor Standing Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 3.659,46 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

  • Material: Aluminium ALMg3. Door: 2 mm. Rear panel: 2 mm. Rain hood: 2 mm. Bottom plate: 2 mm.
  • Frame: AISI 304L pre-grained stainless steel. Frame: 1.5 mm. Seam welded reversed open profiles with 25 mm hole pattern according to DIN 43660.
  • Door: Double walled with top and bottom ventilation openings, allowing air flow. Mounted with concealed hinges, allowing left or right hand opening.
  • Rear panel: Double walled with top and bottom ventilation openings allowing air flow. Fastened from the inside. Standard facilities for rear door mounting.
  • Rainhood: Sloped rainhood with integrated rain gutter and ventilation channels around the perimeter.
  • Side panels: Supplied as an accessory.
  • Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing.
  • Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard lift handle with security lock.
  • Earthing: Internal panels are earthed through their fittings and are equipped with a separate earthing stud.
  • Finish: RAL 7035 structured powder coating 100% polyester.
  • Protection: Complies with IP 66 TYPE 4X, 12 IK 10, when bottom plate is fitted.
  • "Approvals: Climatic and Chemically active substances resistance according to EN61969-3 ""Mechanical structures for electronic equipment. Outdoor enclosures”."
  • Delivery: Frame with fitted door and lifthandle, rear panel and rain hood. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable. Mounting plate and side panels are not included in the standard delivery.
Atributo del producto Valor
Height (H)1600mm
Width (W)800mm
Depth (D)600mm
MaterialAluminum
FinishBrushed
Thickness (T)2mm
UPC783510474089
EAN8713574226081
Standard Packaging Quantity1
Packing Quantity1

ETIM for ECOM16086 Cabinets and enclosures (EC000261)

Feature nameWidth (EF000008)
Feature value800.00 mm
Feature nameHeight (EF000040)
Feature value1.60 mm
Feature nameDepth (EF000049)
Feature value600.00 mm
Feature nameMaterial (EF002169)
Feature valueAluminium
Feature nameSurface finishing (EF006569)
Feature valuePowder coated
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRAL-number (EF000116)
Feature value7.04
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameMounting plate depth-adjustable (EF006054)
Feature valueNo
Feature namePole fastening (EF009582)
Feature valueNo
Feature nameNumber of doors (EF000122)
Feature value1.00
Feature nameNumber of locks (EF000123)
Feature value1.00
Feature namePitched roof (EF009278)
Feature valueYes
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameWith glazed door (EF001089)
Feature valueNo
Feature nameWith ventilation door (EF006279)
Feature valueYes
Feature nameWith rear door (EF007381)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK10
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameDegree of protection (NEMA) (EF011959)
Feature value4X
