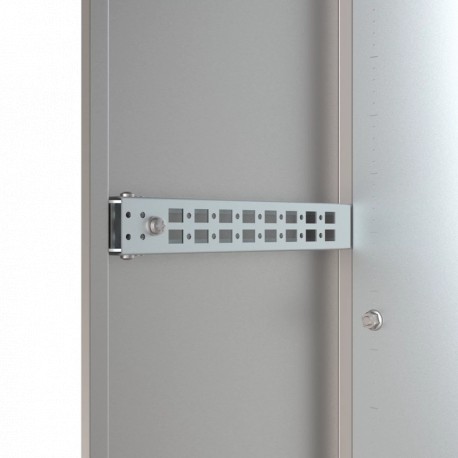

DIP210 ELDON Perf. Interior prof. D210mm, zinc-plated Steel. 4 units.
DIP210
ELDON
Perf. Interior prof. D210mm, zinc-plated Steel. 4 units.
Perf. interior prof., 210, zinc plated Steel. Pack of 4 units.
Depth interior profile, DIP, 40x25x183mm, Zinc Plated, Mild Steel
Cabinet enclosures > Component for installation (switchgear cabinet)
Steel Wall Mounting Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Related products
▲Best sellers
▲More info
▲Features

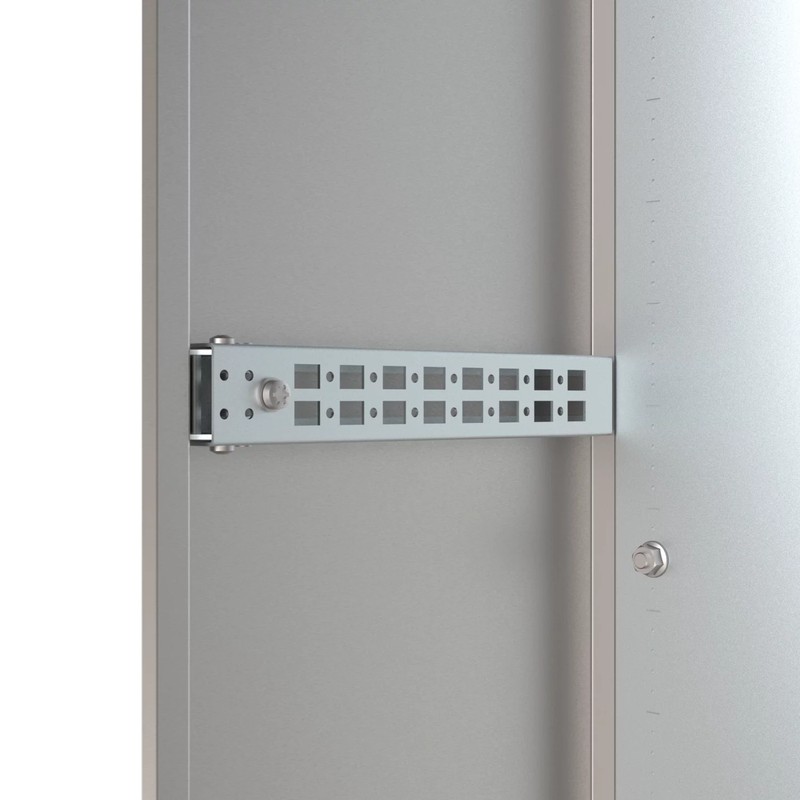

- Description: The DIP profile system is a 40 mm wide and 25 mm high profile, which can be mounted on the enclosure depth. It can also be used in combination with CLPF and CLPK profiles. Two rows of holes patterns for cage nut fixing and self-tapping screws are provided. DIP profiles are not compatible with adjustment in depth of the mounting plate.
- Material: Zinc plated steel.
- Pack quantity: 4 profiles including fixing accessories.
| Atributo del producto | Valor |
|---|---|
| Height | 40mm |
| Width | 25mm |
| Depth | 210mm |
| Load Rating | 150N |
| Material | Mild Steel |
| Finish | Zinc Plated |
| Thickness | 1.5mm |
| Package Quantity | 4 |
| Weight | 0.8kg |
| Enclosure Material | Mild Steel |
| UPC | 783510465735 |
| EAN | 8713574224889 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 4 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | 482.6 mm (19 inch) mounting rack |
| Suitable for enclosure building depth (EF000327) | 210.00 mm |
| Width (EF000008) | 25.00 mm |
| Height (EF000040) | 40.00 mm |
| Depth (EF000049) | 183.00 mm |
| Max. load capacity (EF000258) | 15.00 kg |
| Material (EF002169) | Metal |
| Colour (EF000007) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| DIP210 DIP210 EN_DIP210.pdf | 138 Kbytes |
|
