CLPK600 ELDON Click in profile, 600 CLPK600
CLPK600
ELDON
Click in profile, 600 CLPK600
Profile fast-fixing, 600, galvanised. Pack of 4 units.
Click-In Mounting Profile, CLPK, 74x553x26mm, Zinc Plated, Mild Steel
Cabinet enclosures > Profile (switchgear cabinet)
Steel Floor Standing Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by ELDON
Related products
▲Often bought together
▲Best sellers
▲More info
▲Features

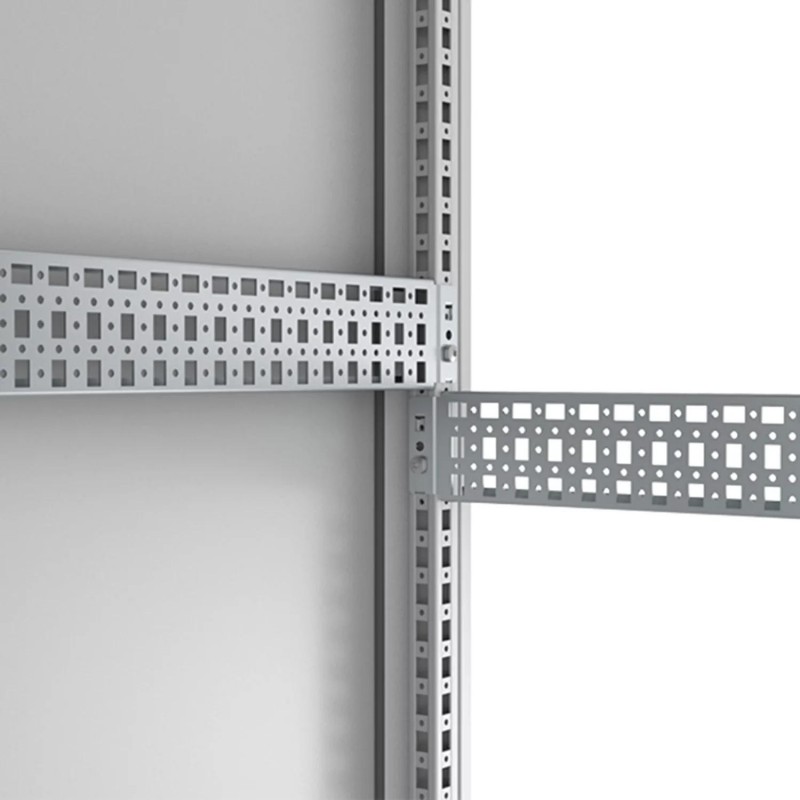

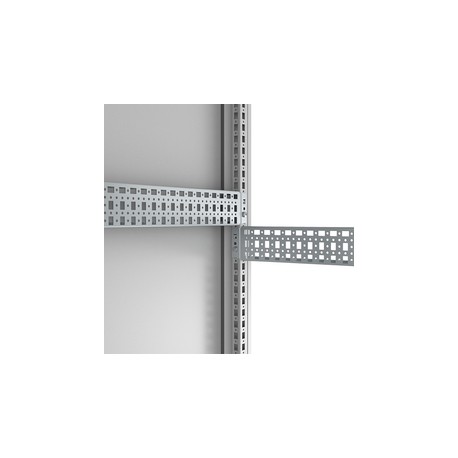

- Description: Universal profile for both depth and width fitting on the 25 mm DIN hole pattern of the enclosure's frame or in combination with the CLPF and VB profiles. The 75 mm wide profile is equipped with three rows of holes of which one is turned 90º. This makes it possible to mount the CLPF profiles in both directions. The CLPK can be secured by the use of self tapping screws.
- Material: 1.5 mm zinc plated steel.
- Pack quantity: 4 profiles.
| Atributo del producto | Valor |
|---|---|
| Height | 74mm |
| Width | 600mm |
| Depth | 26mm |
| Load Rating | 1600N |
| Material | Mild Steel |
| Finish | Zinc Plated |
| Thickness | 1.5mm |
| Package Quantity | 4 |
| Weight | 2.5kg |
| Enclosure Material | Mild Steel |
| UPC | 783510459932 |
| EAN | 8713574107861 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 4 |
| Feature Name | Feature Value |
|---|---|
| Number of height units (EF003561) | 3.00 |
| Model (EF000010) | 482.6 mm (19 inch) |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Length (EF001438) | 23.62 mm |
| Stepless mounting (EF001086) | Yes |
| Mounting method (EF000003) | Snap mounting |
| Profile height busbar (EF008269) | 16.00 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE NVENT EN.pdf | 140 Mbytes |
|
| CLPK600 CLPK600 EN_CLPK1000.pdf | 144 Kbytes |
|
