ELDONSteel Floor Standing EnclosuresCCI08IP66 ELDON Union Kit internal, IP66, 316 Stainless Steel. 8 units.

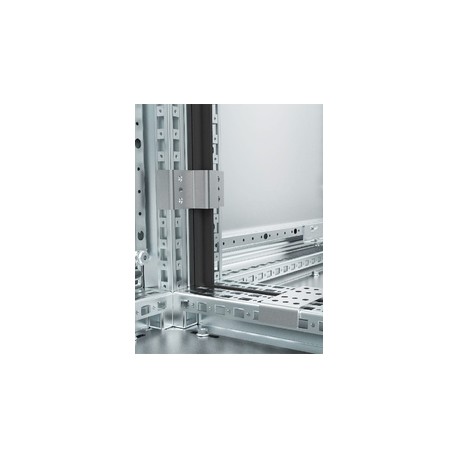

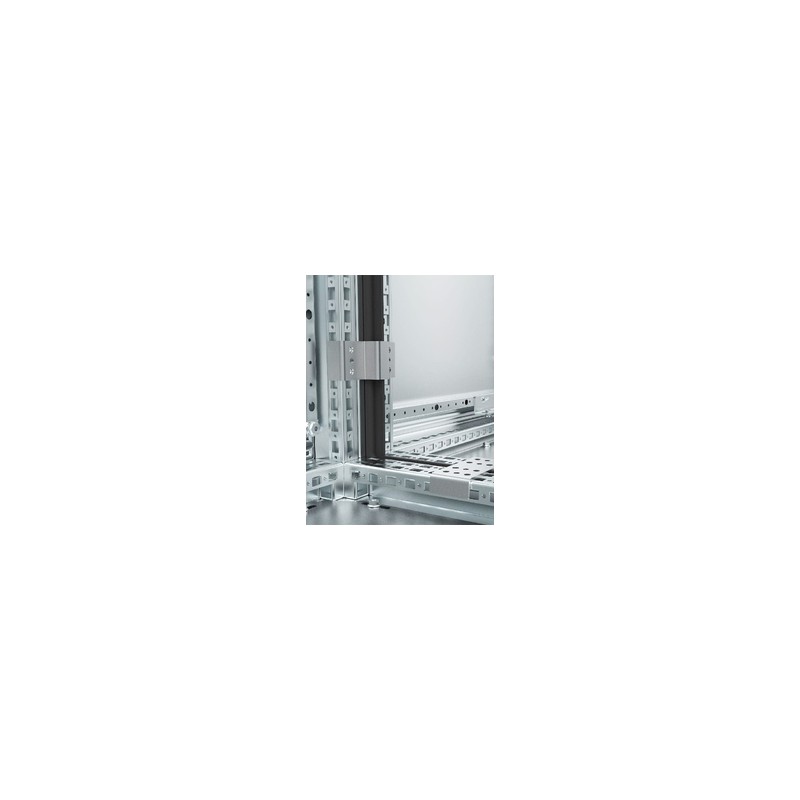

ELDON CCI08IP66 CCI08IP66 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

CCI08IP66 ELDON Union Kit internal, IP66, 316 Stainless Steel. 8 units.

Reference: CCI08IP66

Manufacturer: ELDON

Description:

Union Kit internal, IP66, 316 Stainless Steel. 8 units.
Union Kit internal, IP66, 316 Stainless Steel. Pack of 8 units.
These baying brackets provide a rigid reinforcement of the enclosure assembly. The correct spacing between the enclosures is assured to fit perfectly with the combining kit BK-IP66. The brackets are manufactured from stainless steel 316L.
Internal Baying Brackets, CCI08IP66, Mild Steel

Categories:

  • Cabinet enclosures > Front plate (switchgear cabinet)
  • ELDON > Steel Floor Standing Enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ELDON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 99,90 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical data

Description:

Baying brackets provide a rigid reinforcement of the enclosure assembly. The correct spacing between the enclosures is assured. Tools are not required for installation.

Material:

3 mm Stainless Steel 316L

Pack quantity:

8 brackets with mounting accessories.

Features

Feature:

A baying kit including snap-lines, mounted on the interior of the profiles, to allow for side-to-side baying of combinable floor standing enclosures.

Advantage:

Tool free assembly without the need to remove the door and rear panel.

Benefit:

Reduction of assembly time.

Comment:

These brackets should not be used in combination with a separation plate or mounting plate if mounted on the side of the enclosure. The external baying kit (CCE) should be used under these circumstances.

ETIM for CCI08IP66 Cabinets and enclosures (EC000456)

Feature nameWidth (EF000008)
Feature value95.00 mm
Feature nameHeight (EF000040)
Feature value64.00 mm
Feature nameNumber of height units (EF003561)
Feature value2.00
Feature nameMaterial (EF002169)
Feature valueSteel
Feature nameSurface finishing (EF006569)
Feature valueOther

DATASHEET - PDF

Title
Size
Type
CCI08IP66 CCI08IP66 ES_CCI08IP66.pdf
142 Kbytes
PDF CATALOGUE NVENT EN
140 Mbytes
