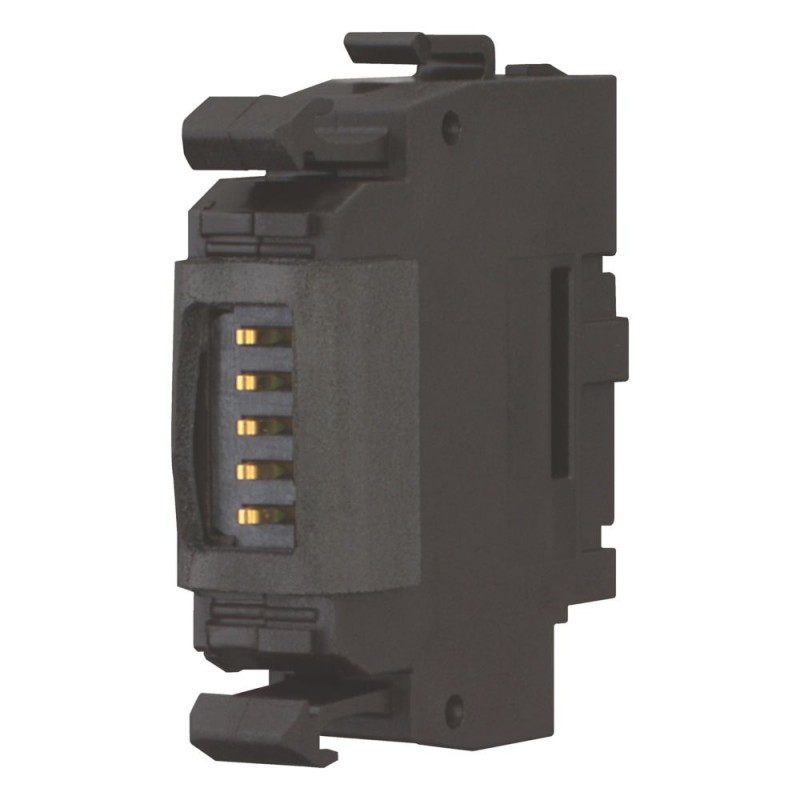

M22-SWD-R 179293 Y7-179293 EATON ELECTRIC Function element for potentiometer, SWD, Front mount View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

M22-SWD-R 179293 Y7-179293 EATON ELECTRIC Function element for potentiometer, SWD, Front mount

M22-SWD-R

179293

Y7-179293

EATON-MOELLER

Function element for potentiometer, SWD, Front mount

M22-SWD-R

Eaton Moeller® series M22 Function element, Potentiometer, Front fixing

Function element, Fixing: Front fixing, Description: Function element SmartWire-DT potentiometer, Only in conjunction with M22-R-SWD front element, Connection to SmartWire-DT: yes

More details


Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology

Auxiliary Control and Signalling Elements

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $45.77
Unit price: $45.77
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series M22 Function element
Catalog Number
179293
Model Code
M22-SWD-R
EAN
4015081743797
Product Length/Depth
42 mm
Product Height
42 mm
Product Width
12.5 mm
Product Weight
0.009 kg
Certifications
CSA Class No.: 3211-07
UL File No.: E29184
CSA
UL Category Control No.: NKCR
CSA File No.: 2324643
IEC/EN 61131-2
UL
Catalog Notes
Function element SmartWire-DT potentiometer

General

Accessory/spare part type
Other
Degree of protection
IP20
Overvoltage category
Not applicable
Pollution degree
2

Ambient conditions, mechanical

Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Mounting position
As required
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
70 °C
Environmental conditions
Condensation: prevent with appropriate measures
Relative humidity
9 - 95 % (non-condensing, IEC/EN 60068-2-30)

Electro magnetic compatibility

Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Burst impulse
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Electromagnetic fields
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Radio interference class
Class A (EN 55011)

Communication

Connection
SmartWire-DT plug connector SWD4-8SF2-5
Connection to SmartWire-DT
Yes
Connection type
Front fixing
SWD: Plug, 8-pole
LED indicator
Status indication of SmartWire-DT network: Green LED
Station
SmartWire-DT slave, SmartWire-DT network

ETIM for 179293 Low-voltage industrial controls and switchgear (EC002498)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Other
Accessory (EF013236) No
Spare part (EF013237) No

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M22-SWD-R Y7-179293 179293 IT_115973.pdf 2 Mbytes M22-SWD-R Y7-179293 179293 IT_115973.pdf
