EATON - MOELLERAuxiliary Control and Signalling ElementsM22-SWD-INC 179982 Y7-179982 EATON ELECTRIC SmartWire-DT function element for encoder

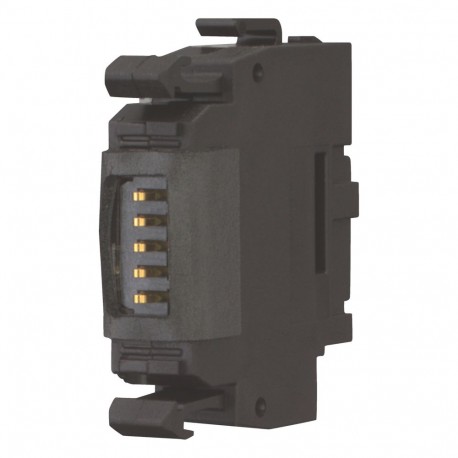

EATON - MOELLER M22-SWD-INC 179982 Y7-179982 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

M22-SWD-INC 179982 Y7-179982 EATON ELECTRIC SmartWire-DT function element for encoder

Reference: M22-SWD-INC

Code: 179982

Catalog Number: Y7-179982

Manufacturer: EATON - MOELLER

Description:

SmartWire-DT function element for encoder
M22-SWD-INC
Eaton Moeller® series M22 Function element, Encoder, Front fixing
Function element, Fixing: Front fixing, Description: Function element SmartWire-DT encoder, Only in conjunction with M22-INC-SWD front element, Connection to SmartWire-DT: yes

Categories:

  • Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology
  • EATON - MOELLER > Auxiliary Control and Signalling Elements

Brand new product in its original packaging covered by the warranties and certifications provided by EATON - MOELLER

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 32,23 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

General specifications

Product Name
Eaton Moeller® series M22 Function element
Catalog Number
179982
Model Code
M22-SWD-INC
EAN
4015081750993
Product Length/Depth
42 mm
Product Height
42 mm
Product Width
12.5 mm
Product Weight
0.009 kg
Certifications
UL File No.: E29184
CSA File No.: 2324643
IEC/EN 61131-2
CSA Class No.: 3211-07
UL Category Control No.: NKCR
CSA
UL
Catalog Notes
Function element SmartWire-DT encoder

General

Accessory/spare part type
Other
Degree of protection
IP20
Overvoltage category
Not applicable
Pollution degree
2

Ambient conditions, mechanical

Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Mounting position
As required
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
70 °C
Environmental conditions
Condensation: prevent with appropriate measures
Relative humidity
9 - 95 % (non-condensing, IEC/EN 60068-2-30)

Electro magnetic compatibility

Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
Burst impulse
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Electromagnetic fields
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
Radio interference class
Class A (EN 55011)

Communication

Connection
SmartWire-DT plug connector SWD4-8SF2-5
Connection to SmartWire-DT
Yes
Connection type
Front fixing
SWD: Plug, 8-pole
LED indicator
Status indication of SmartWire-DT network: Green LED
Station
SmartWire-DT slave, SmartWire-DT network

ETIM for 179982 Low-voltage industrial controls and switchgear (EC002498)

Feature nameType of accessory/spare part (EF000215)
Feature valueOther
Feature nameAccessory (EF013236)
Feature valueNo
Feature nameSpare part (EF013237)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
M22-SWD-INC Y7-179982 179982 IT_115973.pdf
2 Mbytes
PDF EATON COMMAND INDICATION EN
24 Mbytes
PDF CATALOGUE EATON EN
38 Mbytes
