EATON - MOELLER M22-R-SWD 179292 Y7-179292 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

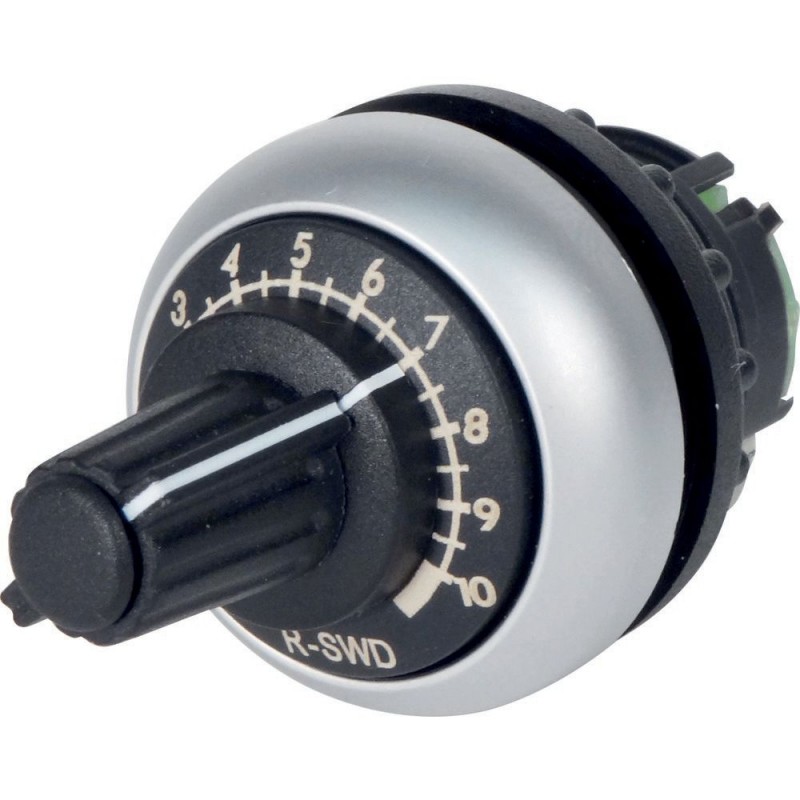

M22-R-SWD 179292 Y7-179292 EATON ELECTRIC Potentiometer, SWD ready, Front mount

Reference: M22-R-SWD

Code: 179292

Catalog Number: Y7-179292

Manufacturer: EATON - MOELLER

Description:

Potentiometer, SWD ready, Front mount
M22-R-SWD
Eaton Moeller® series M22 Potentiometer, Classical, M22, 22.5 mm, Bezel: titanium
Potentiometer, Subrange: SmartWire-DT RMQ connections, RMQ design: Classical, Part group reference (e.g. DIL): M22, Mounting hole diameter: 22.5 mm, Description: Front element SmartWire-DT potentiometer, Only in conjunction with M22-SWD-R function element, Function: For connecting to SmartWire-DT, Degree of Protection: IP65, Bezel: titanium, Connection to SmartWire-DT: yes, For use with: M22-SWD-R, Standards: IEC/EN 60947

Categories:

  • Low-voltage industrial components > Potentiometer for command devices
  • EATON - MOELLER > Auxiliary Control and Signalling Elements

Brand new product in its original packaging covered by the warranties and certifications provided by EATON - MOELLER

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 38,46 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

General specifications

Product Name
Eaton Moeller® series M22 Potentiometer
Catalog Number
179292
Model Code
M22-R-SWD
EAN
4015081743780
Product Length/Depth
48 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.019 kg
Certifications
IEC/EN 60947
CSA File No.: 2324643
CSA Class No.: 3211-07
CSA
UL File No.: E29184
UL Category Control No.: NKCR
UL

ETIM for 179292 Low-voltage industrial controls and switchgear (EC001027)

Feature nameResistance (EF002431)
Feature value0 Ohm
Feature namePower consumption (EF000346)
Feature value0 W
Feature nameHole diameter (EF000079)
Feature value22.5 mm
Feature nameNumber of revolutions (EF006943)
Feature value1
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
