EATON - MOELLERAuxiliary Control and Signalling ElementsM22-INC-SWD 179981 Y7-179981 EATON ELECTRIC Encoder, front element for SmartWire-DT

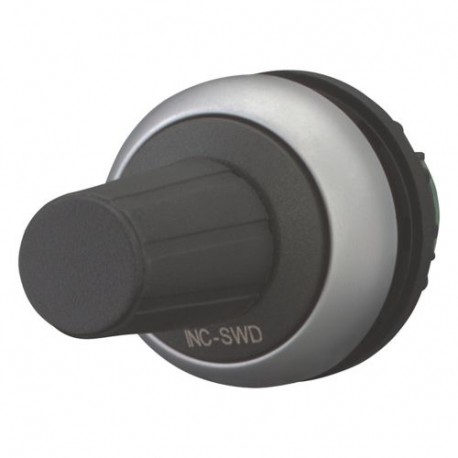

EATON - MOELLER M22-INC-SWD 179981 Y7-179981 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

M22-INC-SWD 179981 Y7-179981 EATON ELECTRIC Encoder, front element for SmartWire-DT

Reference: M22-INC-SWD

Code: 179981

Catalog Number: Y7-179981

Manufacturer: EATON - MOELLER

Description:

Encoder, front element for SmartWire-DT
M22-INC-SWD
Front element, Bezel: titanium
Front element, Description: Front element SmartWire-DT encoder, With actuation function, Only in conjunction with M22-SWD-INC function element, Connection to SmartWire-DT: yes

Categories:

  • Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology
  • EATON - MOELLER > Auxiliary Control and Signalling Elements

Brand new product in its original packaging covered by the warranties and certifications provided by EATON - MOELLER

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 41,03 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

General specifications

Product Name
Eaton Moeller® series M22 Front element
Catalog Number
179981
Model Code
M22-INC-SWD
EAN
4015081750986
Product Length/Depth
52.5 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.022 kg
Certifications
CSA Class No.: 3211-07
UL
UL Category Control No.: NKCR
CSA
CSA File No.: 2324643
UL File No.: E29184
IEC/EN 60947
Catalog Notes
Front element SmartWire-DT encoder

Features & Functions

Bezel color
Titanium
Design
Classical
Functions
For connecting to SmartWire-DT
Actuation function

General

Accessory/spare part type
Other
Degree of protection
IP65
Type
Encoder

Ambient conditions, mechanical

Mounting position
As required
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
40 °C
Ambient storage temperature - max
70 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Communication

Connection to SmartWire-DT
Yes

ETIM for 179981 Low-voltage industrial controls and switchgear (EC002498)

Feature nameType of accessory/spare part (EF000215)
Feature valueOther
Feature nameAccessory (EF013236)
Feature valueNo
Feature nameSpare part (EF013237)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
M22-INC-SWD Y7-179981 179981 IT_115973.pdf
2 Mbytes
PDF EATON COMMAND INDICATION EN
24 Mbytes
PDF CATALOGUE EATON EN
38 Mbytes
