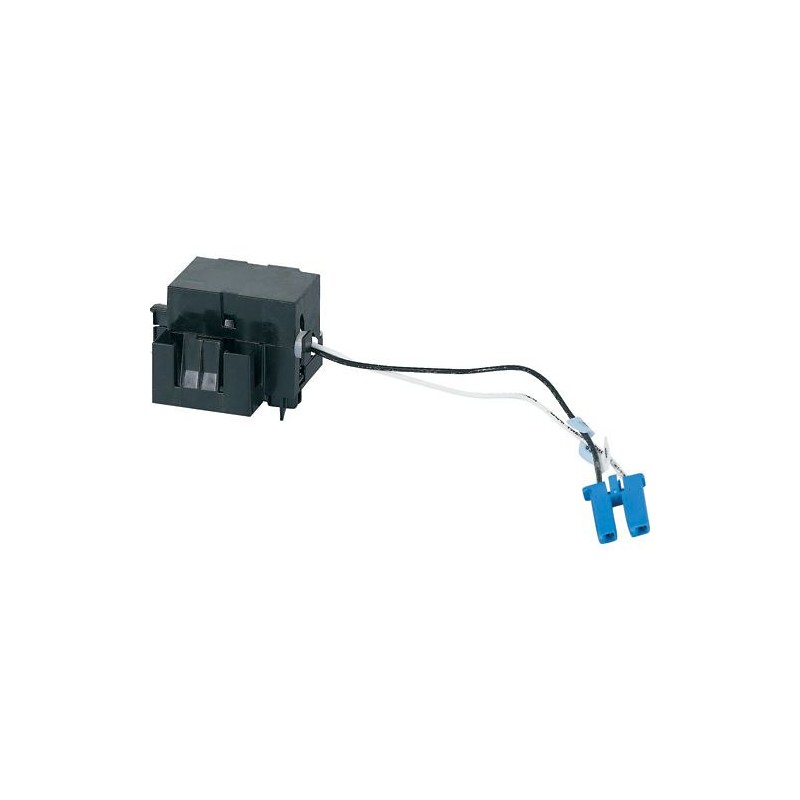

IZMX-SR48DC-1 184283 Y7-184283 EATON ELECTRIC Closing electromagnet 48 VDC
IZMX-SR48DC-1
184283
Y7-184283
EATON-MOELLER
Closing electromagnet 48 VDC
IZMX-SR48DC-1
Eaton Moeller series IZMX/INX - ACB. Closing release 48 VDC, 1
Accessories, closing release, Can be combined with a shunt release and an undervoltage release., Retrofitting kit, Maximum operating frequency Actuations/minute 3, Limited to 3/min due to the high pick-up current for 35 ms., Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 48 V DC V, Operating range x US 0,85 - 1,1 Factor, max. pick-up current (35ms) In 10 A, max. pull-in power (35ms) AC/DC 530 VA/W, Circuit-breaker total switching time @ US=100% 35 ms, For use with IZMX16..., IZMX40..., INX16..., INX40...
Low-voltage industrial components > Shunt release (for power circuit breaker)
Circuit Breakers IZM
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| Rated control supply voltage DC (EF003980) | 48 V |
| Voltage type for actuating (EF008242) | DC |
| Initial value of the undelayed short-circuit release - setting range (EF008187) | 0 A |
| End value adjustment range undelayed short-circuit release (EF008188) | 0 A |
| Power consumption (EF000346) | 530 W |
| Type of electric connection (EF003961) | Flat plug-in connection |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Suitable for power circuit breaker (EF005863) | Yes |
| Suitable for off-load switch (EF001543) | Yes |
| Suitable for motor safety switch (EF005826) | No |
| Suitable for overload relay (EF001545) | Yes |
