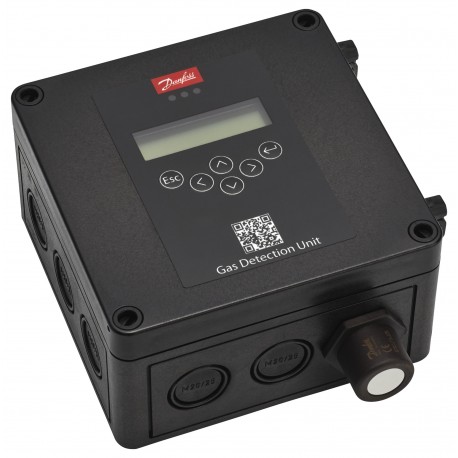

148H6006 DANFOSS REFRIGERATION Gas detection unit, GDA type, Electrochemical sensor, LCD display
148H6006
DANFOSS REFRIGERATION
Gas detection unit, GDA type, Electrochemical sensor, LCD display
GDA Gas detection unit EC 100 Prem Flex.
Gas detection unit, Premium
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Gas detecting sensor version: Premium flex, Sensor 1 type: Electrochemical, Refrig. range [ppm] sensor1: 0 - 100
Product details
| Gross weight | 0.628 Kg |
| Net weight | 0.485 Kg |
| Volume | 3.779 Liter |
| EAN | 5714279919967 |
| Gross weight | 0.628 Kg |
| Net weight | 0.485 Kg |
| Volume | 3.779 Liter |
| EAN | 5714279919967 |
| Alarmlimits high [ppm] sensor1 | 35 ppm |
| Alarmlimits low [ppm] sensor1 | 25 ppm |
| Equipment | LCD Display |
| EU RoHS compliance | No - out of scope |
| Gas detecting sensor version | Premium flex |
| In scope of WEEE and contain batteries | No |
| Packing format | Single pack |
| Parts included | Cable gland Complete unit Mounting kit Calibration certificate |
| Power consumption [A] | 0.21 A |
| Product group | Sensors |
| Product Name Description | Gas detection unit |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrig. range [ppm] sensor1 [max] | 100 ppm |
| Refrig. range [ppm] sensor1 [min] | 0 ppm |
| Refrigerants | R717 |
| Relative humidity (RH) [%] [max] | 90 % |
| Relative humidity (RH) [%] [min] | 15 % |
| Response delay [s] | 0 s |
| Sensor 1 type | Electrochemical |
| Supply voltage [V] DC [max] | 29 V |
| Supply voltage [V] DC [min] | 19 V |
| Temperature range [°C] [max] | 50 °C |
| Temperature range [°C] [min] | -20 °C |
| Temperature range [°F] [max] | 122 °F |
| Temperature range [°F] [min] | -4 °F |
| Type | Premium |
| Alarmlimits high [ppm] sensor1 | 35 ppm |
| Alarmlimits low [ppm] sensor1 | 25 ppm |
| Equipment | LCD Display |
| EU RoHS compliance | No - out of scope |
| Gas detecting sensor version | Premium flex |
| In scope of WEEE and contain batteries | No |
| Packing format | Single pack |
| Parts included | Cable gland Complete unit Mounting kit Calibration certificate |
| Power consumption [A] | 0.21 A |
| Product group | Sensors |
| Product Name Description | Gas detection unit |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrig. range [ppm] sensor1 [max] | 100 ppm |
| Refrig. range [ppm] sensor1 [min] | 0 ppm |
| Refrigerants | R717 |
| Relative humidity (RH) [%] [max] | 90 % |
| Relative humidity (RH) [%] [min] | 15 % |
| Response delay [s] | 0 s |
| Sensor 1 type | Electrochemical |
| Supply voltage [V] DC [max] | 29 V |
| Supply voltage [V] DC [min] | 19 V |
| Temperature range [°C] [max] | 50 °C |
| Temperature range [°C] [min] | -20 °C |
| Temperature range [°F] [max] | 122 °F |
| Temperature range [°F] [min] | -4 °F |
| Type | Premium |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 148H6006 148H6006 EN_148H6216.pdf | 984 Kbytes |
|
