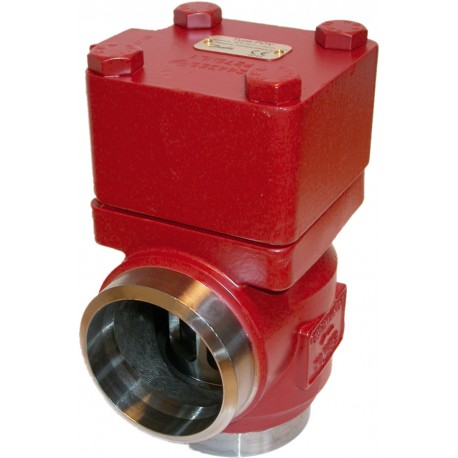

148F3027 DANFOSS REFRIGERATION Compressor overflow valve
148F3027
DANFOSS REFRIGERATION
Compressor overflow valve
POV 1050 BUTT WELDNG, ANSI DN65 ANG
Compressor overflow valve, POV 1050, Butt weld, 25 bar
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Butt weld ANSI, Connection type: Butt weld, Inlet connection size [mm]: 65, Outlet connection size [mm]: 65, Inlet connection size [in]: 2 1/2 in, Outlet connection size [in]: 2 1/2 in
Product details
| Gross weight | 6.684 Kilogram |
| Net weight | 6.55 Kilogram |
| Volume | 6.279 Liter |
| EAN | 5702428342773 |
| Type | POV 1050 |
| Product group | Safety relief valves |
| Product Name Description | Compressor overflow valve |
| Gross weight | 6.684 Kilogram |
| Net weight | 6.55 Kilogram |
| Volume | 6.279 Liter |
| EAN | 5702428342773 |
| Type | POV 1050 |
| Product group | Safety relief valves |
| Product Name Description | Compressor overflow valve |
| Approval | CE EAC LLC CDC TYSK |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection size [in] | 2 1/2 in |
| Connection size [mm] | 65 mm |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Connection type | Butt weld |
| Contains batteries | No |
| Direction | Angleway |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow area [in2] | 1.93 in² |
| Flow area [mm2] | 1244 mm² |
| Flow diameter [in] | 1.56 in |
| Flow diameter [mm] | 40 mm |
| Fluid Group | 1 |
| Inlet connection size [in] | 2 1/2 in |
| Inlet connection size [mm] | 65 mm |
| Inlet connection type | Butt weld ANSI |
| Max. Working Pressure [bar] | 40 bar |
| Max. Working Pressure [psig] | 580 psig |
| Outlet connection size [in] | 2 1/2 in |
| Outlet connection size [mm] | 65 mm |
| Packing format | Single pack |
| PED category | II |
| Pressure certificate | TÜV certificate included |
| Pressure setting [bar] | 25 bar |
| Pressure setting [psig] | 363 psig |
| Product description | Pressure-operated pilot valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R170 R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R600 R600a R717 R744 R507A R1234yf R1234ze(E) R125 R152a R227ea R236fa R245fa R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A |
| Temp. range with POV [°C] [max] | 150 °C |
| Temp. range with POV [°C] [min] | -50 °C |
| Temp. range with POV [°F] [max] | 302 °F |
| Temp. range with POV [°F] [min] | -58 °F |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -58 °F |
| Approval | CE EAC LLC CDC TYSK |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection size [in] | 2 1/2 in |
| Connection size [mm] | 65 mm |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Connection type | Butt weld |
| Contains batteries | No |
| Direction | Angleway |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow area [in2] | 1.93 in² |
| Flow area [mm2] | 1244 mm² |
| Flow diameter [in] | 1.56 in |
| Flow diameter [mm] | 40 mm |
| Fluid Group | 1 |
| Inlet connection size [in] | 2 1/2 in |
| Inlet connection size [mm] | 65 mm |
| Inlet connection type | Butt weld ANSI |
| Max. Working Pressure [bar] | 40 bar |
| Max. Working Pressure [psig] | 580 psig |
| Outlet connection size [in] | 2 1/2 in |
| Outlet connection size [mm] | 65 mm |
| Packing format | Single pack |
| PED category | II |
| Pressure certificate | TÜV certificate included |
| Pressure setting [bar] | 25 bar |
| Pressure setting [psig] | 363 psig |
| Product description | Pressure-operated pilot valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R170 R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R600 R600a R717 R744 R507A R1234yf R1234ze(E) R125 R152a R227ea R236fa R245fa R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A |
| Temp. range with POV [°C] [max] | 150 °C |
| Temp. range with POV [°C] [min] | -50 °C |
| Temp. range with POV [°F] [max] | 302 °F |
| Temp. range with POV [°F] [min] | -58 °F |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -58 °F |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 148F3027 148F3027 EN_148H3453.pdf | 4 Mbytes |
|
