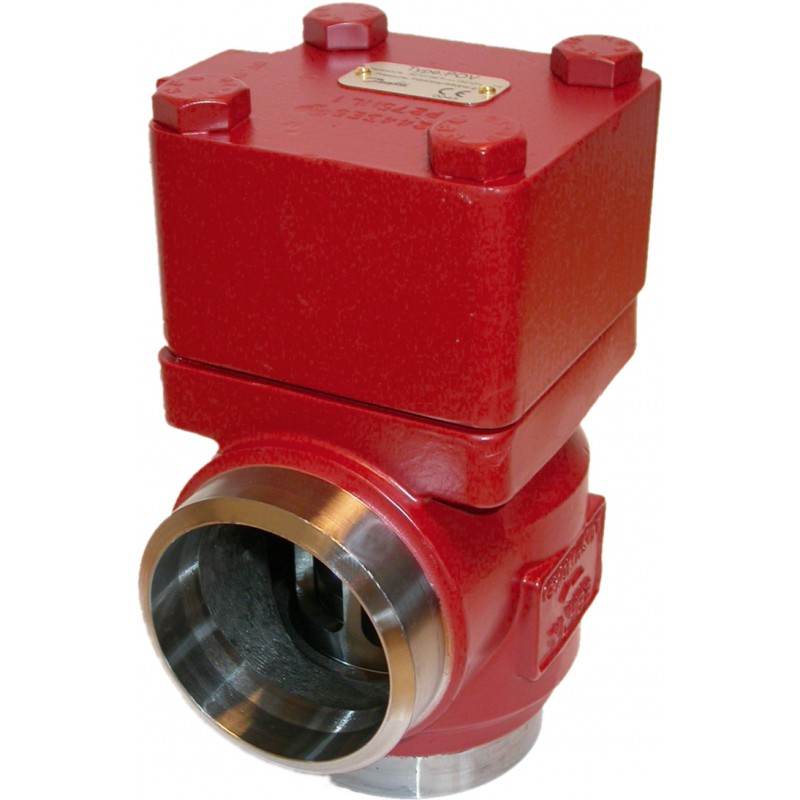

DANFOSS REFRIGERATION 148F3026 148F3026 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

148F3026 DANFOSS REFRIGERATION Compressor overflow valve

Name: 148F3026 DANFOSS REFRIGERATION Compressor overflow valve
Brand: DANFOSS REFRIGERATION
SKU: DAO148F3026
Price: 1304.34 USD
Availability: OutOfStock

Reference: 148F3026

Manufacturer: DANFOSS REFRIGERATION

Description:

Compressor overflow valve

POV 1050 BUTT WELD, POV DIN DN 65 ANG

Compressor overflow valve, POV 1050, Butt weld, 25 bar

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 1.165,19 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Inlet connection type: Butt weld DIN, Connection type: Butt weld, Inlet connection size [mm]: 65, Outlet connection size [mm]: 65, Inlet connection size [in]: 2 1/2 in, Outlet connection size [in]: 2 1/2 in

Product details

Gross weight	6.772 Kilogram
Net weight	6.65 Kilogram
Volume	5.899 Liter
EAN	5702428342766

Type	POV 1050
Product group	Safety relief valves
Product Name Description	Compressor overflow valve

Gross weight	6.772 Kilogram
Net weight	6.65 Kilogram
Volume	5.899 Liter
EAN	5702428342766
Type	POV 1050
Product group	Safety relief valves
Product Name Description	Compressor overflow valve

Approval	CE EAC LLC CDC TYSK
CE mark	Yes
China RoHS compliance	Yes
China RoHS exemption clause	No
Connection standard	EN 10220
Connection type	Butt weld
Contains batteries	No
Direction	Angleway
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Flow area [in2]	1.93 in²
Flow area [mm2]	1244 mm²
Flow diameter [in]	1.56 in
Flow diameter [mm]	40 mm
Fluid Group	1
Inlet connection size [in]	2 1/2 in
Inlet connection size [mm]	65 mm
Inlet connection type	Butt weld DIN
Max. Working Pressure [bar]	40 bar
Max. Working Pressure [psig]	580 psig

Outlet connection size [in]	2 1/2 in
Outlet connection size [mm]	65 mm
Packing format	Single pack
PED category	II
Pressure certificate	TÜV certificate included
Pressure setting [bar]	25 bar
Pressure setting [psig]	363 psig
Product description	Pressure-operated pilot valve
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R134a R170 R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R600 R600a R717 R744 R507A R1234yf R1234ze(E) R125 R152a R227ea R236fa R245fa R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A
Temp. range with POV [°C] [max]	150 °C
Temp. range with POV [°C] [min]	-50 °C
Temp. range with POV [°F] [max]	302 °F
Temp. range with POV [°F] [min]	-58 °F
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	-58 °F

Approval	CE EAC LLC CDC TYSK
CE mark	Yes
China RoHS compliance	Yes
China RoHS exemption clause	No
Connection standard	EN 10220
Connection type	Butt weld
Contains batteries	No
Direction	Angleway
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Flow area [in2]	1.93 in²
Flow area [mm2]	1244 mm²
Flow diameter [in]	1.56 in
Flow diameter [mm]	40 mm
Fluid Group	1
Inlet connection size [in]	2 1/2 in
Inlet connection size [mm]	65 mm
Inlet connection type	Butt weld DIN
Max. Working Pressure [bar]	40 bar
Max. Working Pressure [psig]	580 psig
Outlet connection size [in]	2 1/2 in
Outlet connection size [mm]	65 mm
Packing format	Single pack
PED category	II
Pressure certificate	TÜV certificate included
Pressure setting [bar]	25 bar
Pressure setting [psig]	363 psig
Product description	Pressure-operated pilot valve
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R134a R170 R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R600 R600a R717 R744 R507A R1234yf R1234ze(E) R125 R152a R227ea R236fa R245fa R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A
Temp. range with POV [°C] [max]	150 °C
Temp. range with POV [°C] [min]	-50 °C
Temp. range with POV [°F] [max]	302 °F
Temp. range with POV [°F] [min]	-58 °F
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	-58 °F

DATASHEET - PDF

Title

Size

Type

148F3026 148F3026 EN_148H3453.pdf

4 Mbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
