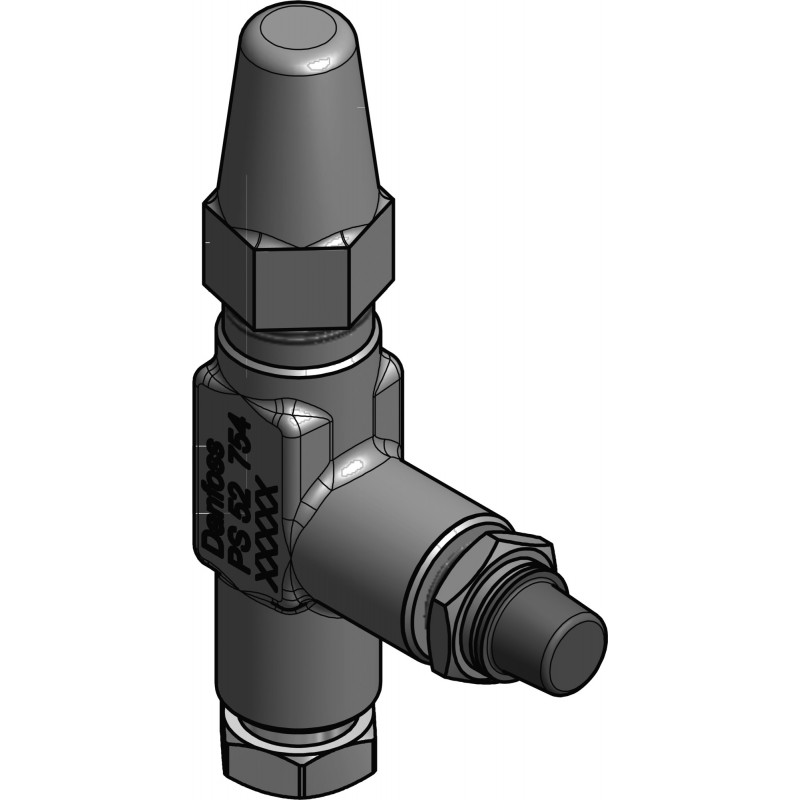

148B6607 DANFOSS REFRIGERATION SNV-ST Service kit for ICFD
148B6607
DANFOSS REFRIGERATION
SNV-ST Service kit for ICFD
Gauge valve, SNV-ST
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: NPT, Outlet connection type: NPT, Inlet connection size [in]: 3/8
Product details
| Gross weight | 0.56 Kilogram |
| Net weight | 0.559 Kilogram |
| Volume | 0.884 Liter |
| EAN | 5702428989602 |
| Type | SNV-ST |
| Product group | Shut-off and regulating valves |
| Product Name Description | Gauge valve |
| Gross weight | 0.56 Kilogram |
| Net weight | 0.559 Kilogram |
| Volume | 0.884 Liter |
| EAN | 5702428989602 |
| Type | SNV-ST |
| Product group | Shut-off and regulating valves |
| Product Name Description | Gauge valve |
| Approval | EAC LLC CDC TYSK TÜV |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Colour Paint | Cr3 / TLP |
| Connection standard | ANSI/ASME B1.20.1 |
| Contains batteries | No |
| Direction | Angleway |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fluid Group | 1 |
| Inlet connection size [in] | 3/8 |
| Inlet connection type | NPT |
| Inlet Internal/External | Internal |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Outlet connection size [in] | 3/8 |
| Outlet connection type | NPT |
| Outlet Internal/External | Internal |
| Packing format | Multi pack |
| PED category | Art. 3, par. 3 |
| Product description | Stop needle valve |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | No |
| Refrigerants | R113 R114 R1233zd(E) R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) R134a R152a R170 R22 R227ea R23 R236fa R290 R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R417A R421A R422A R422B R422D R427A R438A R444B R447A R448A R449A R449B R450A R452A R454B R455A R502 R503 R513A R600 R600a R717 R744 RE170 R507A |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Valve version | Standard version |
| Approval | EAC LLC CDC TYSK TÜV |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Colour Paint | Cr3 / TLP |
| Connection standard | ANSI/ASME B1.20.1 |
| Contains batteries | No |
| Direction | Angleway |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fluid Group | 1 |
| Inlet connection size [in] | 3/8 |
| Inlet connection type | NPT |
| Inlet Internal/External | Internal |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Outlet connection size [in] | 3/8 |
| Outlet connection type | NPT |
| Outlet Internal/External | Internal |
| Packing format | Multi pack |
| PED category | Art. 3, par. 3 |
| Product description | Stop needle valve |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | No |
| Refrigerants | R113 R114 R1233zd(E) R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) R134a R152a R170 R22 R227ea R23 R236fa R290 R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R417A R421A R422A R422B R422D R427A R438A R444B R447A R448A R449A R449B R450A R452A R454B R455A R502 R503 R513A R600 R600a R717 R744 RE170 R507A |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -76 °F |
| Valve version | Standard version |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 148B6607 148B6607 EN_027L1261.pdf | 2 Mbytes |
|
