> DANFOSS REFRIGERATION>120H0941 DANFOSS REFRIGERATION Scroll compressor, PSH039A4CLC
Previous Product Next Product

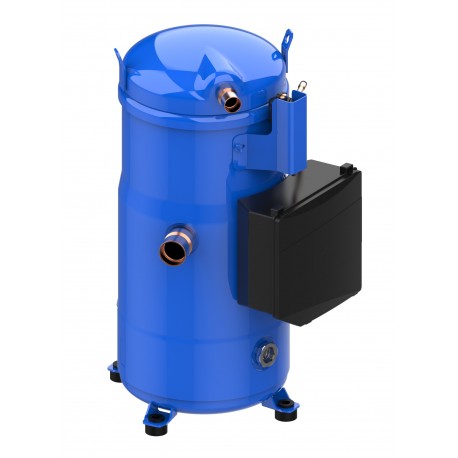

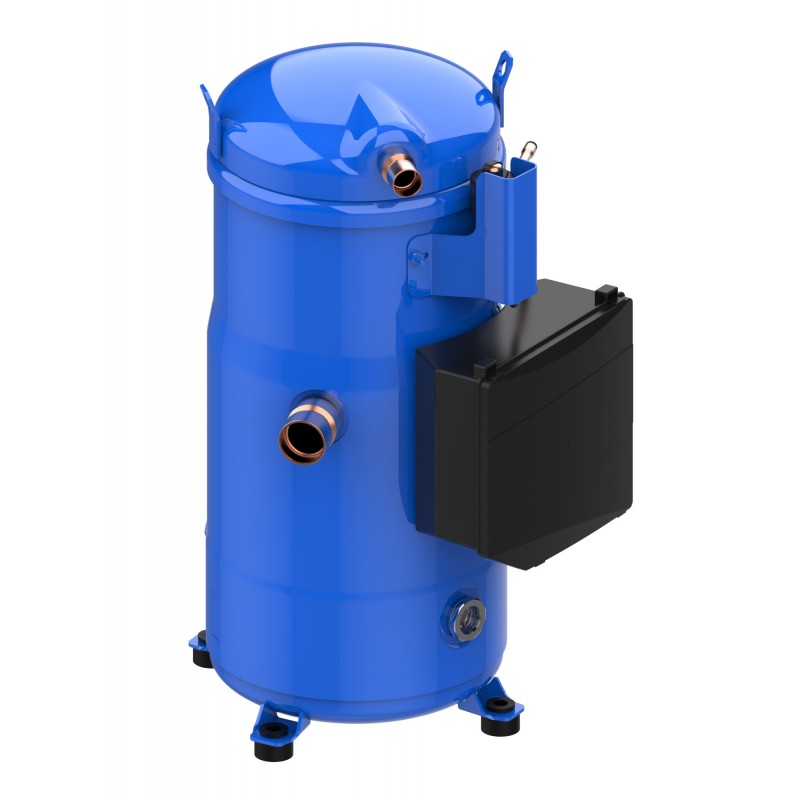

120H0941 DANFOSS REFRIGERATION Scroll compressor, PSH039A4CLC View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

120H0941 DANFOSS REFRIGERATION Scroll compressor, PSH039A4CLC

120H0941

DANFOSS REFRIGERATION

Scroll compressor, PSH039A4CLC

More details


Home > DANFOSS REFRIGERATION

* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Refrigerants: R410A, Segment usage: Heating, Compressor power supply [V]: 380-415/3/50 460/3/60, Packing format: Single pack

Product details

Gross weight76.25 Kg
Net weight72 Kg
Volume0.23 Cubic.mtr
EAN5702424539931
Gross weight76.25 Kg
Net weight72 Kg
Volume0.23 Cubic.mtr
EAN5702424539931

ApprovalCE
UL
UKCA
Brand techniqueScroll compressor
Capacity controlFixed speed
ColourBlue
Compressor power supply [V]380-415/3/50 460/3/60
Configuration codeSingle
Connection typeBrazed
DescriptionPSH039-4
Diameter [mm]245 mm
Discharge connection height [mm]451 mm
Discharge connection pipe size [in]7/8 in
Discharge connection size [in]7/8 in
Drawing number8560054a
EconomizerNo
EU RoHS complianceYes with exemptions
Factory HP [bar]0 bar
Factory LP [bar]0 bar
FamilyPSH
Fitting standardODF
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPSchrader
Glass mountingThreaded
Glass torque [Nm]50 N-m
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume0.7 L
High value of nominal voltage at 50Hz [V]400 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]440 V
High value of voltage range at 60Hz [V]506 V
In scope of WEEE and contain batteriesNo
IP protection classIP54 (with cable gland)
Low Side TS Max55 °C
Low Side TS Min-35 °C
Low Side Volume13.9 L
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]340 V
Low value of voltage range at 60Hz [V]414 V
LRA197 A
Max pressure (PS) - high side48.7 bar
Max pressure (PS) - low side33.3 bar
Maximum Operating Current [MOC]36 A
MCC38.6 A
Model numberPSH039A4CLD
Motor protectionInternal overload protector
Mounting torque [Nm]0 N-m
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Number of starts per hour [Max]12
Oil charge [L]3.6 L
Oil equalization1-3/4'' Rotolock
Oil reference160SZ
Oil typePOE
Packaging height [mm]596 mm
Packaging length [mm]470 mm
Packaging weight [Kg]73 kg
Packaging width [mm]370 mm
Packing formatSingle pack
Packing quantity1
Phase3
Power connectionsScrew 4.8 mm
Product groupHermetic compressors
Product Name DescriptionScroll compressor PSH
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]7.9 kg
RefrigerantsR410A
Relief valveNone
RLA27.6 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
SCIP dossier no.d34ab22c-47b3-49c1-9951-6c68f577996f
Segment usageHeating
Shipped instructionsInstallation instructions
Shipped moduledischarge temperature sensor
liquid injection valve
Operating control system (OCS) mounted in terminal box
surface sump heater
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]235 mm
Suction connection material-
Suction connection pipe size [in]1 3/8 in
Suction connection size [in]1 3/8 in
Swept volume [cm3]170.3 cm³
TechnologyScroll
Test dif [bar] [Max]37 bar
Test HP [bar] [Max]48.7 bar
Test LP [bar] [Max]33.3 bar
Torque earth [Nm]2 N-m
Torque power [Nm]3 N-m
Total height [mm]485 mm
TypePSH039
Viscosity [cP]32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]0.83 Ohm
ApprovalCE
UL
UKCA
Brand techniqueScroll compressor
Capacity controlFixed speed
ColourBlue
Compressor power supply [V]380-415/3/50 460/3/60
Configuration codeSingle
Connection typeBrazed
DescriptionPSH039-4
Diameter [mm]245 mm
Discharge connection height [mm]451 mm
Discharge connection pipe size [in]7/8 in
Discharge connection size [in]7/8 in
Drawing number8560054a
EconomizerNo
EU RoHS complianceYes with exemptions
Factory HP [bar]0 bar
Factory LP [bar]0 bar
FamilyPSH
Fitting standardODF
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPSchrader
Glass mountingThreaded
Glass torque [Nm]50 N-m
High Side TS Max150 °C
High Side TS Min-35 °C
High Side Volume0.7 L
High value of nominal voltage at 50Hz [V]400 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]440 V
High value of voltage range at 60Hz [V]506 V
In scope of WEEE and contain batteriesNo
IP protection classIP54 (with cable gland)
Low Side TS Max55 °C
Low Side TS Min-35 °C
Low Side Volume13.9 L
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]340 V
Low value of voltage range at 60Hz [V]414 V
LRA197 A
Max pressure (PS) - high side48.7 bar
Max pressure (PS) - low side33.3 bar
Maximum Operating Current [MOC]36 A
MCC38.6 A
Model numberPSH039A4CLD
Motor protectionInternal overload protector
Mounting torque [Nm]0 N-m
Network power supply [V/Ph/Hz]380-415/3/50 460/3/60
Number of starts per hour [Max]12
Oil charge [L]3.6 L
Oil equalization1-3/4'' Rotolock
Oil reference160SZ
Oil typePOE
Packaging height [mm]596 mm
Packaging length [mm]470 mm
Packaging weight [Kg]73 kg
Packaging width [mm]370 mm
Packing formatSingle pack
Packing quantity1
Phase3
Power connectionsScrew 4.8 mm
Product groupHermetic compressors
Product Name DescriptionScroll compressor PSH
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Refrigerant charge [kg] [Max]7.9 kg
RefrigerantsR410A
Relief valveNone
RLA27.6 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
SCIP dossier no.d34ab22c-47b3-49c1-9951-6c68f577996f
Segment usageHeating
Shipped instructionsInstallation instructions
Shipped moduledischarge temperature sensor
liquid injection valve
Operating control system (OCS) mounted in terminal box
surface sump heater
Shipped mountingMounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oilInitial oil charge
Suction connection height [mm]235 mm
Suction connection material-
Suction connection pipe size [in]1 3/8 in
Suction connection size [in]1 3/8 in
Swept volume [cm3]170.3 cm³
TechnologyScroll
Test dif [bar] [Max]37 bar
Test HP [bar] [Max]48.7 bar
Test LP [bar] [Max]33.3 bar
Torque earth [Nm]2 N-m
Torque power [Nm]3 N-m
Total height [mm]485 mm
TypePSH039
Viscosity [cP]32 cP
Winding resistance for three-phase compressors with identical windings [Ohm]0.83 Ohm

Datasheet - PDF

▲
Title: Size: Type:
120H0941 120H0941 ES_120H0931.pdf 651 Kbytes 120H0941 120H0941 ES_120H0931.pdf
