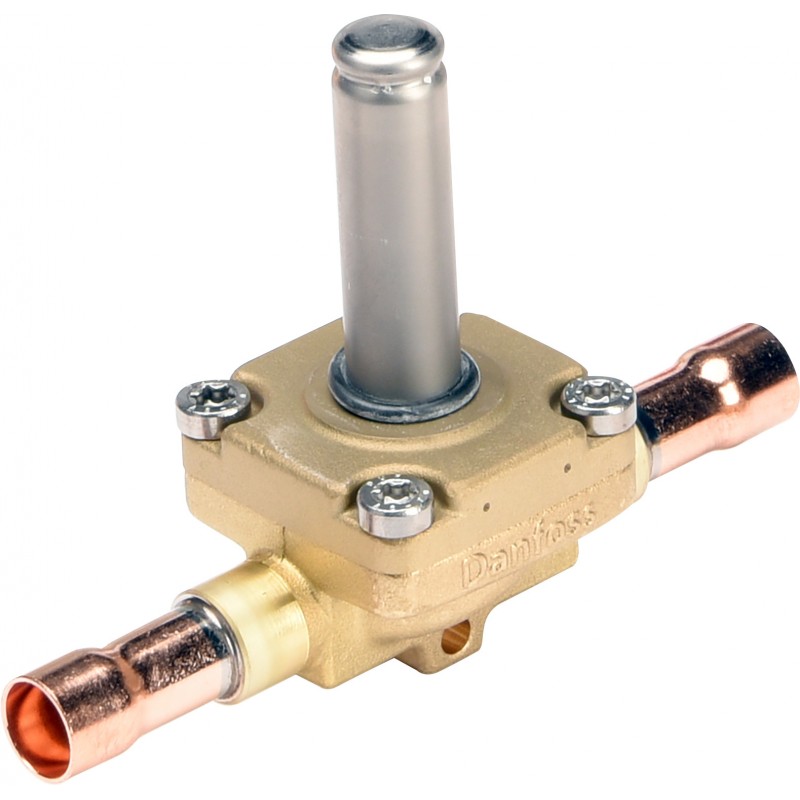

032L3133 DANFOSS REFRIGERATION Solenoid valve, EVR 10
032L3133
DANFOSS REFRIGERATION
Solenoid valve, EVR 10
Solenoid valve, EVR 10, Solder, ODF, Function: NC
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Kv value [m³/h]: 2.200, Packing format: Multi pack
Product details
| Gross weight | 0.821 Kg |
| Net weight | 0.648 Kg |
| Volume | 2.198 Liter |
| EAN | 5702428950503 |
| Gross weight | 0.821 Kg |
| Net weight | 0.648 Kg |
| Volume | 2.198 Liter |
| EAN | 5702428950503 |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | EAC |
| Coil | Yes |
| Coil connection | Connection Box |
| Coil type | BE230AS |
| Cv value [gal/min] | 2.6 gal/min |
| Direction | Straightway |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| Frequency [Hz] | 50 Hz |
| Function | NC |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Solder, ODF |
| Inlet size [mm] | 12 mm |
| Kv value [m³/h] | 2.2 m³/h |
| Lubricants compatibility | AB PAG PAO POE PVE MO |
| Manual operation option | No |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[bar] 20W DC | 20 bar |
| MaxOPD[bar] coil BJ/BX | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| MaxOPD[psi] 20W DC | 290 psi |
| MaxOPD[psi] coil BJ/BX | 550 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.03 bar |
| MinODP [psi] | 0.44 psi |
| MOPD[bar/psi] | Coil Dependend |
| Orifice size [mm] | 10 mm |
| Outlet connection type | Solder, ODF |
| Outlet size [mm] | 12 mm |
| Packing format | Multi pack |
| Parts Program name | EVR |
| Power consumption | 11-12 W |
| Power consumption [W] 50Hz | 12 W |
| Product accessories | Solenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 9 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf R125 R134a R152a R22 R290 R32 R404A R407A R407C R407F R410A R417A R448A R449A R450A R452A R600 R600a R1234ze(E) R407H R413A R422A R422B R422D R438A R444B R447A R449B R452B R454B R454C R455A R463A R513A R513B R515A R515B R516A R442A R447B R512A R454A R507A |
| SCIP dossier no. | 29cb9379-b48f-46b9-9360-0837e10ce0bf |
| SCIP dossier product name | EVR 10-22/EVO 103/EVRC/EVRH 10-20 (NC) |
| Serviceable | Solenoid valve spare parts |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage 50Hz Min [V] | 220 V |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 220 V |
| Type | EVR 10 |
| Type designation | Solenoid valve, Solder |
| UL approved refrigerants | R290 R600 R600a |
| Valve operation | Servo-diaphragm |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | EAC |
| Coil | Yes |
| Coil connection | Connection Box |
| Coil type | BE230AS |
| Cv value [gal/min] | 2.6 gal/min |
| Direction | Straightway |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| Frequency [Hz] | 50 Hz |
| Function | NC |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Solder, ODF |
| Inlet size [mm] | 12 mm |
| Kv value [m³/h] | 2.2 m³/h |
| Lubricants compatibility | AB PAG PAO POE PVE MO |
| Manual operation option | No |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[bar] 20W DC | 20 bar |
| MaxOPD[bar] coil BJ/BX | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| MaxOPD[psi] 20W DC | 290 psi |
| MaxOPD[psi] coil BJ/BX | 550 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.03 bar |
| MinODP [psi] | 0.44 psi |
| MOPD[bar/psi] | Coil Dependend |
| Orifice size [mm] | 10 mm |
| Outlet connection type | Solder, ODF |
| Outlet size [mm] | 12 mm |
| Packing format | Multi pack |
| Parts Program name | EVR |
| Power consumption | 11-12 W |
| Power consumption [W] 50Hz | 12 W |
| Product accessories | Solenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 9 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf R125 R134a R152a R22 R290 R32 R404A R407A R407C R407F R410A R417A R448A R449A R450A R452A R600 R600a R1234ze(E) R407H R413A R422A R422B R422D R438A R444B R447A R449B R452B R454B R454C R455A R463A R513A R513B R515A R515B R516A R442A R447B R512A R454A R507A |
| SCIP dossier no. | 29cb9379-b48f-46b9-9360-0837e10ce0bf |
| SCIP dossier product name | EVR 10-22/EVO 103/EVRC/EVRH 10-20 (NC) |
| Serviceable | Solenoid valve spare parts |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage 50Hz Min [V] | 220 V |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 220 V |
| Type | EVR 10 |
| Type designation | Solenoid valve, Solder |
| UL approved refrigerants | R290 R600 R600a |
| Valve operation | Servo-diaphragm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 032L3133 032L3133 ES_032L8085.pdf | 4 Mbytes |
 |
