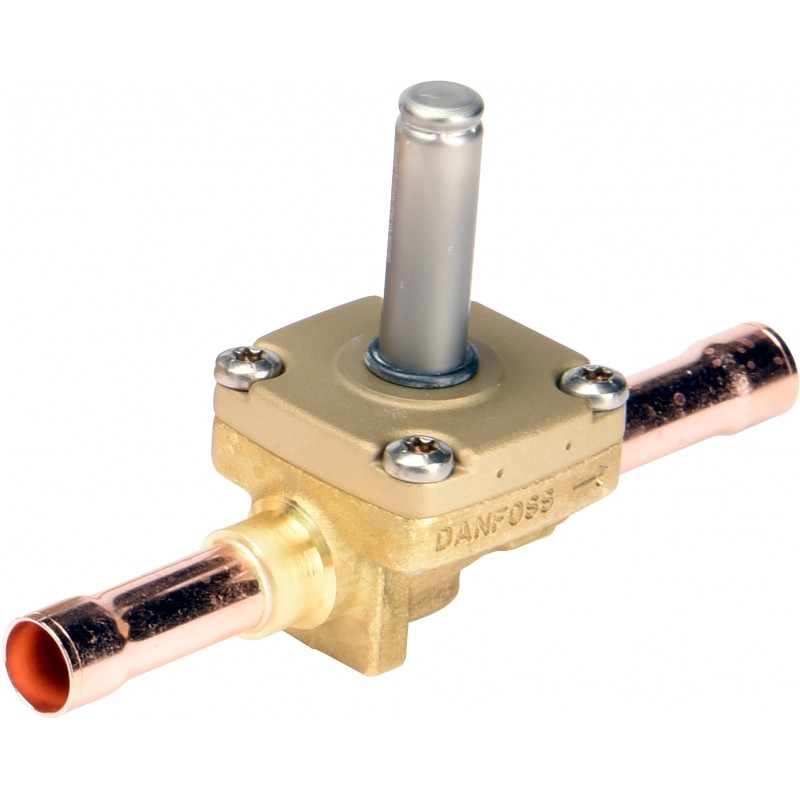

032L1279 DANFOSS REFRIGERATION Solenoid valve
032L1279
DANFOSS REFRIGERATION
Solenoid valve
EVR 20 Valve ODF 28mm no Multi 6
Solenoid valve, EVR 20, Solder, ODF, Function: NO
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Kv value [m³/h]: 6.000, Packing format: Multi pack
Product details
| Gross weight | 1.419 Kg |
| Net weight | 1.038 Kg |
| Volume | 2.959 Liter |
| EAN | 5702428942768 |
| Gross weight | 1.419 Kg |
| Net weight | 1.038 Kg |
| Volume | 2.959 Liter |
| EAN | 5702428942768 |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Approval | UL EAC LLC CDC EURO-TYSK |
| Coil | No |
| Cv value [gal/min] | 6.9 gal/min |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| Function | NO |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Solder, ODF |
| Inlet size [mm] | 28 mm |
| Kv value [m³/h] | 6 m³/h |
| Lubricants compatibility | AB PAG PAO POE PVE MO |
| Manual operation option | No |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 20W DC | 21 bar |
| MaxOPD[bar] coil BJ/BX | 21 bar |
| MaxOPD[psi] 10W AC | 305 psi |
| MaxOPD[psi] 20W DC | 305 psi |
| MaxOPD[psi] coil BJ/BX | 305 psi |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.03 bar |
| MinODP [psi] | 0.44 psi |
| MWP [bar] PED compliant | 49 bar |
| Orifice size [mm] | 22 mm |
| Outlet connection type | Solder, ODF |
| Outlet size [mm] | 28 mm |
| Packing format | Multi pack |
| Parts Program name | EVR |
| Product accessories | Solenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf R125 R134a R152a R22 R290 R32 R404A R407A R407C R407F R410A R417A R448A R449A R450A R452A R600 R600a R513A R452B R454B R1234ze(E) R407H R413A R422A R422B R422D R438A R444B R447A R449B R454C R455A R463A R513B R515A R515B R516A R442A R447B R512A R454A R507A |
| SCIP dossier no. | 7d4d3ef3-e2d2-40aa-a84a-0a3286c91c98 |
| SCIP dossier product name | EVR 2-8/EVO 100-102 (NC) |
| Serviceable | Solenoid valve spare parts |
| Type | EVR 20 |
| Type designation | Solenoid valve, Solder |
| UL approved refrigerants | R125 R134a R152a R22 R404A R407A R407C R407F R407H R410A R413A R417A R422A R422B R422D R438A R442A R447A R447B R448A R449A R449B R450A R452A R455A R463A R507A R512A R513A R513B R515A R515B R516A R290 R600 R600a |
| Valve operation | Servo-diaphragm |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Approval | UL EAC LLC CDC EURO-TYSK |
| Coil | No |
| Cv value [gal/min] | 6.9 gal/min |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| Function | NO |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Solder, ODF |
| Inlet size [mm] | 28 mm |
| Kv value [m³/h] | 6 m³/h |
| Lubricants compatibility | AB PAG PAO POE PVE MO |
| Manual operation option | No |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 20W DC | 21 bar |
| MaxOPD[bar] coil BJ/BX | 21 bar |
| MaxOPD[psi] 10W AC | 305 psi |
| MaxOPD[psi] 20W DC | 305 psi |
| MaxOPD[psi] coil BJ/BX | 305 psi |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.03 bar |
| MinODP [psi] | 0.44 psi |
| MWP [bar] PED compliant | 49 bar |
| Orifice size [mm] | 22 mm |
| Outlet connection type | Solder, ODF |
| Outlet size [mm] | 28 mm |
| Packing format | Multi pack |
| Parts Program name | EVR |
| Product accessories | Solenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf R125 R134a R152a R22 R290 R32 R404A R407A R407C R407F R410A R417A R448A R449A R450A R452A R600 R600a R513A R452B R454B R1234ze(E) R407H R413A R422A R422B R422D R438A R444B R447A R449B R454C R455A R463A R513B R515A R515B R516A R442A R447B R512A R454A R507A |
| SCIP dossier no. | 7d4d3ef3-e2d2-40aa-a84a-0a3286c91c98 |
| SCIP dossier product name | EVR 2-8/EVO 100-102 (NC) |
| Serviceable | Solenoid valve spare parts |
| Type | EVR 20 |
| Type designation | Solenoid valve, Solder |
| UL approved refrigerants | R125 R134a R152a R22 R404A R407A R407C R407F R407H R410A R413A R417A R422A R422B R422D R438A R442A R447A R447B R448A R449A R449B R450A R452A R455A R463A R507A R512A R513A R513B R515A R515B R516A R290 R600 R600a |
| Valve operation | Servo-diaphragm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 032L1279 032L1279 ES_032L8085.pdf | 4 Mbytes |
 |
