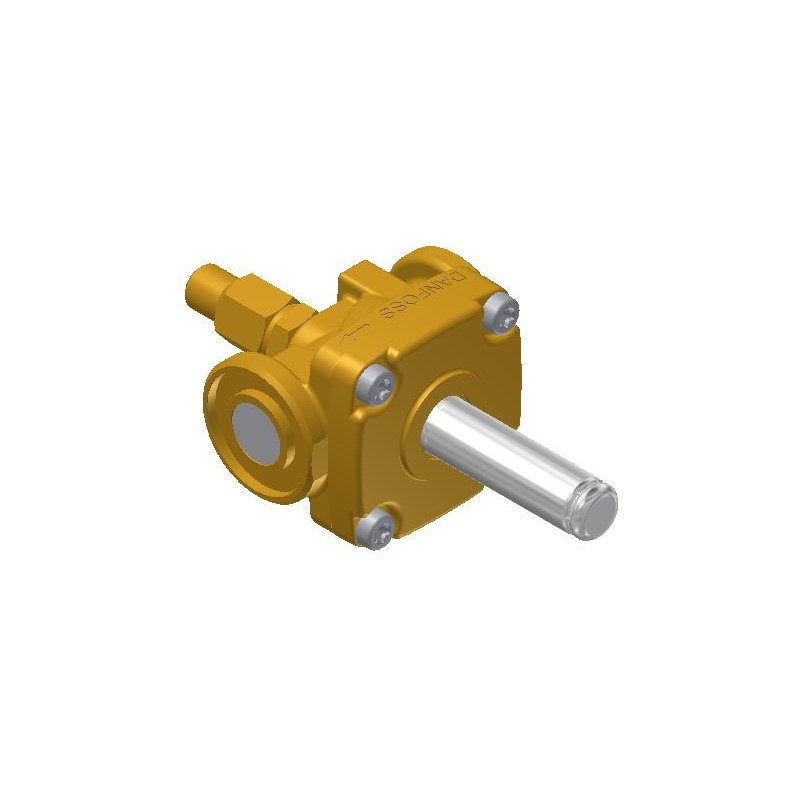

032L1234 DANFOSS REFRIGERATION Solenoid valve
032L1234
DANFOSS REFRIGERATION
Solenoid valve
EVR 15 Flange Valve Multi 6
Solenoid valve, EVR 15, Flange, 3.3 m³/h, Function: NC
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Body material: Brass, Medium temperature range [°C]: -40 - 105, Max. Working Pressure [bar]: 32, Manual operation option: Yes, Packing format: Multi pack, Quantity per packing format: 6
Product details
| Gross weight | 1.105 Kilogram |
| Net weight | 0.879 Kilogram |
| Volume | 3.249 Liter |
| EAN | 5702428952453 |
| Type | EVR 15 |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Gross weight | 1.105 Kilogram |
| Net weight | 0.879 Kilogram |
| Volume | 3.249 Liter |
| EAN | 5702428952453 |
| Type | EVR 15 |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | EAC LLC CDC EURO-TYSK UL |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| Coil | No |
| Contains batteries | No |
| Cv value [gal/min] | 3.8 gal/min |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Fluid Group | 2 |
| Function | NC |
| Inlet connection type | Flange |
| Kv value [m³/h] | 3.3 m³/h |
| Lubricants compatibility | AB MO PAG PAO POE PVE |
| Manual operation option | Yes |
| Max. Working Pressure [bar] | 32 bar |
| Max. Working Pressure [psig] | 460 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[bar] 20W DC | 20 bar |
| MaxOPD[bar] coil BJ/BX | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| MaxOPD[psi] 20W DC | 290 psi |
| MaxOPD[psi] coil BJ/BX | 550 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.03 bar |
| MinODP [psi] | 0.44 psi |
| MOPD[bar/psi] | Coil Dependent |
| Orifice size [mm] | 14 mm |
| Outlet connection type | Flange |
| Packing format | Multi pack |
| Parts Program name | EVR |
| PED category | Art. 4, par. 3 |
| Product accessories | Flanges Solenoid valve accessories |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R125 R134a R22 R404A R407A R407C R407F R407H R410A R413A R417A R422A R422B R422D R438A R442A R447A R447B R448A R449A R449B R450A R452A R455A R463A R507A R512A R513A R513B R515A R515B |
| SCIP dossier no. | 95debbe1-872f-4331-8148-b4a92f85f8c0 |
| SCIP dossier product name | EVR 10-22 |
| Serviceable | Solenoid valve spare parts |
| Type designation | Solenoid valve |
| UL approved refrigerants | R125 R134a R22 R404A R407A R407C R407F R407H R410A R417A R422A R422B R422D R438A R442A R447B R448A R449A R449B R450A R452A R463A R507A R513A R513B R515A R515B |
| UL evaluated | Yes |
| Valve operation | Servo-diaphragm |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | EAC LLC CDC EURO-TYSK UL |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| Coil | No |
| Contains batteries | No |
| Cv value [gal/min] | 3.8 gal/min |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Fluid Group | 2 |
| Function | NC |
| Inlet connection type | Flange |
| Kv value [m³/h] | 3.3 m³/h |
| Lubricants compatibility | AB MO PAG PAO POE PVE |
| Manual operation option | Yes |
| Max. Working Pressure [bar] | 32 bar |
| Max. Working Pressure [psig] | 460 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[bar] 20W DC | 20 bar |
| MaxOPD[bar] coil BJ/BX | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| MaxOPD[psi] 20W DC | 290 psi |
| MaxOPD[psi] coil BJ/BX | 550 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.03 bar |
| MinODP [psi] | 0.44 psi |
| MOPD[bar/psi] | Coil Dependent |
| Orifice size [mm] | 14 mm |
| Outlet connection type | Flange |
| Packing format | Multi pack |
| Parts Program name | EVR |
| PED category | Art. 4, par. 3 |
| Product accessories | Flanges Solenoid valve accessories |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R125 R134a R22 R404A R407A R407C R407F R407H R410A R413A R417A R422A R422B R422D R438A R442A R447A R447B R448A R449A R449B R450A R452A R455A R463A R507A R512A R513A R513B R515A R515B |
| SCIP dossier no. | 95debbe1-872f-4331-8148-b4a92f85f8c0 |
| SCIP dossier product name | EVR 10-22 |
| Serviceable | Solenoid valve spare parts |
| Type designation | Solenoid valve |
| UL approved refrigerants | R125 R134a R22 R404A R407A R407C R407F R407H R410A R417A R422A R422B R422D R438A R442A R447B R448A R449A R449B R450A R452A R463A R507A R513A R513B R515A R515B |
| UL evaluated | Yes |
| Valve operation | Servo-diaphragm |
