DANFOSS REFRIGERATION027H7244 DANFOSS REFRIGERATION Electric regulating valve

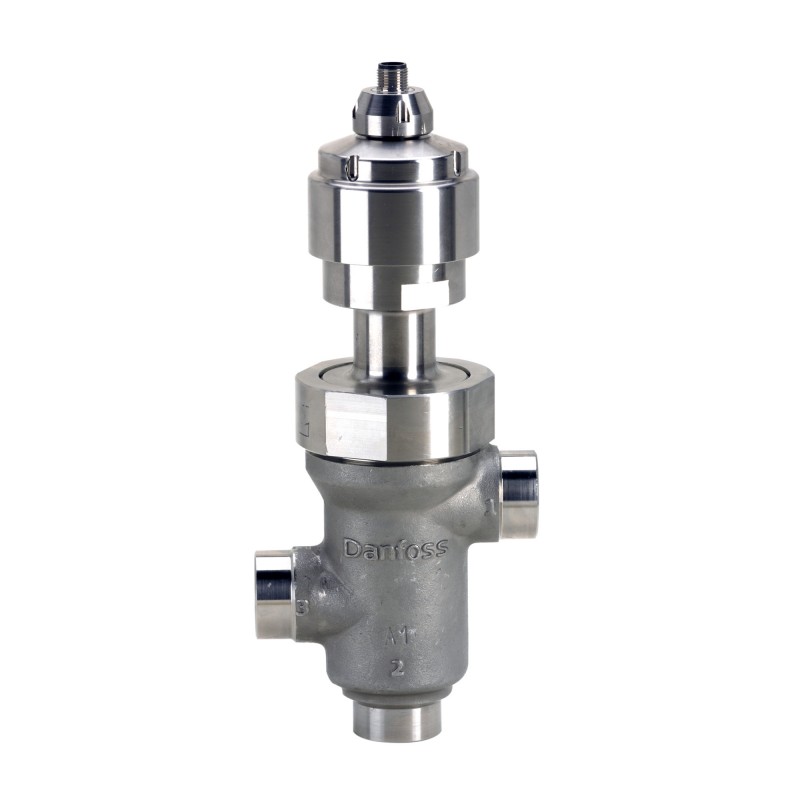

DANFOSS REFRIGERATION 027H7244 027H7244 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

027H7244 DANFOSS REFRIGERATION Electric regulating valve

Reference: 027H7244

Manufacturer: DANFOSS REFRIGERATION

Description:

Electric regulating valve
CTR 20 DN25 Heat reclaim valve
Heat reclaim valve, CTR 20, 1 1/8 in

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 1.757,03 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Refrigerants: R744, Kv value [m³/h]: 20, Max. Working Pressure [bar]: 140, Connection size [mm]: 25, Connection Weld size [in]: 1 in, Packing format: Single pack, Quantity per packing format: 1

Product details

Gross weight3.678 Kilogram
Net weight3.284 Kilogram
Volume7.383 Liter
EAN5702428921176
TypeCTR 20
Product groupPress. and temp. regul. valves
Product Name DescriptionElectric regulating valve
Gross weight3.678 Kilogram
Net weight3.284 Kilogram
Volume7.383 Liter
EAN5702428921176
TypeCTR 20
Product groupPress. and temp. regul. valves
Product Name DescriptionElectric regulating valve

Ambient temperature range [°C] [max]60 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]140 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalEAC
LLC CDC EURO-TYSK
UL Recognized
CE evaluatedYes
China RoHS complianceOut of scope
Connection size [mm]25 mm
Connection Solder size [in]1 1/8 in
Connection standardEN10220
Connection Weld size [in]1 in
Contains batteriesNo
Diff.press.setting range [bar]3 bar
Diff.press.setting range [psi]43 psi
EU RoHS complianceOut of scope
Kv value [m³/h]20 m³/h
Max. Working Pressure [bar]140 bar
Max. Working Pressure [psig]2030 psig
MaxOPD [bar]3 bar
MaxOPD [psig]43 psig
Packing formatSingle pack
Product accessoriesElectric valve accessories
Product descriptionHeat reclaim valve
Quantity per packing format1 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR744
SCIP dossier no.36af83ea-f665-4246-8755-503e1082f91a
SCIP dossier product nameCTR 20
ServiceableElectric valve spare parts
Temperature range [°C] [max]150 °C
Temperature range [°C] [min]0 °C
Temperature range [°F] [max]302 °F
Temperature range [°F] [min]-32 °F
UL approved refrigerantsR744
Ambient temperature range [°C] [max]60 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]140 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalEAC
LLC CDC EURO-TYSK
UL Recognized
CE evaluatedYes
China RoHS complianceOut of scope
Connection size [mm]25 mm
Connection Solder size [in]1 1/8 in
Connection standardEN10220
Connection Weld size [in]1 in
Contains batteriesNo
Diff.press.setting range [bar]3 bar
Diff.press.setting range [psi]43 psi
EU RoHS complianceOut of scope
Kv value [m³/h]20 m³/h
Max. Working Pressure [bar]140 bar
Max. Working Pressure [psig]2030 psig
MaxOPD [bar]3 bar
MaxOPD [psig]43 psig
Packing formatSingle pack
Product accessoriesElectric valve accessories
Product descriptionHeat reclaim valve
Quantity per packing format1 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR744
SCIP dossier no.36af83ea-f665-4246-8755-503e1082f91a
SCIP dossier product nameCTR 20
ServiceableElectric valve spare parts
Temperature range [°C] [max]150 °C
Temperature range [°C] [min]0 °C
Temperature range [°F] [max]302 °F
Temperature range [°F] [min]-32 °F
UL approved refrigerantsR744

DATASHEET - PDF

Title
Size
Type
027H7244 027H7244 ES_027H7244.pdf
1 Mbytes
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
