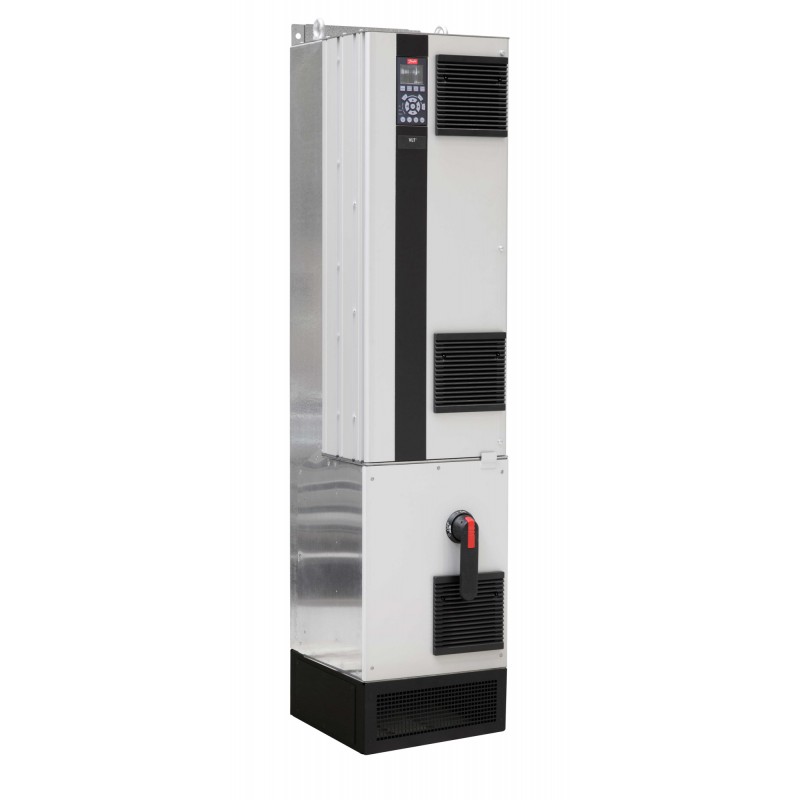

135N1009 FC-302N250T5E2MH2BGC7XXSXXXXA0BKCXXXXDX DANFOSS DRIVES VLT Automation Drive FC- 302 250 KW / 350 HP..
135N1009
FC-302N250T5E2MH2BGC7XXSXXXXA0BKCXXXXDX
DANFOSS DRIVES
VLT Automation Drive FC- 302 250 KW / 350 HP, 380 - 500 VAC, IP21/Type 1+mains shield, RFI Class A2 (C3), Brake chopper FC-302N250T5E2MH2BGC7XXSXXXXA0BKCXXXXDX
Frequency converterFC-302N250T5E2MH2BGC7XXSXXXXA0BKCXXXXDX VLT® AutomationDrive FC-302(N250) 250 KW / 350 HP, Three phase, 380 - 500 VAC, IP21/Type 1+mains shieldRFI FilterBrake chopperGraphical Loc. Cont. PanelCoated PCB, FuseLatest release std. SW.Frame: D7HPROFIBUS DP MCA 101, MCB-101 General purp. I/ONo C1 option, No D optionOther options according to Model code
VLT AUTOMATIONDRIVE FC 302 - DANFOSS DRIVES > VLT AutomationDrive FC 302 IP20 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency converter
FC-302N250T5E2MH2BGC7XXSXXXXA0BKCXXXXDX
VLT® AutomationDrive FC-302
(N250) 250 KW / 350 HP,
Three phase, 380 - 500 VAC, IP21/Type 1+mains shield
RFI Filter
Brake chopper
Graphical Loc. Cont. Panel
Coated PCB, Fuse
Latest release std. SW.
Frame: D7H
PROFIBUS DP MCA 101, MCB-101 General purp. I/O
No C1 option, No D option
Other options according to Model code
Product details
| Gross weight | 125 Kilogram | ||
| Net weight | 125 Kilogram | ||
| EAN | 5710108171810 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AutomationDrive FC- | |
| Series | 302 | 302 | |
| Power Rating | N250 | (N250) 250 KW / 350 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 5 | 380 - 500 VAC | |
| Enclosure | E2M | IP21/Type 1+mains shield | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | B | Brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | 7 | Fuse | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | A0 | PROFIBUS DP MCA 101 | |
| B Option | BK | MCB-101 General purp. I/O | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | D7H | D7H | |
| Typecode Part 1 | FC-302N250T5E2MH2BGC | ||
| Typecode Part 2 | 7XXSXXXXA0BKCXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | 250 | 250 | |
| Power 110% (NO) [KW] | 315 | 315 | |
| Height [mm] | 1978,0 | 1978,0 | |
| Width w/ no C options [mm] | 420,0 | 420,0 | |
| Depth [mm] | 386,0 | 386,0 | |
| Depth with Option A/B [mm] | 386,0 | 386,0 | |
| kVA | 333 | 333 | |
| Power Loss NO [W] | 6674 | 6674 | |
| Power Loss NO [W] | 5714 | 5714 | |
| Power Loss HO [W] | 5004 | 5004 | |
| Power Loss HO [W] | 4458 | 4458 | |
| Continuous Current (NO) [A] | 588 | 588 | |
| Intermittent Current (NO) [A] | 647 | 647 | |
| Continuous Current (NO) [A] | 535 | 535 | |
| Intermittent Current (NO) [A] | 588 | 588 | |
| Continuous Current (HO) [A] | 480 | 480 | |
| Intermittent Current (HO) [A] | 720 | 720 | |
| Continuous Current (HO) [A] | 443 | 443 | |
| Intermittent Current (HO) [A] | 664 | 664 | |
| Calculated Gross Weight [kg] | 200.3 | ||
| Calculated Net Weight [kg] | 200 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-302N250T5E2MH2BGC | ||
| Modelcode02 | 7XXSXXXXA0BKCXXXXDX | ||
| Recommended Plant | ERR01 | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC300SERIES EN 2024.pdf | 44 Mbytes |
|
| PDF CATALOG DANFOSS FC302 EN.pdf | 5 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
