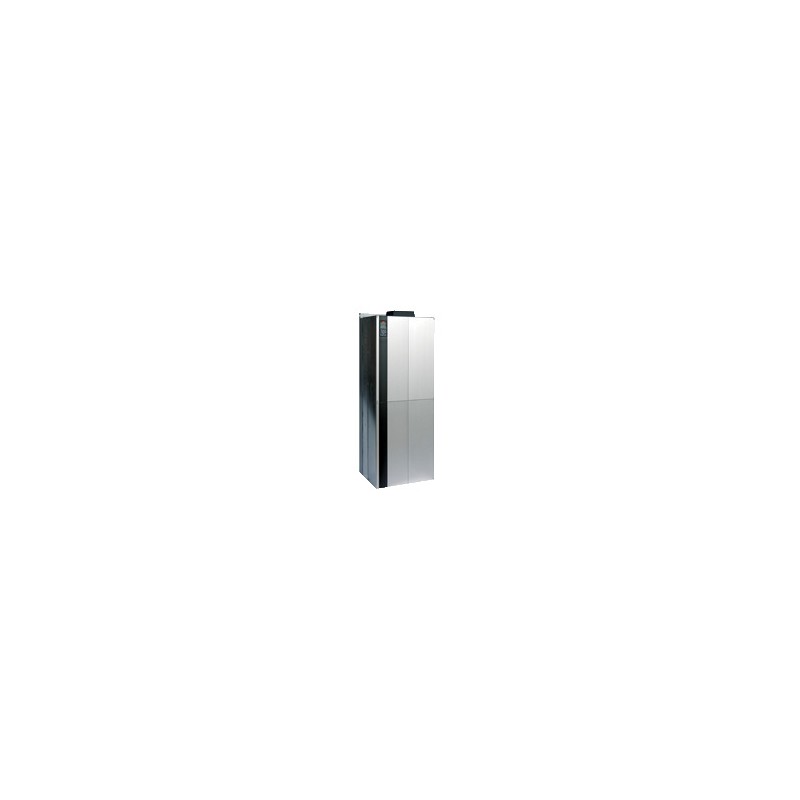

134U0280 DANFOSS DRIVES VLT Automation Drive FC-300
134U0280
DANFOSS DRIVES
VLT Automation Drive FC-300
Frequency converterFC-302P560T7E00H2XGCXXXSXXXXA0BRC4XXXD0 VLT® AutomationDrive FC-302(P560) 560 KW / 750 HP, Three phase, 525 - 690 VAC *, (E00) IP00 / ChassisRFI FilterNo brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: E2PROFIBUS DP MCA 101, MCB-102 Encoder OptionNo C1 option, MCB-107 24V DC backupOther options according to Model code
VLT AUTOMATIONDRIVE FC 302 - DANFOSS DRIVES > VLT AutomationDrive FC 302 IP20 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency converter
FC-302P560T7E00H2XGCXXXSXXXXA0BRC4XXXD0
VLT® AutomationDrive FC-302
(P560) 560 KW / 750 HP,
Three phase, 525 - 690 VAC *, (E00) IP00 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
Frame: E2
PROFIBUS DP MCA 101, MCB-102 Encoder Option
No C1 option, MCB-107 24V DC backup
Other options according to Model code
Product details
| Gross weight | 277.3 Kilogram | ||
| Net weight | 277 Kilogram | ||
| EAN | 5710107962648 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AutomationDrive FC- | |
| Series | 302 | 302 | |
| Power Rating | P560 | (P560) 560 KW / 750 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 7 | 525 - 690 VAC * | |
| Possible rating issue | WARN01 | Possible Rating Issue: | |
| Enclosure | E00 | (E00) IP00 / Chassis | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | A0 | PROFIBUS DP MCA 101 | |
| B Option | BR | MCB-102 Encoder Option | |
| C0 Option MCO | C4 | MCO-305 ( SyncPos) | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D0 | MCB-107 24V DC backup | |
| Frame Size | E2 | E2 | |
| Typecode Part 1 | FC-302P560T7E00H2XGC | ||
| Typecode Part 2 | XXXSXXXXA0BRC4XXXD0 | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | 560 | 560 | |
| Power 110% (NO) [KW] | 630 | 630 | |
| Height [mm] | 1547,0 | 1547,0 | |
| Width w/ no C options [mm] | 585,0 | 585,0 | |
| Depth [mm] | 505,0 | 505,0 | |
| Depth with Option A/B [mm] | 505,0 | 505,0 | |
| kVA | 681 | 681 | |
| Power Loss NO [W] | 8209 | 8209 | |
| Power Loss NO [W] | 8495 | 8495 | |
| Power Loss HO [W] | 7383 | 7383 | |
| Power Loss HO [W] | 7633 | 7633 | |
| Continuous Current (NO) [A] | 630 | 630 | |
| Intermittent Current (NO) [A] | 693 | 693 | |
| Continuous Current (NO) [A] | 630 | 630 | |
| Intermittent Current (NO) [A] | 693 | 693 | |
| Continuous Current (HO) [A] | 596 | 596 | |
| Intermittent Current (HO) [A] | 894 | 894 | |
| Continuous Current (HO) [A] | 570 | 570 | |
| Intermittent Current (HO) [A] | 855 | 855 | |
| Calculated Gross Weight [kg] | 277.3 | ||
| Calculated Net Weight [kg] | 277 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-302P560T7E00H2XGC | ||
| Modelcode02 | XXXSXXXXA0BRC4XXXD0 | ||
| Delivering plant | ERR01 | ERR01 | |
| NB: F-frame platform available | UNTIL DECEMBER 31, 2025 | UNTIL DECEMBER 31, 2025 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC300SERIES EN 2024.pdf | 44 Mbytes |
|
| PDF CATALOG DANFOSS FC302 EN.pdf | 5 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
