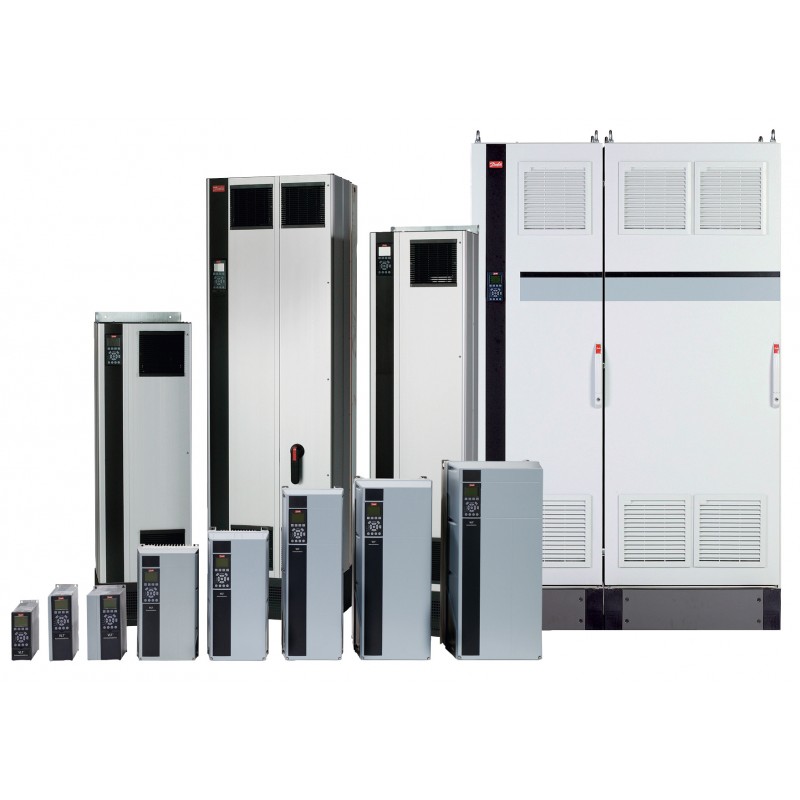

134H0712 DANFOSS DRIVES VLT Automation Drive FC-300
134H0712
DANFOSS DRIVES
VLT Automation Drive FC-300
Frequency converterFC-302P4K0T5E21H2XGX3XXSXXXXAXBKCXXXXDX VLT® AutomationDrive FC-302(P4K0) 4.0 KW / 5.0 HP, Three phase, 380 - 500 VAC, IP21 / Type 1RFI FilterNo brake chopperGraphical Loc. Cont. PanelNot coated PCB, Mains Disconnect + FuseLatest release std. SW.Frame: A2No A Option, MCB-101 General purp. I/ONo C1 option, No D optionOther options according to Model code
VLT AUTOMATIONDRIVE FC 302 - DANFOSS DRIVES > VLT AutomationDrive FC 302 IP54/55 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency converter
FC-302P4K0T5E21H2XGX3XXSXXXXAXBKCXXXXDX
VLT® AutomationDrive FC-302
(P4K0) 4.0 KW / 5.0 HP,
Three phase, 380 - 500 VAC, IP21 / Type 1
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, Mains Disconnect + Fuse
Latest release std. SW.
Frame: A2
No A Option, MCB-101 General purp. I/O
No C1 option, No D option
Other options according to Model code
Product details
| Gross weight | 6.066 Kilogram | ||
| Net weight | 5.22 Kilogram | ||
| Volume | 52.831 Liter | ||
| EAN | 5710107657070 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AutomationDrive FC- | |
| Series | 302 | 302 | |
| Power Rating | P4K0 | (P4K0) 4.0 KW / 5.0 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 5 | 380 - 500 VAC | |
| Enclosure | E21 | IP21 / Type 1 | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | 3 | Mains Disconnect + Fuse | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BK | MCB-101 General purp. I/O | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | A2 | A2 | |
| Typecode Part 1 | FC-302P4K0T5E21H2XGX | ||
| Typecode Part 2 | 3XXSXXXXAXBKCXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 160% (HO) [KW] | 4 | 4 | |
| Height [mm] | 375,0 | 375,0 | |
| Width w/ no C options [mm] | 90,0 | 90,0 | |
| Width w/ two C options [mm] | 150,0 | 150,0 | |
| Depth [mm] | 207,0 | 207,0 | |
| Depth with Option A/B [mm] | 222,0 | 222,0 | |
| kVA | 6.93 | 6.93 | |
| Power Loss HO [W] | 124 | 124 | |
| Power Loss HO [W] | 124 | 124 | |
| Continuous Current (HO) [A] | 10 | 10 | |
| Intermittent Current (HO) [A] | 16 | 16 | |
| Continuous Current (HO) [A] | 8.2 | 8.2 | |
| Intermittent Current (HO) [A] | 13.1 | 13.1 | |
| Calculated Gross Weight [kg] | 6.066 | ||
| Calculated Net Weight [kg] | 5.22 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-302P4K0T5E21H2XGX | ||
| Modelcode02 | 3XXSXXXXAXBKCXXXXDX | ||
| Delivering plant | ERR01 | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC300SERIES EN 2024.pdf | 44 Mbytes |
|
| PDF CATALOG DANFOSS FC302 EN.pdf | 5 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
