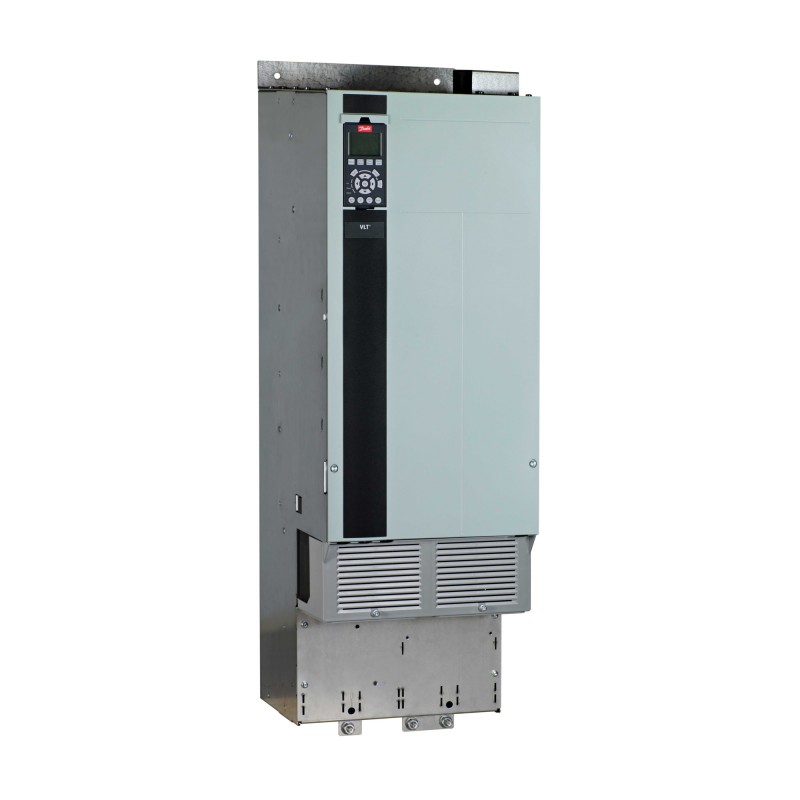

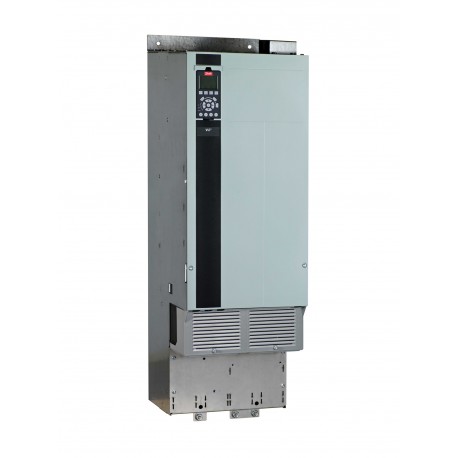

134H0004 DANFOSS DRIVES VLT Automation Drive FC-300
134H0004
DANFOSS DRIVES
VLT Automation Drive FC-300
Frequency converterFC-302N55KT7E20H2XGCXXXSXXXXA0B2CXXXXD0 VLT® AutomationDrive FC-302(N55K) 55 KW / 75 HP, Specific Ratings: 45kW@525- 550V, 60HP@575V, 55kW@690VThree phase, 525 - 690 VAC *, (E20) IP20 / ChassisRFI FilterNo brake chopperGraphical Loc. Cont. PanelCoated PCB, No Mains OptionLatest release std. SW.Frame: D3HPROFIBUS DP MCA 101, MCB-112 PTC Therm. CardNo C1 option, MCB-107 24V DC backupATEX: II (2) G [Ex eb Gb] [Ex db Gb] / II (2) D [Ex tb Db]Other options according to Model code
VLT AUTOMATIONDRIVE FC 302 - DANFOSS DRIVES > VLT AutomationDrive FC 302 IP20 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency converter
FC-302N55KT7E20H2XGCXXXSXXXXA0B2CXXXXD0
VLT® AutomationDrive FC-302
(N55K) 55 KW / 75 HP, Specific Ratings: 45kW@525- 550V, 60HP@575V, 55kW@690V
Three phase, 525 - 690 VAC *, (E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
Frame: D3H
PROFIBUS DP MCA 101, MCB-112 PTC Therm. Card
No C1 option, MCB-107 24V DC backup
ATEX: II (2) G [Ex eb Gb] [Ex db Gb] / II (2) D [Ex tb Db]
Other options according to Model code
Product details
| Gross weight | 70 Kilogram | ||
| Net weight | 65 Kilogram | ||
| Volume | 228.095 Liter | ||
| EAN | 5710107649655 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AutomationDrive FC- | |
| Series | 302 | 302 | |
| Power Rating | N55K | (N55K) 55 KW / 75 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 7 | 525 - 690 VAC * | |
| Possible rating issue | WARN01 | Possible Rating Issue: | |
| Enclosure | E20 | (E20) IP20 / Chassis | |
| RFI Filter | H2 | RFI Filter | |
| Brake - Safe Stop | X | No brake chopper | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | A0 | PROFIBUS DP MCA 101 | |
| B Option | B2 | MCB-112 PTC Therm. Card | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | D0 | MCB-107 24V DC backup | |
| Frame Size | D3H | D3H | |
| Typecode Part 1 | FC-302N55KT7E20H2XGC | ||
| Typecode Part 2 | XXXSXXXXA0B2CXXXXD0 | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | 55 | 55 | |
| Power 110% (NO) [KW] | 75 | 75 | |
| Height [mm] | 909,0 | 909,0 | |
| Height w/ Regen/Loadshare [mm] | 1004,0 | 1004,0 | |
| Width w/ no C options [mm] | 250,0 | 250,0 | |
| Depth [mm] | 375,0 | 375,0 | |
| Depth with Option A/B [mm] | 375,0 | 375,0 | |
| kVA | 87.2 | 87.2 | |
| Power Loss NO [W] | 1162 | 1162 | |
| Power Loss NO [W] | 1204 | 1204 | |
| Power Loss HO [W] | 1098 | 1098 | |
| Power Loss HO [W] | 1057 | 1057 | |
| Continuous Current (NO) [A] | 90 | 90 | |
| Intermittent Current (NO) [A] | 99 | 99 | |
| Continuous Current (NO) [A] | 86 | 86 | |
| Intermittent Current (NO) [A] | 94.6 | 94.6 | |
| Continuous Current (HO) [A] | 76 | 76 | |
| Intermittent Current (HO) [A] | 114 | 114 | |
| Continuous Current (HO) [A] | 73 | 73 | |
| Intermittent Current (HO) [A] | 110 | 110 | |
| ATEX Marking 1 | ATEX: II (2) G [Ex eb Gb] [Ex | ATEX: II (2) G [Ex eb Gb] [Ex | |
| ATEX Marking 2 | db Gb] / II (2) D [Ex tb Db] | db Gb] / II (2) D [Ex tb Db] | |
| Power Rating at 525-550V | 45kW | 45kW | |
| Power Rating at 575V | 60HP | 60HP | |
| Power Rating at 690V | 55kW | 55kW | |
| Calculated Gross Weight [kg] | 62.3 | ||
| Calculated Net Weight [kg] | 62 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-302N55KT7E20H2XGC | ||
| Modelcode02 | XXXSXXXXA0B2CXXXXD0 | ||
| Delivering plant | ERR01 | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC300SERIES EN 2024.pdf | 44 Mbytes |
|
| PDF CATALOG DANFOSS FC302 EN.pdf | 5 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
