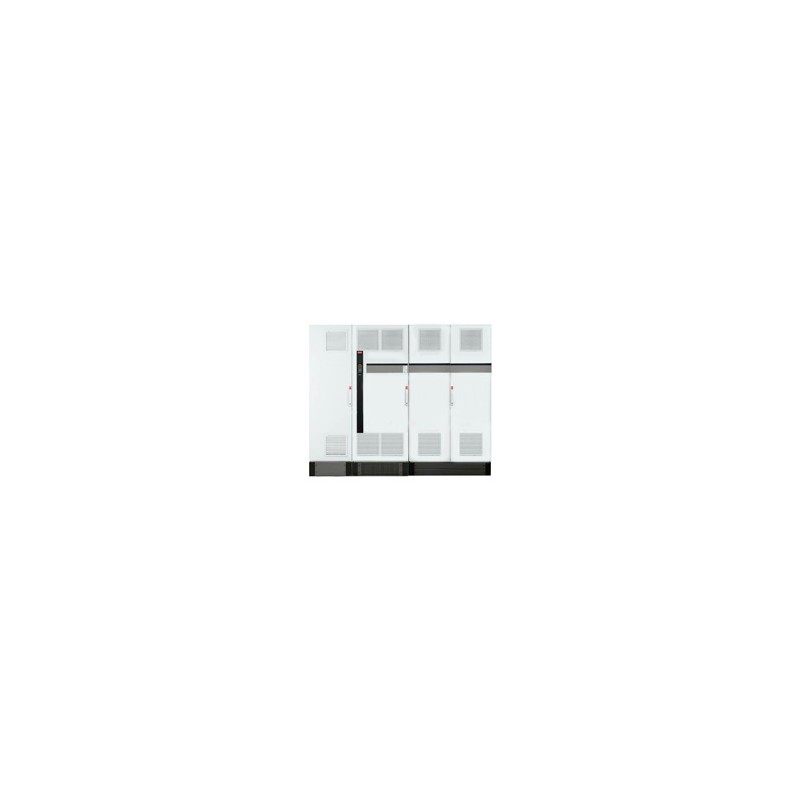

134F0087 DANFOSS DRIVES VLT Automation Drive FC-300
134F0087
DANFOSS DRIVES
VLT Automation Drive FC-300
Frequency converterFC-302P1M2T7R5XBLDGC3NLSXXXXANBRC4RXXD0 VLT® AutomationDrive FC-302(P1M2) 1.2 MW / 1600 HP, 1000kW@525- 550V, 1350HP@575V, 1200kW@690VThree phase, 525 - 690 VAC *, IP54+Heat+Light 230V Pwr12 Pulse+NAMUR+RCD+A2 RFISafe Stop + Pilz + BrakeGraphical Loc. Cont. PanelCoated PCB, Mains Disconnect + FuseLatest release std. SW.Frame: F13EtherNet/IP MCA 121, MCB-102 Encoder OptionMCB-113 Ext. Relay Card, MCB-107 24V DC backupOther options according to Model code
VLT AUTOMATIONDRIVE FC 302 - DANFOSS DRIVES > VLT AutomationDrive FC 302 IP20 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency converter
FC-302P1M2T7R5XBLDGC3NLSXXXXANBRC4RXXD0
VLT® AutomationDrive FC-302
(P1M2) 1.2 MW / 1600 HP, 1000kW@525- 550V, 1350HP@575V, 1200kW@690V
Three phase, 525 - 690 VAC *, IP54+Heat+Light 230V Pwr
12 Pulse+NAMUR+RCD+A2 RFI
Safe Stop + Pilz + Brake
Graphical Loc. Cont. Panel
Coated PCB, Mains Disconnect + Fuse
Latest release std. SW.
Frame: F13
EtherNet/IP MCA 121, MCB-102 Encoder Option
MCB-113 Ext. Relay Card, MCB-107 24V DC backup
Other options according to Model code
Product details
| Gross weight | 1246.3 Kilogram | ||
| Net weight | 1246 Kilogram | ||
| EAN | 5710107397877 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AutomationDrive FC- | |
| Series | 302 | 302 | |
| Power Rating | P1M2 | (P1M2) 1.2 MW / 1600 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 7 | 525 - 690 VAC * | |
| Possible rating issue | WARN01 | Possible Rating Issue: | |
| Enclosure | R5X | IP54+Heat+Light 230V Pwr | |
| RFI Filter | BL | 12 Pulse+NAMUR+RCD+A2 RFI | |
| Brake - Safe Stop | D | Safe Stop + Pilz + Brake | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | 3 | Mains Disconnect + Fuse | |
| Adaptation A | N | Two 10-16A man motor star | |
| Adaptation B | L | 5A 24V PS + F Com Mot Term | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AN | EtherNet/IP MCA 121 | |
| B Option | BR | MCB-102 Encoder Option | |
| C0 Option MCO | C4 | MCO-305 ( SyncPos) | |
| C1 Option | R | MCB-113 Ext. Relay Card | |
| C Option Software | XX | No software option | |
| D Option | D0 | MCB-107 24V DC backup | |
| Frame Size | F13 | F13 | |
| Typecode Part 1 | FC-302P1M2T7R5XBLDGC | ||
| Typecode Part 2 | 3NLSXXXXANBRC4RXXD0 | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | 1200 | 1200 | |
| Power 110% (NO) [KW] | 1400 | 1400 | |
| Height [mm] | 2280,0 | 2280,0 | |
| Width w/ no C options [mm] | 2802,0 | 2802,0 | |
| Depth [mm] | 607,0 | 607,0 | |
| Depth with Option A/B [mm] | 607,0 | 607,0 | |
| kVA | 1506 | 1506 | |
| Power Loss NO [W] | 18536 | 18536 | |
| Power Loss NO [W] | 19247 | 19247 | |
| Power Loss HO [W] | 16089 | 16089 | |
| Power Loss HO [W] | 16719 | 16719 | |
| Continuous Current (NO) [A] | 1479 | 1479 | |
| Intermittent Current (NO) [A] | 1627 | 1627 | |
| Continuous Current (NO) [A] | 1415 | 1415 | |
| Intermittent Current (NO) [A] | 1557 | 1557 | |
| Continuous Current (HO) [A] | 1317 | 1317 | |
| Intermittent Current (HO) [A] | 1976 | 1976 | |
| Continuous Current (HO) [A] | 1260 | 1260 | |
| Intermittent Current (HO) [A] | 1890 | 1890 | |
| Power Rating at 525-550V | 1000kW | 1000kW | |
| Power Rating at 575V | 1350HP | 1350HP | |
| Power Rating at 690V | 1200kW | 1200kW | |
| Calculated Gross Weight [kg] | 1246.3 | ||
| Calculated Net Weight [kg] | 1246 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-302P1M2T7R5XBLDGC | ||
| Modelcode02 | 3NLSXXXXANBRC4RXXD0 | ||
| Delivering plant | ERR01 | ERR01 | |
| NB: F-frame platform available | UNTIL DECEMBER 31, 2025 | UNTIL DECEMBER 31, 2025 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC300SERIES EN 2024.pdf | 44 Mbytes |
|
| PDF CATALOG DANFOSS FC302 EN.pdf | 5 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
