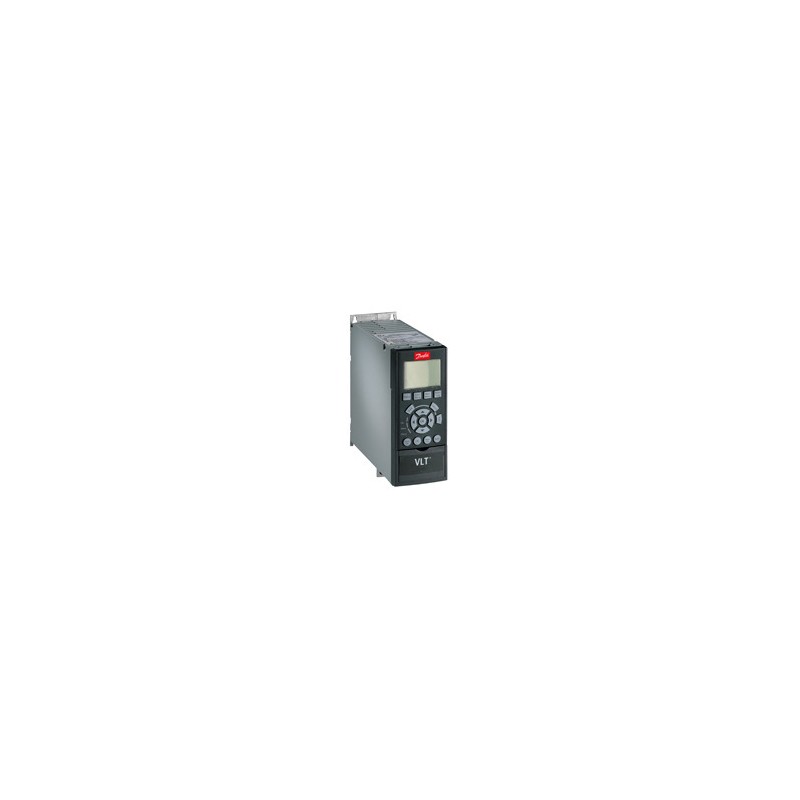

131B4556 FC-301PK55T4Z20H3TXXXXXSXXXXAXBXCXXXXDX DANFOSS DRIVES VLT® AutomationDrive(301) AutomationDrive St..
131B4556
FC-301PK55T4Z20H3TXXXXXSXXXXAXBXCXXXXDX
DANFOSS DRIVES
VLT® AutomationDrive(301) AutomationDrive Standard Frequency Converters
Frequency converterFC-301PK55T4Z20H3TXXXXXSXXXXAXBXCXXXXDX VLT® AutomationDrive FC-3010.55 KW / 0.75 HP, Three phase, 380 - 480 VAC, IP20 / Chassis A1 Frame(H3) RFI Class A1/B (C1)Safe StopNo Loc. Cont. PanelNot coated PCB, No Mains OptionLatest release std. SW.Frame: A1No A Option, No B OptionNo C1 option, No D optionOther options according to Model code
VLT AUTOMATIONDRIVE FC 302 - DANFOSS DRIVES > VLT AutomationDrive FC 302 IP54/55 - DANFOSS DRIVES
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS DRIVES
Best sellers
▲More info
▲Frequency converter
FC-301PK55T4Z20H3TXXXXXSXXXXAXBXCXXXXDX
VLT® AutomationDrive FC-301
0.55 KW / 0.75 HP,
Three phase, 380 - 480 VAC, IP20 / Chassis A1 Frame
(H3) RFI Class A1/B (C1)
Safe Stop
No Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
Frame: A1
No A Option, No B Option
No C1 option, No D option
Other options according to Model code
Product details
| Gross weight | 3.416 Kilogram | ||
| Net weight | 2.52 Kilogram | ||
| Volume | 21.569 Liter | ||
| EAN | 5702427311121 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | FC- | VLT® AutomationDrive FC- | |
| Series | 301 | 301 | |
| Power Rating | PK55 | 0.55 KW / 0.75 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 - 480 VAC | |
| Enclosure | Z20 | IP20 / Chassis A1 Frame | |
| RFI Filter | H3 | (H3) RFI Class A1/B (C1) | |
| Brake - Safe Stop | T | Safe Stop | |
| LCP | X | No Loc. Cont. Panel | |
| Coating PCB | X | Not coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AX | No A Option | |
| B Option | BX | No B Option | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | X | No C1 option | |
| C Option Software | XX | No software option | |
| D Option | DX | No D option | |
| Frame Size | A1 | A1 | |
| Typecode Part 1 | FC-301PK55T4Z20H3TXX | ||
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 160% (HO) [KW] | 0.55 | 0.55 | |
| Height [mm] | 200,0 | 200,0 | |
| Width w/ no C options [mm] | 75,0 | 75,0 | |
| Depth [mm] | 207,0 | 207,0 | |
| Depth with Option A/B [mm] | 222,0 | 222,0 | |
| kVA | 1.25 | 1.25 | |
| Power Loss HO [W] | 42 | 42 | |
| Power Loss HO [W] | 42 | 42 | |
| Continuous Current (HO) [A] | 1.8 | 1.8 | |
| Intermittent Current (HO) [A] | 2.88 | 2.88 | |
| Continuous Current (HO) [A] | 1.6 | 1.6 | |
| Intermittent Current (HO) [A] | 2.56 | 2.56 | |
| Calculated Gross Weight [kg] | 3.416 | ||
| Calculated Net Weight [kg] | 2.52 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Plant from Orderline | B901 | B901 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Modelcode01 | FC-301PK55T4Z20H3TXX | ||
| Modelcode02 | XXXSXXXXAXBXCXXXXDX | ||
| Delivering plant | ERR01 | ERR01 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG DANFOSS FC300SERIES EN 2024.pdf | 44 Mbytes |
|
| PDF CATALOG DANFOSS FC302 EN.pdf | 5 Mbytes |
|
| PDF CATALOG DANFOSS GENERAL EN.pdf | 2 Mbytes |
|
