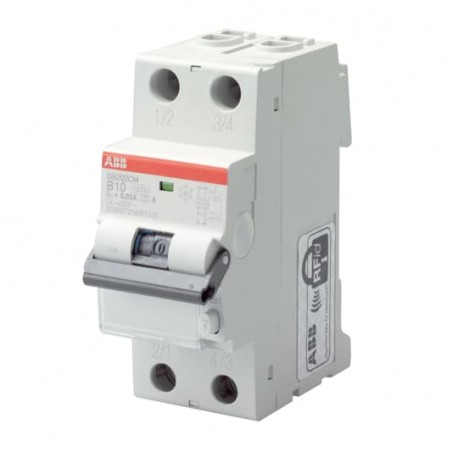

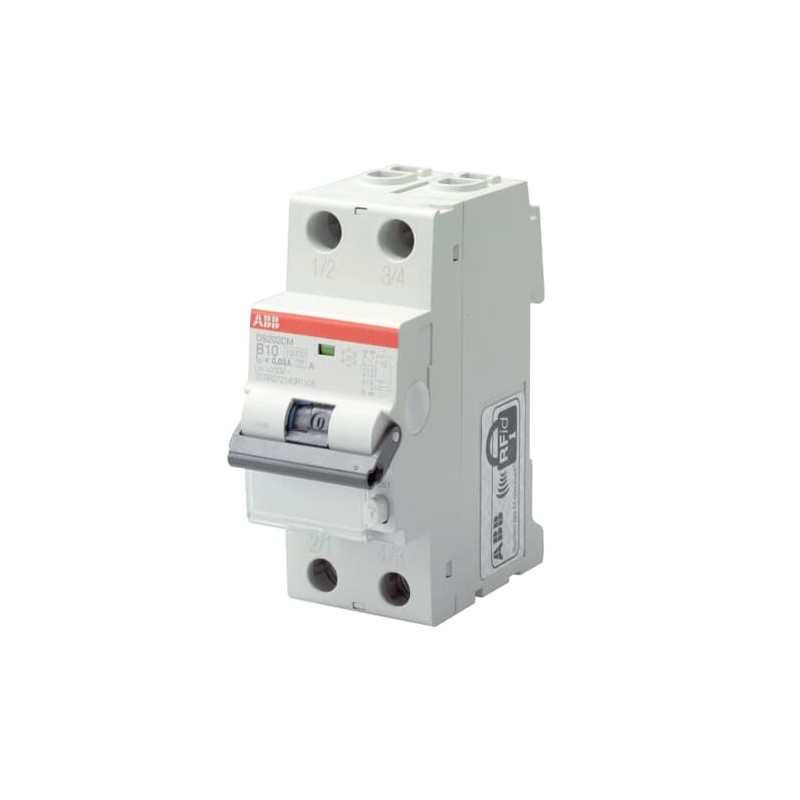

2CSR272440R1254 ABB Combined switch DS200M 2p C 25A A APR 10kA 30mA
2CSR272440R1254
ABB
Combined switch DS200M 2p C 25A A APR 10kA 30mA
DS202C M C25 APR30 Residual Current Circuit Breaker with Overcurrent Protection
Tertiary / Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- DS202C M C25 APR30
- Product ID:
- 2CSR272440R1254
- EAN:
- 8012542122159
- Catalog Description:
- DS202C M C25 APR30 Residual Current Circuit Breaker with Overcurrent Protection
- Long Description:
- The DS202C series RCBO is a 2P in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents. Provides an optimal trade-off between safety and continuity of service, thanks to the resistance to unwanted trippings. Protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA). Protection and isolation of resistive and inductive loads.
+
–
Accessories
| Identifier | Description | Type | Qty | Unit Of Measure |
|---|---|---|---|---|
| 2CDS200912R0001 | S2C-H6R Auxiliary Contact | S2C-H6R | 1 | piece |
| 2CDS200922R0001 | S2C-S/H6R Signal / Auxiliary Contact | S2C-S/H6R | 1 | piece |
| 2CDS200946R0001 | S2C-H6-11R Auxiliary Contact | S2C-H6-11R | 1 | piece |
| 2CDS200946R0002 | S2C-H6-20R Auxiliary Contact | S2C-H6-20R | 1 | piece |
| 2CDS200946R0003 | S2C-H6-02R Auxiliary Contact | S2C-H6-02R | 1 | piece |
| 2CSR201997R0013 | DS2C-CM Motor operating device | DS2C-CM | 1 | piece |
| 2CSS200910R0005 | S2C-OVP1 Overvoltage release | S2C-OVP1 | 1 | piece |
| 2CSS200911R0002 | S2C-UA 24 AC Undervoltage release | S2C-UA 24 AC | 1 | piece |
| 2CSS200911R0003 | S2C-UA 48 AC Undervoltage release | S2C-UA 48 AC | 1 | piece |
| 2CSS200911R0004 | S2C-UA 110 AC Undervoltage release | S2C-UA 110 AC | 1 | piece |
| 2CSS200911R0005 | S2C-UA 230 AC Undervoltage release | S2C-UA 230 AC | 1 | piece |
| 2CSS200933R0011 | F2C-A1 Shunt trip | F2C-A1 | 1 | piece |
| 2CSS200933R0012 | F2C-A2 Shunt trip | F2C-A2 | 1 | piece |
| 2CSS200993R0005 | S2C-OVP2 Overvoltage release | S2C-OVP2 | 1 | piece |
| 2CSS200999R0001 | S2C-EST Plug-in base | S2C-EST | 1 | piece |
Technical
- Standards:
- IEC 61009-1
IEC 61009-2-1
EN 61009-1
EN 61009-2-1
- Tripping Characteristic:
- C
- Type of Residual Current:
- A type
- Rated Voltage (Ur):
- 230-240 V AC
- Rated Operational Voltage:
- 230 / 240 V AC
- Rated Insulation Voltage (Ui):
- 500 V
- Rated Impulse Withstand Voltage (Uimp):
- 4 kV
- Input Voltage Type:
- AC
- Rated Current (In):
- 25 A
- Rated Residual Current:
- 30 mA
- Rated Short-Circuit Capacity (Icn):
- 10 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- 10 kA
- Rated Conditional Short-Circuit Current (Inc):
- 10 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics):
- 10 kA
- Maximum Surge Current:
- 3 kA
- Leakage Current Type:
- A
- Frequency (f):
- 50/60 Hz
- Rated Frequency (f):
- 50/60 Hz
- Power Loss:
- 5.5 W
- Power Supply Connection:
- Arbitrary
- Energy Limiting Class:
- 3
- Electrical Endurance:
- 10000 cycle
- Mechanical Endurance (Nendu):
- 20000 cycle
- Number of Poles:
- 2
- Number of Protected Poles:
- 2
- Operating Characteristic:
- Instantaneous (APR High Immunity)
- Overvoltage Category:
- III
- Position of Neutral Terminals:
- Right
Left
- Earthing Switch Type:
- Short-Time Delayed
- Release Type:
- C
- Options Provided:
- None
- Accessories Available:
- Yes
- Connecting Capacity:
- Busbar 10 mm²
Rigid 25 ... 25 mm²
Flexible 25 ... 25 mm²
- Rated Cross-Section:
- 4 - Multi-Wired 1...25 mm²
1 - Solid-Core 25...25 mm²
Environmental
- Ambient Temperature:
- -25...55 °C
- Ambient Air Temperature:
- Operation -25...55 °C
- Degree of Protection:
- IP2X
- Pollution Degree:
- 2
- RoHS Status:
- Following EU Directive 2011/65/EU
- Environmental Information:
- 9AKK107680A8583
Technical UL/CSA
- Short-Circuit Current Rating (SCCR):
- 0.03 A
Dimensions
- Width in Number of Modular Spacings:
- 2
- Product Net Width:
- 0.035m
- Product Net Height:
- 0.085m
- Product Net Depth / Length:
- 0.069m
- Product Net Weight:
- 0.225kg
- Built-In Depth (t2):
- 69 mm
Container Information
- Package Level 1 Units:
- box 1 piece
- Package Level 1 Width:
- 106 mm
- Package Level 1 Height:
- 40 mm
- Package Level 1 Depth / Length:
- 80 mm
- Package Level 1 Gross Weight:
- 0.239 kg
- Package Level 1 EAN:
- 8012542122159
- Package Level 2 Units:
- box 5 piece
- Package Level 2 Width:
- 0.200 m
- Package Level 2 Height:
- 0.106 m
- Package Level 2 Depth / Length:
- 0.080 m
- Package Level 2 Gross Weight:
- 1.125 kg
- Package Level 2 EAN:
- 8012542122166
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85363030
- Replacement Product ID (NEW):
- 2CSR772440R1254
- Country of Origin:
- Italy (IT)
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 9AKK106713A5589
- Environmental Information:
- 9AKK107680A8583
- Instructions and Manuals:
- 9AKK106354A0766
- RoHS Information:
- 2CSC422002K2701
Popular Downloads
- Data Sheet, Technical Information:
- 9AKK107991A8329
- Instructions and Manuals:
- 9AKK106354A0766
- EPLAN Macro:
- 9AKK106930A1235
Classifications
- ETIM 7:
- EC000905 - Earth leakage circuit breaker
- ETIM 8:
- EC000905 - Earth leakage circuit breaker
- EPLAN Catalog Tree:
- Electrical engineering / Protection devices / Ground fault current circuit breaker
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85363030
- eClass:
- V11.0 : 27142207
- Object Classification Code:
- F
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF MINIATURE CIRCUIT BREAKERS EN .pdf | 37 Mbytes |
|
| 2CSR272440R1254 EN_2CSR272440R1254.pdf | 104 Kbytes |
|
