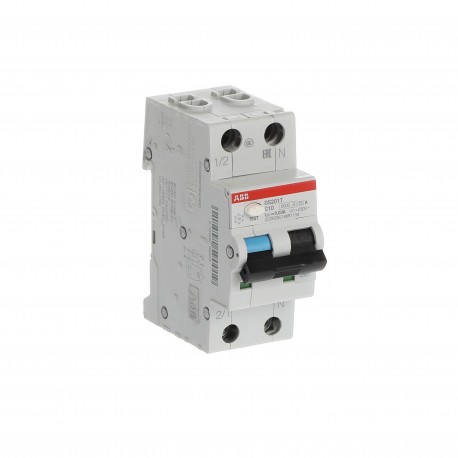

2CSR255180R1254 ABB DS200 Circuit Breaker 1p + N C 25A A 10kA 30mA
2CSR255180R1254
ABB
DS200 Circuit Breaker 1p + N C 25A A 10kA 30mA
I.com.DS200 1p+N C 25A A 10kA 30mA
Residual Current Circuit Breaker with Overcurrent Protection DS201 - 1P+N - Type A - 30 mA - 25 A - C
Circuit breakers and fuses > Earth leakage circuit breaker
Tertiary / Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108470A2163 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 75.20 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| Sustainable Material Content in Packaging (wt. %) | Recycled Cardboard - 98 % |
| Recycled Paper - 00 % | |
| Chemically Recycled Polymer - 00 % | |
| Extended Product Lifetime | Product Durability |
| End Of Life Disassembling Instructions | 9AKK108469A2268 |
| Environmental Product Declaration - EPD | 9AKK108468A5756 |
| Technical | |
| Type of Residual Current | Type A |
| Test Voltage (Ut) | 170 ... 264 V |
| Dielectric Test Voltage | 2 kV |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 10 kA |
| Rated Residual Breaking Capacity (IΔm) | EN 61009-1 6000 A |
| IEC 61009-1 6000 A | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 7.5 kA |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 6 kA |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF |
| Energy Limiting Class | 3 |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 1 |
| Number of Poles | 1P+N |
| Number of Modular Spacings per DIN Rail | 2 |
| Fault Indication | Blue Flag on Toggle |
| Operating Characteristic | Instantaneous |
| Position of Neutral Terminals | Right |
| Tightening Torque | 2.8 N·m |
| Accessory Type | Auxiliary contact, Signal contact / auxiliary contact, Shunt trip, Auxiliary contact for bottom fitting, Overvoltage release, Motor operating device |
| Actuator Type | Toggle - Insulation group II, Black RAL 9005, sealable in ON-OFF positions |
| Earthing Switch Type | Undelayed |
| Housing Type | Insulation group I - II, RAL 7035 |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Accessories Available | Yes |
| Number of Batteries | 0 |
| Connecting Capacity | Busbar 10 ... 10 mm² |
| Stranded 0.75 ... 25 mm² | |
| Flexible with Ferrule 0.75 ... 16 mm² | |
| Flexible 0.75 ... 16 mm² | |
| Rated Cross-Section | 1 - Solid-Core 0.75-25 mm² |
| 4 - Multi-Wired 0.75-16 mm² | |
| Wire Stripping Length | 12 mm |
| Terminal Type | Screw Terminals |
| Electrical | |
| Tripping Characteristic | C |
| Rated Operational Voltage | acc. to IEC 60898-1 240 V |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 25 A |
| Rated Residual Current | 30 mA |
| Rated Short-Circuit Capacity | 6 kA |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | Average per Pole 4.1 W |
| Phase Pole 5.5 W | |
| Neutral Pole 2.6 W | |
| Total 8.1 W | |
| Overvoltage Category | III |
| Material Compliance | |
| RoHS Declaration | 9AKK106713A5588 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20211115 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25 … 55 °C |
| Reference Ambient Air Temperature | 30 °C |
| Degree of Protection | IP20 |
| IP40 | |
| Pollution Degree | 2 |
| Environmental Conditions | 28 cycles |
| with 55 °C / 90-96 % | |
| and 25 °C / 95-100 % | |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Environmental Information | 2CSC422002K2701 |
| Dimensions | |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 200 g |
| Built-In Depth (t2) | 69 mm |
| Engineering | |
| EPLAN Data | 9AAC554444_EPLAN |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 225 g |
| E-Number (Finland) | 3211158 |
| E-Number (Sweden) | 2100435 |
| Certificates and Declarations | |
| ABS Certificate | 9AKK107991A2823 |
| CB Certificate | 9AKK107492A6060 |
| CCC Certificate | 9AKK107492A6067 |
| Declaration of Conformity - CE | 9AKK106713A5588 |
| DNV GL Certificate | 9AKK107680A3457 |
| 9AKK107680A3456 | |
| EAC Certificate | 9AKK107492A6071 |
| 9AKK107991A7755 | |
| GOST Certificate | 9AKK107992A1640 |
| KEMA Certificate | 9AKK107492A6076 |
| ÖVE Certificate | 9AKK107492A6085 |
| RMRS Certificate | 9AKK107680A3454 |
| 9AKK107680A3455 | |
| SEV Certificate | 9AKK107680A1558 |
| 9AKK107680A1560 | |
| VDE Certificate | 9AKK107492A6092 |
| Installation | |
| Instructions and Manuals | 9AKK107492A6006 |
| Mounting Type | DIN-Rail |
| Mounting Position | Any |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107492A6187 |
| External Classifications and Standards | |
| ETIM 9 | EC000905 - Earth leakage circuit breaker |
| ETIM 10 | EC000905 - Earth leakage circuit breaker |
| UNSPSC | 39121601 |
| eClass | V11.0 : 27142207 |
| IDEA Granular Category Code (IGCC) | 4875 >> Residual current circuit breaker (RCCB) |
| Object Classification Code | F |
| Standards | IEC/EN 61009-1, IEC/EN 61009-2-1 |
