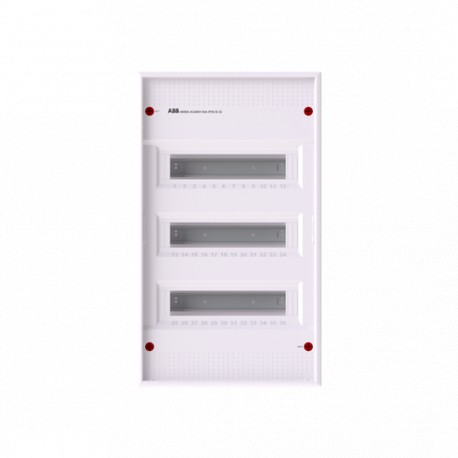

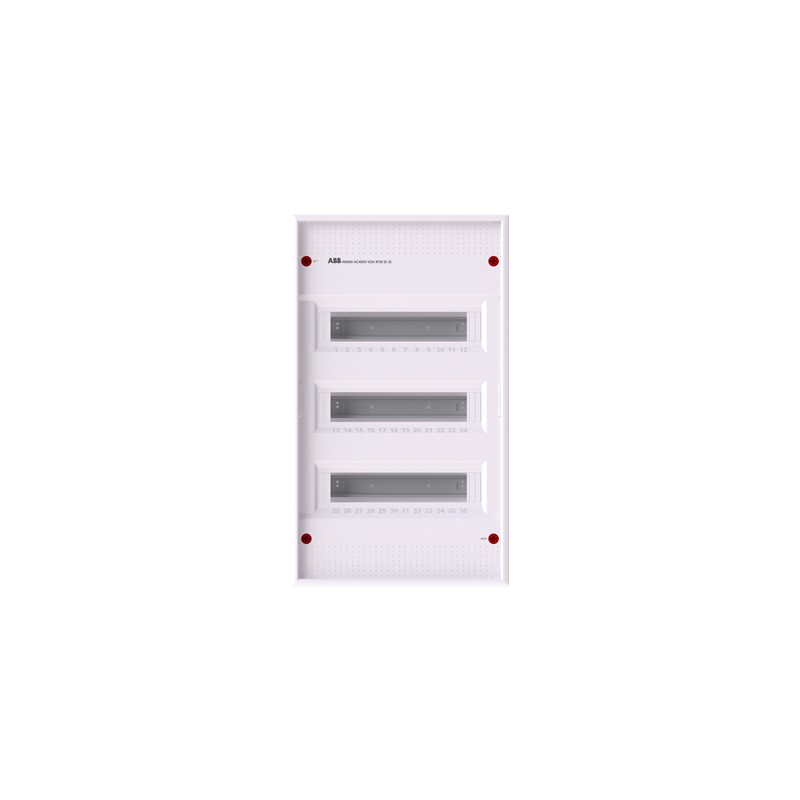

2CPX032565R9999 ABB AK636N3 with rap strips. without p. 36M 3F
2CPX032565R9999
ABB
AK636N3 with rap strips. without p. 36M 3F
Hood-type consumer unit, partly assembled, for the internal use, without door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 60670-24, IK code 7, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 750°C, Untreated, in RAL 9016, enclosure out of thermoplast, without door, in RAL 9016, door opening angle 120 degree, door hinge right or left, cable entry on top via pre-punched, on bottom via pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 578 x 339 x 99, Space units 36, Row distance in mm: 125, covers out of Plastic, Quick sealable connection, with N/PE Quick-terminal, cable fastening rail integrated, Assembled with DIN-rail, device support removable
Residential boxes
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲- Extended Product Type:
- AK636N3
- Product ID:
- 2CPX032565R9999
- EAN:
- 4011617325659
- Catalog Description:
- AK636N3 Hood-type consumer unit , 578 mm x 339 mm x 99 mm, Surface mounting, 36 SU, IP30, Without Door
- Long Description:
- Hood-type consumer unit, partly assembled, for the internal use, without door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 60670-24, IK code 7, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 750°C, Untreated, in RAL 9016, enclosure out of thermoplast, without door, in RAL 9016, door opening angle 120 degree, door hinge right or left, cable entry on top via pre-punched, on bottom via pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 578 x 339 x 99, Space units 36, Row distance in mm: 125, covers out of Plastic, Quick sealable connection, with N/PE Quick-terminal, cable fastening rail integrated, Assembled with DIN-rail, device support removable
Accessories
| Identifier | Description | Type | Qty | Unit Of Measure |
|---|---|---|---|---|
| 2CPX010998R9999 | AZB3P10 Enclosure accessories | AZB3P10 | 1 | piece |
| 2CPX010997R9999 | AZB2 Segregation wall | AZB2 | 1 | piece |
| 2CPX031151R9999 | AZT630 Door | AZT630 | 1 | piece |
| 2CPX031155R9999 | AZT630V Door | AZT630V | 1 | piece |
| 2CPX031159R9999 | AZT630W Transparant door | AZT630W | 1 | piece |
| 2CPX031120R9999 | UZG636 Mounting chassis | UZG636 | 1 | piece |
| 2CPX031416R9999 | UZM630 Mounting plate | UZM630 | 1 | piece |
| 2CPX031118R9999 | UZG612 Mounting chassis | UZG612 | 1 | piece |
| 2CPX031412R9999 | UZT3 Enclosure accessories | UZT3 | 1 | piece |
| 2CPX062385R9999 | ZA3P5 Enclosure accessories | ZA3P5 | 1 | piece |
| 2CPX031420R9999 | UZED1P10 Interior fitting system | UZED1P10 | 1 | piece |
| 2CPX062745R9999 | ZK50BT Terminals | ZK50BT | 1 | piece |
| 2CPX062750R9999 | ZK50B Terminals | ZK50B | 1 | piece |
| 2CPX062751R9999 | ZK51B Terminals | ZK51B | 1 | piece |
| 2CPX062752R9999 | ZK82B Terminals | ZK82B | 1 | piece |
| 2CPX062753R9999 | ZK113B Terminals | ZK113B | 1 | piece |
| 2CPX062754R9999 | ZK144B Terminals | ZK144B | 1 | piece |
| 2CPX062755R9999 | ZK175B Terminals | ZK175B | 1 | piece |
| 2CPX062756R9999 | ZK206B Terminals | ZK206B | 1 | piece |
| 2CPX062757R9999 | ZK51G Terminals | ZK51G | 1 | piece |
| 2CPX062758R9999 | ZK82G Terminals | ZK82G | 1 | piece |
| 2CPX062759R9999 | ZK113G Terminals | ZK113G | 1 | piece |
| 2CPX062760R9999 | ZK144G Terminals | ZK144G | 1 | piece |
| 2CPX062761R9999 | ZK175G Terminals | ZK175G | 1 | piece |
| 2CPX062762R9999 | ZK206G Terminals | ZK206G | 1 | piece |
| 2CPX062763R9999 | ZK10P10 Terminals | ZK10P10 | 1 | piece |
| 2CPX063163R9999 | ZK237B Terminals | ZK237B | 1 | piece |
| 2CPX063165R9999 | ZK237G Terminals | ZK237G | 1 | piece |
| 2CPX063164R9999 | ZK268B Terminals | ZK268B | 1 | piece |
| 2CPX063166R9999 | ZK268G Terminals | ZK268G | 1 | piece |
Technical
- Standards:
- DIN 43871
- Rated Operational Voltage:
- Maximum 400 V
- Rated Current (In):
- 63 A
- Power Loss:
- Δt = 30K 51 W
- Number of Rows:
- 3
- Closure Type:
- Push Button
- Configuration Type:
- Assembled with DIN-rail
- Cover Plate Type:
- Cover
- Enclosure Type:
- Hood-type consumer unit
- Mounting Type:
- Surface mounting
- Door Type:
- Without Door
- Surface Finishing:
- Untreated
- Housing Material:
- Plastic
- Material:
- Thermoplast
- Cover Style:
- with Notch
- DIN Place Units:
- 36
- RAL Number:
- RAL 9016 - Traffic White
- Color:
- Traffic white
Material Compliance
- RoHS Information:
- 2CPC100009X0201
2CPC100022X0202
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date:
- 20230918
- REACH Declaration:
- 2CPC100005X0201
- REACH Information:
- False - does not contains substances > 0.1 mass percentage
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Environmental
- Degree of Protection:
- IP30
- Protection Class:
- Isolated (Class II)
Dimensions
- Width in Number of Modular Spacings:
- 12
- Product Net Width:
- 339mm
- Product Net Height:
- 578mm
- Product Net Depth / Length:
- 99mm
- Product Net Weight:
- 2.697kg
- Built-In Depth (t2):
- 55 mm
- Dimension Diagram:
- 2CPC000008D0201
Ordering
- Package Level 1 Units:
- pack 1 piece
- Package Level 1 Gross Weight:
- 2.805 kg
Certificates and Declarations
- Declaration of Conformity - CE:
- 2CPC100009X0201
2CPC100022X0202
Installation
- Instructions and Manuals:
- 2CPC140006M5601
Popular Downloads
- Data Sheet, Technical Information:
- 2CPC000001C0101
2CPC000002C0101
- Building Information Modeling – BIM:
- 9AKK108468A3369
Classifications
- ETIM 8:
- EC000214 - Small distribution board
- ETIM 9:
- EC000214 - Small distribution board
- WEEE Category:
- 4. Large Equipment (Any External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85371098
- eClass:
- V11.0 : 27142409
- Object Classification Code:
- U
