ABBResidential boxes2CPX031811R9999 ABB AK636M multimedia with 3F patch without p.

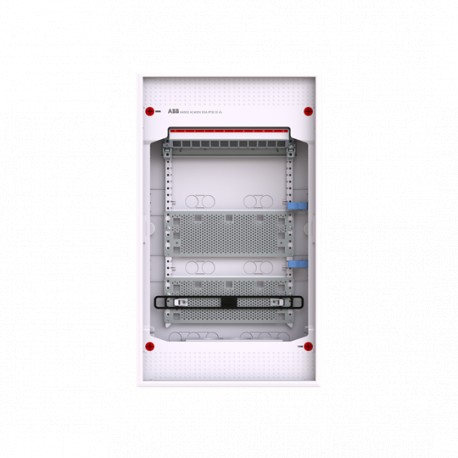

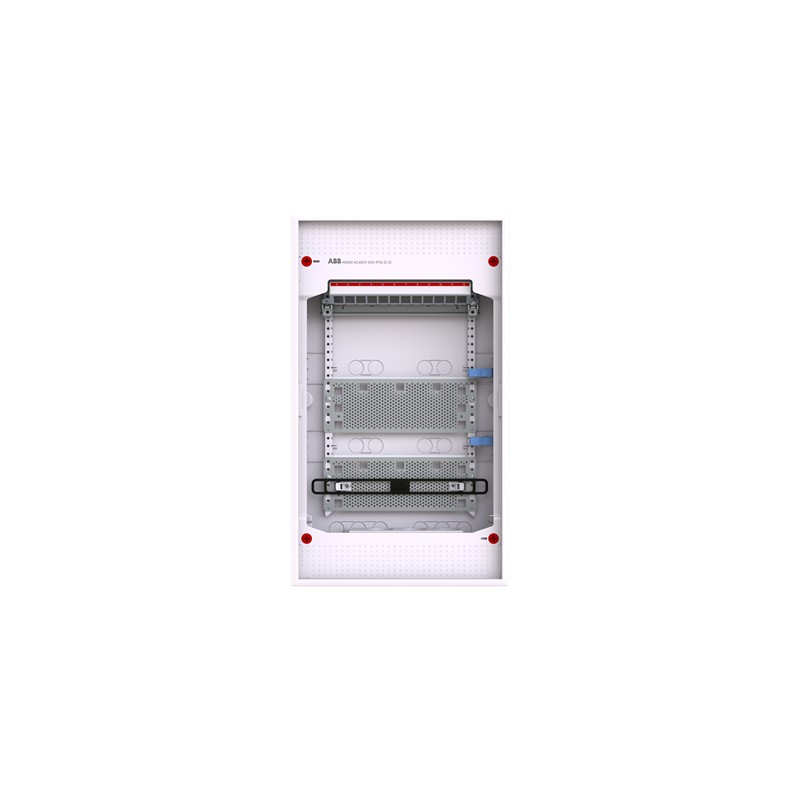

ABB 2CPX031811R9999 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CPX031811R9999 ABB AK636M multimedia with 3F patch without p.

Code: 2CPX031811R9999

Manufacturer: ABB

Description:

AK636M multimedia with 3F patch without p.
Multimedia unit AK600 Media, Surface mounting, 48 modules, 3 row(s), IP00, Door: Without Door, Dimensions: 578 mm x 339 mm x 99 mm

Categories:

  • Distribution boards > Small distribution board
  • ABB > Residential boxes

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 91,25 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical
Number of Rows3
Closure TypePush Button
Configuration Typeassembled with perforated sheet steel mounting plate, patchpanel an rotatable tripple socket outlet
Cover Plate TypeCover
Enclosure TypeMultimedia unit
Door TypeWithout Door
Accessories AvailableYes
DIN Place Units48
Terminal TypeNo Terminals
Electrical
Rated Operational VoltageMaximum 400 V
Power LossΔt = 30K 118 W
Design
Surface FinishingUntreated
Housing MaterialPlastic
MaterialThermoplast
Cover Stylewith Notch
RAL NumberRAL 9016 - Traffic White
ColorTraffic white
Number of Modules48
Material Compliance
RoHS Declaration2CPC100009X0201
2CPC100022X0202
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903;20230921
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Degree of ProtectionIP00
Protection ClassIsolated (Class II)
Dimensions
Width in Number of Modular Spacings12
Product Net Width339 mm
Product Net Height578 mm
Product Net Depth / Length99 mm
Product Net Weight2.821 kg
Built-In Depth (t2)58 mm
Dimension Diagram2CPC000004D0201
2CPC000009D0201
Engineering
Building Information Modeling – BIM9AKK108468A3369
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight2.934 kg
Certificates and Declarations
Declaration of Conformity - CE2CPC100009X0201
2CPC100022X0202
Installation
Instructions and Manuals2CPC140004M5601
Mounting TypeSurface mounting
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC000214 - Small distribution board
ETIM 10EC000214 - Small distribution board
eClassV11.0 : 27142409
Object Classification CodeU
StandardsDIN 43871

ETIM for 2CPX031811R9999 Distribution boards (EC000214)

Feature nameMounting method (EF000003)
Feature valueOther
Feature nameNumber of rows (EF000266)
Feature value3
Feature nameWidth in number of modular spacings (EF002950)
Feature value12
Feature nameType of covering (EF000339)
Feature valueCover
Feature nameCover model (EF009212)
Feature valueWith notch
Feature nameTransparent cover/door (EF006244)
Feature valueNo
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameHeight (EF000040)
Feature value578 mm
Feature nameWidth (EF000008)
Feature value339 mm
Feature nameDepth (EF000049)
Feature value99 mm
Feature nameBuilt-in depth (EF000218)
Feature value58 mm
Feature nameBuilt-in height (EF000332)
Feature value531 mm
Feature nameBuilt-in width (EF000846)
Feature value255 mm
Feature nameInner depth (EF001131)
Feature value55 mm
Feature nameEarthing terminal block (EF015776)
Feature valueNo
Feature nameNeutral terminal block (EF015777)
Feature valueNo
Feature nameDIN-rail (EF001134)
Feature valueYes
Feature nameWith mounting plate (EF000118)
Feature valueYes
Feature nameExtension possible (EF001088)
Feature valueYes
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameColour (EF000007)
Feature valueWhite
Feature nameRAL-number (EF000116)
Feature value9016
Feature nameDegree of protection (IP) (EF005474)
Feature valueOther
Feature nameWith lock (EF006306)
Feature valueNo
Feature nameType of closure (EF004462)
Feature valuePush button
Feature nameSignal passing door (EF015941)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
PDF TECHNICAL SHEET RESIDENTIAL BOXES EN
17 Mbytes
